ASUS Pro WS TRX50-SAGE WIFI CEB Workstation Motherboard
DHPROWSTRX50SAGEW
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Get Answers to All Your Shipping Questions with our Expert Help Center
-
Customer Support
Get Reliable and Efficient Customer Support at Every Step of Your Purchase Process.
-
FAQ’s
Unlock Answers to All Your Questions with our Comprehensive FAQ Section.
-
Contact Us
Get in Touch Effortlessly Through Chat, Email, or Phone - We're Here to Help!
See Innovation in Action
Watch as advanced features, intuitive design, and exceptional performance come together in real time.
Product Details
Build a no‑compromise creator or compute workstation with the ASUS Pro WS TRX50‑SAGE WIFI (SSI CEB). Purpose‑built for AMD’s sTR5 platform, it drives Ryzen™ Threadripper™ PRO 7000 WX‑Series and Threadripper™ 7000 CPUs with a robust 36‑stage power design, active VRM cooling, and dual‑PSU readiness. Get enterprise I/O—PCIe® 5.0 x16 expansion, 10GbE + 2.5GbE, Wi‑Fi 7, front & rear USB‑C 20Gbps, SlimSAS—and real admin tools with IPMI support and ASUS Control Center Express. Four ECC R‑DIMM DDR5 slots (up to 1 TB) and triple M.2 with heatsinks keep high‑throughput workflows fast and stable, 24/7.
Featured Callouts
- • Power for HEDT & Pro: (18×2)+3+4+4 power stages, ProCool II connectors, dual‑PSU–ready layout.
- • Thermals that scale: Active VRM heatsinks, hidden heatpipes, extended chipset & M.2 cooling.
- • Pro I/O toolkit: 10GbE + 2.5GbE, Wi‑Fi 7, SlimSAS, USB 20Gbps Type‑C front & rear, USB4‑ready header.
- • Admin & uptime: ASUS IPMI expansion card support + Control Center Express, 24/7 validation.
- • Multi‑GPU & accelerators: Five x16 slots (Gen5/Gen4 mix) with onboard PCIe power for stability.
Key Features
- Platform: AMD TRX50 chipset, sTR5 socket—Threadripper™ / Threadripper™ PRO ready.
- Memory: 4× DDR5 ECC R‑DIMM, quad‑channel, up to 1 TB (EXPO + ECC support).
- Expansion: 5× PCIe x16 (3× Gen5 x16, 2× Gen4 x16) for GPUs, storage, and I/O cards.
- Storage: 3× M.2 PCIe (heatsinked), 2× SlimSAS NVMe support, 4× SATA III.
- Networking: 10GbE + 2.5GbE (RJ‑45), Wi‑Fi 7 (802.11be) + Bluetooth® 5.4.
- USB: Front & rear USB‑C 20Gbps; USB4‑ready via onboard header (expansion card required).
- Manageability: Server‑grade IPMI expansion card support; ASUS Control Center Express.
- Reliability: Around‑the‑clock validation (up to 45 °C / 80% RH) for 24/7 operation.

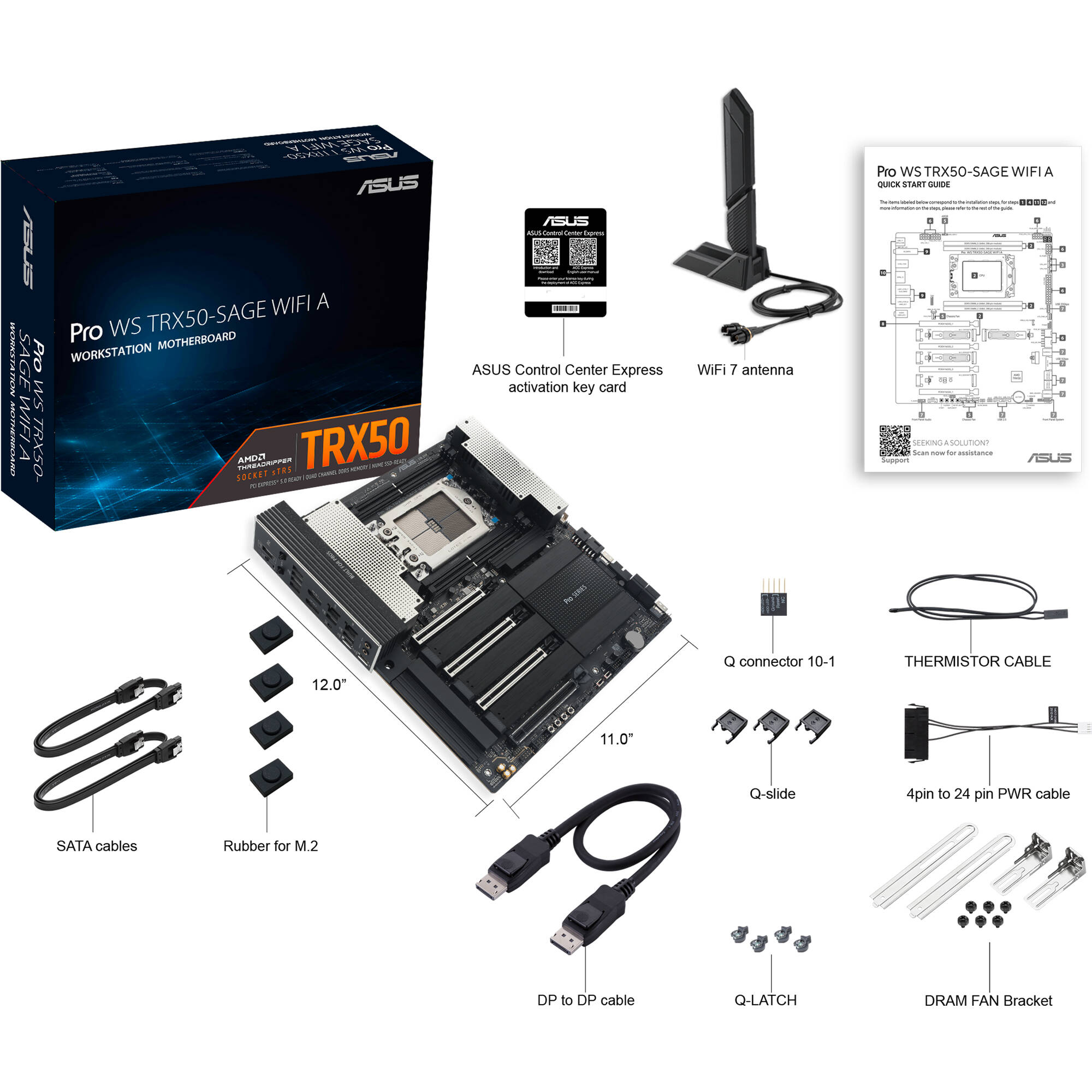

What’s In The Box
- ASUS Pro WS TRX50‑SAGE WIFI (SSI CEB) Motherboard
- 2 × SATA III Cables
- Thermistor Cable Pack
- DisplayPort Cable
- 4‑Pin to 24‑Pin ATX Power Connector
- ASUS Wi‑Fi Q‑Antenna
- 2 × M.2 Q‑Latch (2‑in‑1) & 2 × M.2 Rubber Packages
- Fan Bracket, Q‑Connector
- Limited 3‑Year Manufacturer Warranty
Specifications
Platform
| Chipset | AMD TRX50 |
| Socket | sTR5 |
| CPU Support | Ryzen™ Threadripper™ / Threadripper™ PRO 7000 |
| Form Factor | SSI CEB (12″ × 11″) |
| OS | Windows 11; Windows 10 (64‑bit) |
Memory
| Slots | 4 × 288‑pin |
| Type | DDR5 ECC R‑DIMM |
| Channels | Quad‑channel |
| Max Capacity | Up to 1 TB |
| Profiles | AMD EXPO |
Expansion
| PCIe x16 | 5 total — 3× Gen5 x16, 2× Gen4 x16 |
| Onboard PCIe Power | 1× 8‑pin + 1× 6‑pin |
Storage
| M.2 | 3 × PCIe (heatsinked) |
| SlimSAS | 2 × NVMe capable |
| SATA | 4 × SATA III 6 Gb/s |
| RAID | 0/1/5/10 (SATA & M.2) |
Connectivity

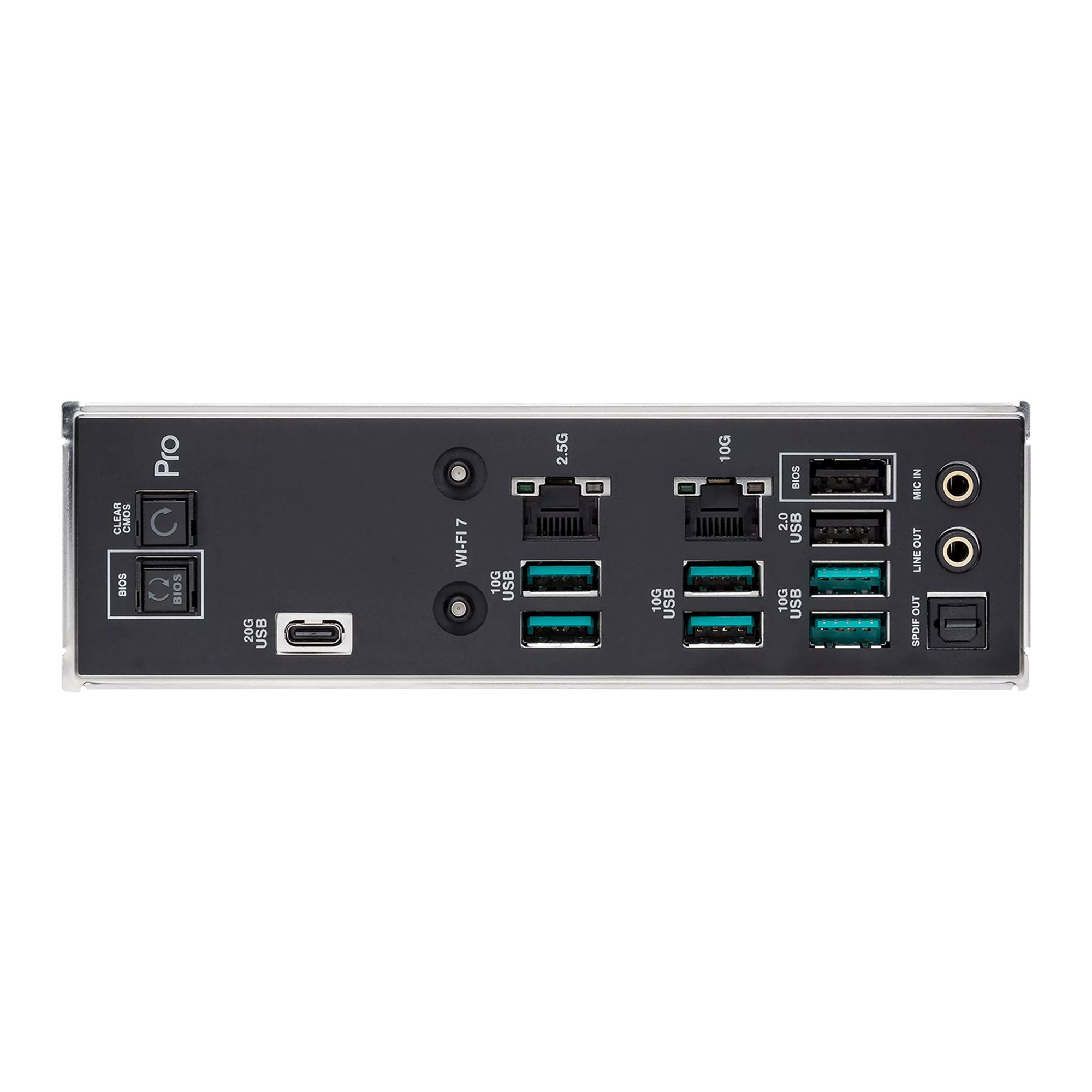

| USB (Rear) | USB‑C 20Gbps; multiple USB‑A incl. Gen2 |
| USB (Headers) | Front USB‑C 20Gbps; USB 3.2 Gen1; USB 2.0 |
| USB4 | Ready (onboard header; expansion card required) |
| Display | DP cable included; CPU‑dependent video |
Networking & Wireless
| Ethernet | 10GbE + 2.5GbE (RJ‑45) |
| Wi‑Fi | Wi‑Fi 7 (802.11be) |
| Bluetooth | Bluetooth® 5.4 |
| IPMI | ASUS IPMI expansion card support |
Power & Cooling
| VRM | 36 power stages (18×2)+3+4+4 |
| CPU Power | Dual 8‑pin (ProCool II) |
| Cooling | Active VRM heatsinks, heatpipes, chipset & M.2 heatsinks |
Audio & Physical
| Audio | S/PDIF out; HD audio codec |
| Dimensions | SSI CEB • 12″ W × 11″ D |
| Accessories | Wi‑Fi Q‑Antenna, Q‑Connector, M.2 Q‑Latch kits |
| Warranty | 3‑Year Limited |
Notes: ECC R‑DIMM memory required for ECC; UDIMM is not supported. USB4 functionality requires a compatible expansion card connected to the onboard header. Slot bandwidth depends on CPU and device configuration.
Included in the Box
