Gigabyte AMD TRX50 AI TOP E-ATX sTR5 DDR5 Workstation Motherboard
DHTRX50AITOP
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Get Answers to All Your Shipping Questions with our Expert Help Center
-
Customer Support
Get Reliable and Efficient Customer Support at Every Step of Your Purchase Process.
-
FAQ’s
Unlock Answers to All Your Questions with our Comprehensive FAQ Section.
-
Contact Us
Get in Touch Effortlessly Through Chat, Email, or Phone - We're Here to Help!
See Innovation in Action
Watch as advanced features, intuitive design, and exceptional performance come together in real time.
Product Details
Purpose‑built for extreme compute and content creation, the GIGABYTE TRX50 AI TOP (E‑ATX, sTR5) pairs AMD’s Threadripper™ platform with workstation‑class I/O. Drive multi‑GPU or accelerator workflows with 4 × PCIe® 5.0 x16 slots (reinforced PCIe UD Slot X), push massive datasets with up to 2 TB DDR5 ECC across 8 DIMMs, and sustain blistering storage throughput via 4 × M.2 plus SATA. Onboard dual 10GbE and Wi‑Fi 7 deliver high‑bandwidth networking, while USB4 (2 × USB‑C) and an internal USB 3.2 Gen 2×2 header modernize your front and rear I/O. Tool‑less EZ‑Latch Plug/Plus/Click makes assembly fast and frustration‑free—ideal for AI training rigs, 3D/VFX, CAD/CAE, and heavy compute on Windows 11 or Linux.
Featured Callouts
- • AI‑ready expandability: 4 × PCIe 5.0 x16 with reinforced UD Slot X for multi‑GPU/accelerator builds.
- • Massive memory ceiling: 8 DIMMs, DDR5 ECC support, up to 2 TB total capacity.
- • High‑speed storage: 4 × M.2 (PCIe 5.0/4.0 mix) plus 4 × SATA, RAID for NVMe and SATA arrays.
- • Pro networking: Dual 10GbE (Marvell AQC113C) + Wi‑Fi 7 tri‑band with MU‑MIMO; Bluetooth® 5.3.
- • Modern I/O: 2 × rear USB4 Type‑C, front USB‑C 20 Gbps header, DP‑In for display pass‑through.
- • Build‑friendly design: EZ‑Latch Plug/Plus/Click for tool‑less GPU and M.2 install with heatsinks.
Key Features
- Chipset / Socket: AMD TRX50 with sTR5 for Ryzen™ Threadripper™ PRO 7000 & 7000 Series.
- Memory: 8 × DDR5 ECC DIMM slots, up to 2 TB, octa‑channel architecture.
- Expansion: 4 × PCIe 5.0 x16 (UD Slot X reinforcement) for GPUs, capture, and AI accelerators.
- Storage: 4 × M.2 2280 (PCIe 5.0 x4 / 4.0 x4 / 4.0 x2 mix), 4 × SATA III; NVMe & SATA RAID.
- Networking: Dual 10GbE (RJ‑45) + Wi‑Fi 7 tri‑band; Bluetooth 5.3.
- Rear I/O: 2 × USB4 Type‑C, 6 × USB‑A (USB 3.2 Gen2), DisplayPort‑In, 2 × 3.5 mm audio, 2 × antenna connectors, BIOS Flashback.
- Headers: USB 3.2 Gen 2×2 (front USB‑C), 2 × USB 3.2 Gen1 (4 ports), 2 × USB 2.0 (4 ports), 4 × RGB.
- Cooling / Power: 1 × 4‑pin CPU, 2 × 4‑pin system, 5 × 4‑pin pump; 24‑pin main, dual 8‑pin CPU.
- Build & OS: E‑ATX (12.0″ × 13.0″); Windows 11 and Ubuntu 24.4 support.
What’s In The Box
- GIGABYTE TRX50 AI TOP sTR5 E‑ATX Motherboard
- Limited 3‑Year Manufacturer Warranty
Specifications
Platform
| Chipset | AMD TRX50 |
| CPU Socket | sTR5 |
| CPU Support | Ryzen™ Threadripper™ PRO 7000 / Threadripper™ 7000 |
| Form Factor | E‑ATX (12.0″ × 13.0″ / 30.5 × 33 cm) |
| OS Compatibility | Windows 11; Ubuntu 24.4 |
Memory
| Slots | 8 × 288‑pin DDR5 |
| Capacity | Up to 2 TB |
| Architecture | Octa‑channel |
| ECC Support | ECC supported (per board QVL/module type) |
Expansion
| PCIe | 4 × PCIe 5.0 x16 (reinforced PCIe UD Slot X) |
| Display Pass‑Through | 1 × DisplayPort‑In (back panel) |
Storage
| M.2 | 4 × M.2 (M‑Key) 2280 — mix of PCIe 5.0 x4 / 4.0 x4 / 4.0 x2 |
| SATA | 4 × SATA III 6 Gb/s |
| RAID | M.2: 0/1/10 • SATA: 0/1 |

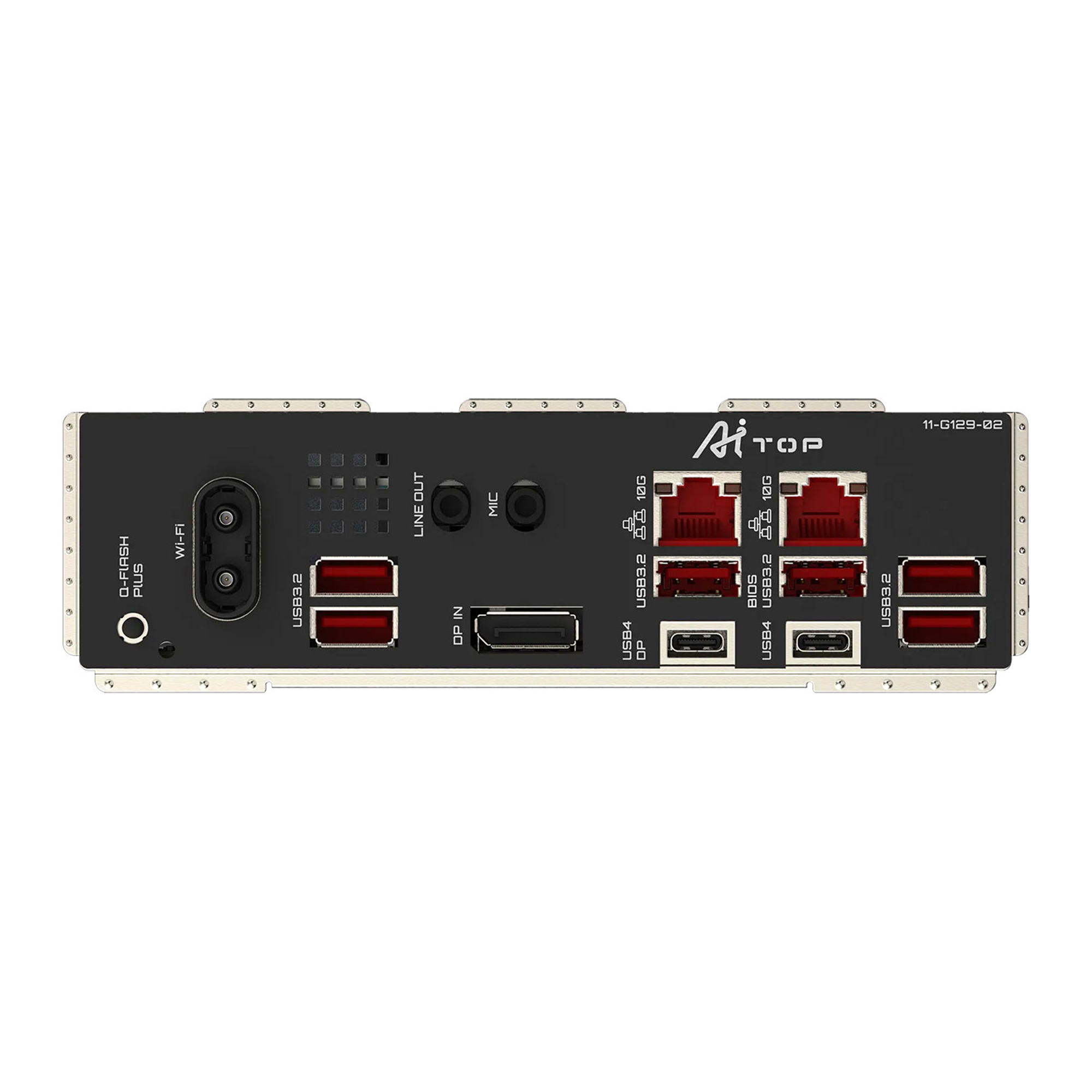

Rear I/O
| USB‑C | 2 × USB4 (Type‑C) |
| USB‑A | 6 × USB 3.2 Gen2 |
| Display | 1 × DisplayPort‑In |
| Audio | 2 × 3.5 mm jacks |
| LAN | 2 × 10GbE (Marvell AQC113C) |
| Wireless Antenna | 2 × connectors (Wi‑Fi 7) |
| Buttons | BIOS Flashback |
Internal I/O & Headers
| USB (Front) | 1 × USB 3.2 Gen 2×2 header (1 × Type‑C) |
| USB (Headers) | 2 × USB 3.2 Gen1 (4 ports), 2 × USB 2.0 (4 ports) |
| Cooling | 1 × 4‑pin CPU, 2 × 4‑pin system, 5 × 4‑pin pump |
| RGB | 4 × RGB headers |
| Security | TPM header |
| Front Audio | AAFP header |
| Power | 1 × 24‑pin mainboard, 2 × 8‑pin CPU |
Networking & Wireless
| Ethernet | Dual 10GbE (RJ‑45) |
| Wi‑Fi | Wi‑Fi 7 (802.11be), tri‑band with MU‑MIMO |
| Bluetooth | Bluetooth® 5.3 |
Audio
| Codec | Realtek ALC4080 (2‑channel) |
BIOS
| ROM | 256 Mb |
Physical
| Dimensions | 12.0 × 13.0 in / 30.5 × 33 cm |
| Form Factor | E‑ATX |
| Packaging | Approx. 12.36 lb; box 16 × 15 × 4.3 in |
| Warranty | 3‑Year Limited |
Notes: USB4 functionality is provided via the two rear USB‑C ports. Actual PCIe/M.2 lane allocation and bandwidth vary by CPU and device configuration. Memory ECC operation and module types should follow the board’s qualified vendor list.
