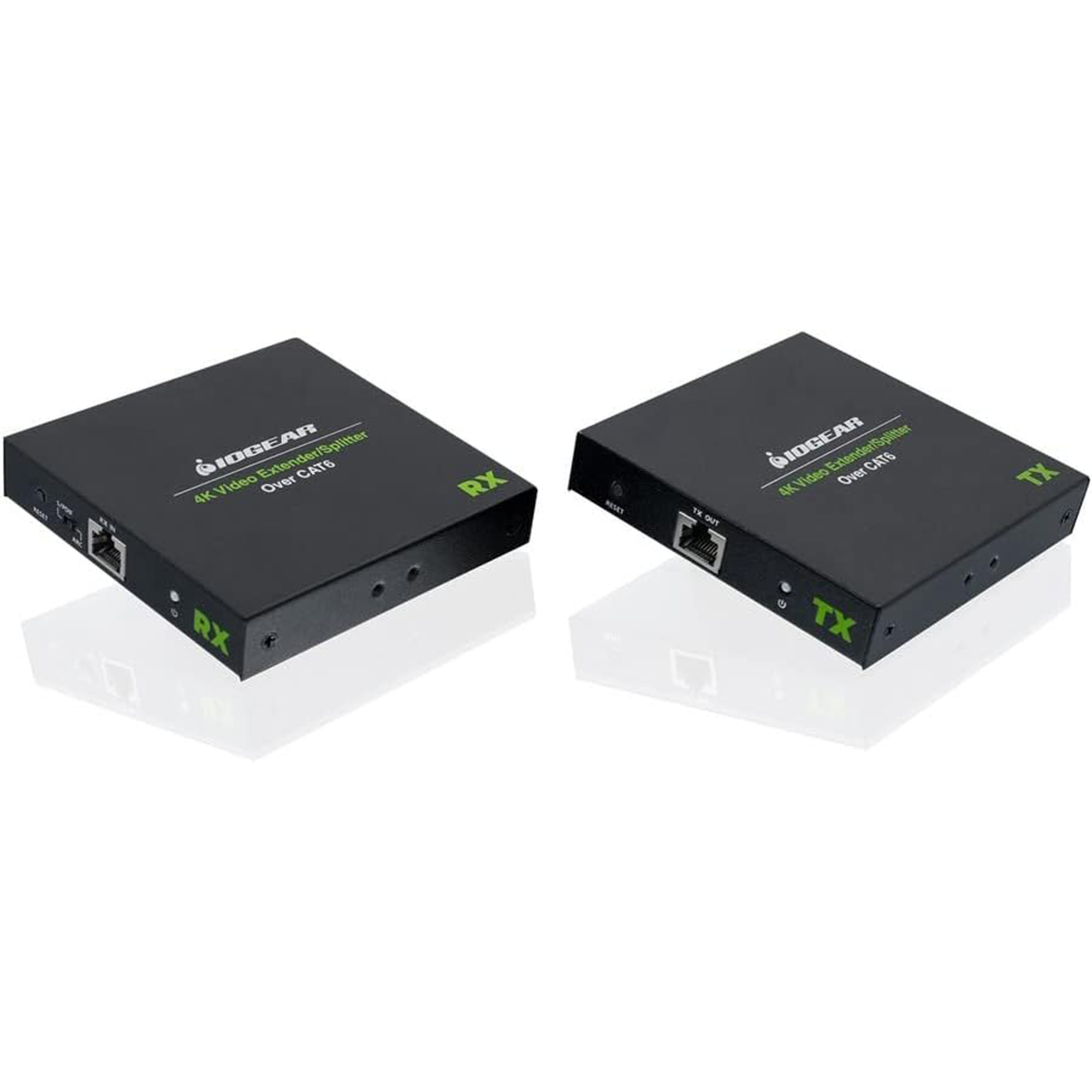

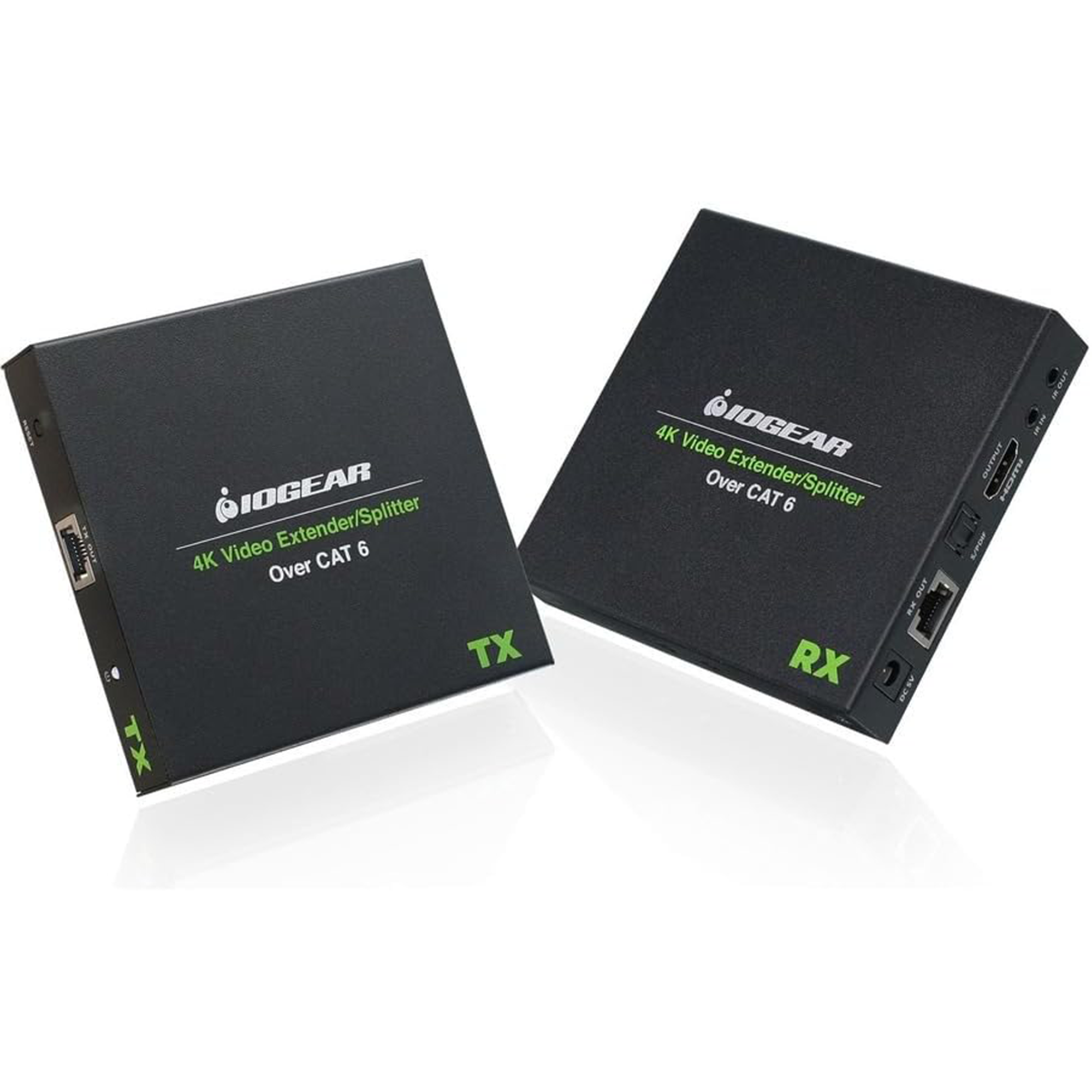

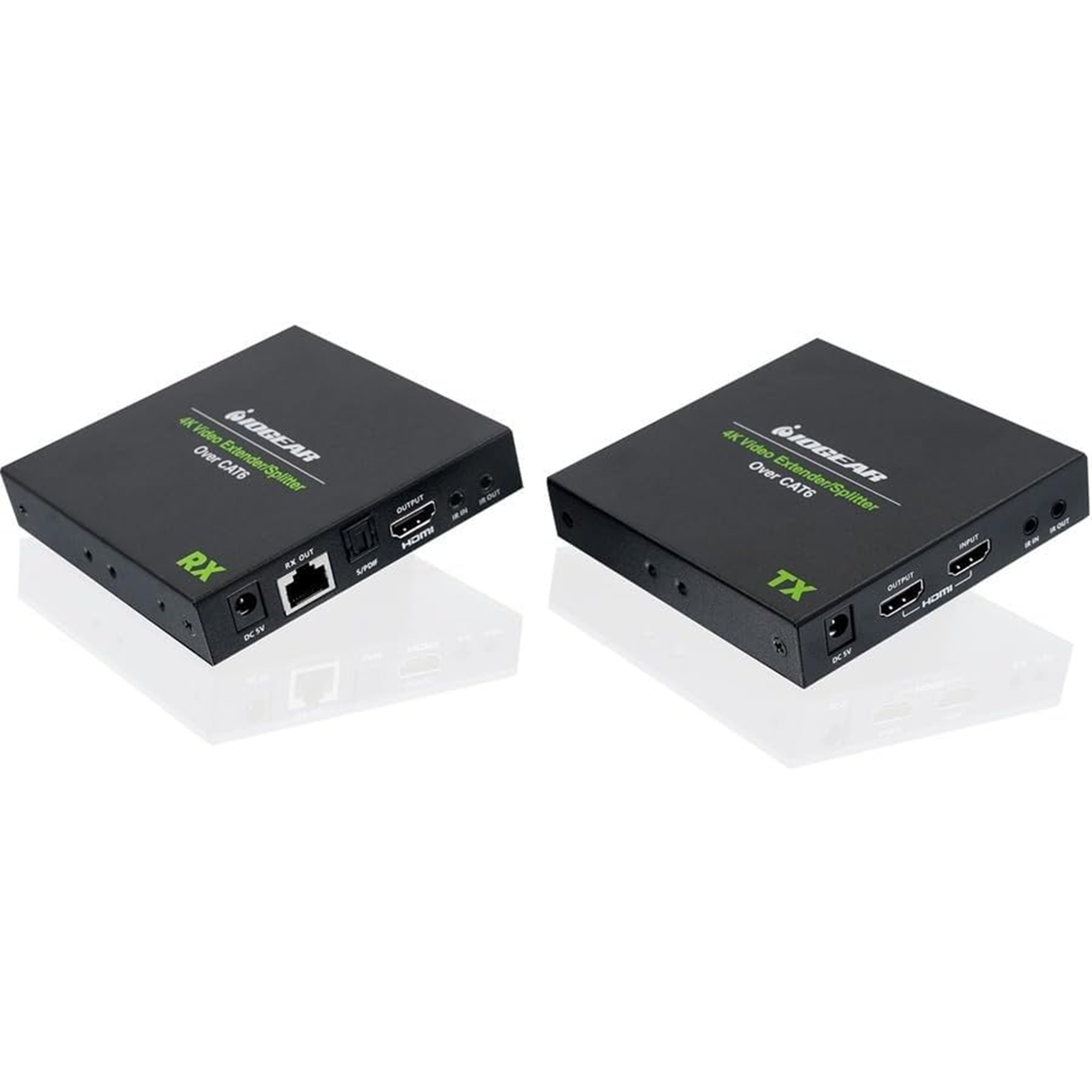

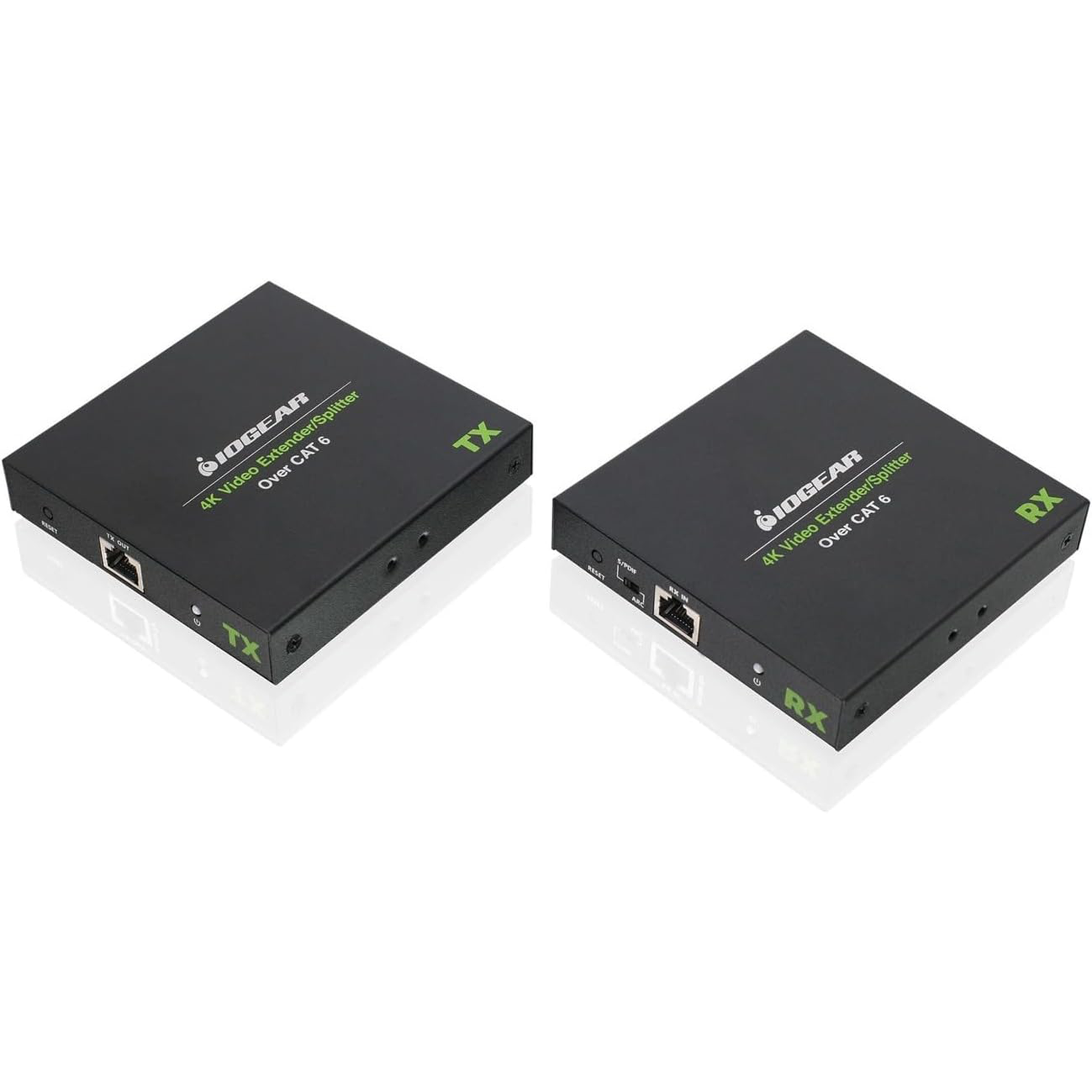

IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit
GVE4K60KIT
Pairs well with
IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Get Answers to All Your Shipping Questions with our Expert Help Center
-
Customer Support
Get Reliable and Efficient Customer Support at Every Step of Your Purchase Process.
-
FAQ’s
Unlock Answers to All Your Questions with our Comprehensive FAQ Section.
-
Contact Us
Get in Touch Effortlessly Through Chat, Email, or Phone - We're Here to Help!
See Innovation in Action
Watch as advanced features, intuitive design, and exceptional performance come together in real time.
Product Details
The IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit is a high-performance solution designed to extend or split 4K video signals over long distances using cost-effective Cat 6 cabling. Perfect for commercial AV setups, digital signage, education environments, and home theaters, this kit ensures cinema-quality video up to 3840 x 2160 at 60Hz (4:4:4) with near-zero latency. Supporting ARC, S/PDIF digital audio, HDR, and bi-directional IR, it combines advanced video and audio capabilities with installation-friendly features for maximum flexibility and reliability.
Key Features:
- Extender & Splitter Modes: Extend HDMI signals to a single display or cascade up to 10 receivers for multi-display setups.
- Long-Distance Transmission: Extend 4K UHD video up to 230 ft (70 m) via Cat 6 cable.
- Ultra HD Clarity: Supports 4096 x 2160 @30Hz or 3840 x 2160 @60Hz with HDR and 18 Gbps bandwidth.
- ARC & S/PDIF Audio: Return audio channel support plus digital audio output for superior sound.
- Near-Zero Latency: With less than 1ms latency, it’s ideal for gaming and real-time applications.
- HDMI Loop-Out: Transmitter includes a local HDMI output for on-site monitoring.
- Bi-Directional IR Control: Manage source devices or displays remotely with full IR pass-through.
- Durable Aluminum Housing: Provides reliable performance and electrostatic surge protection.
Features:
- Flexible extender mode for single-display setups or splitter mode for cascading up to 10 receivers.
- Compatible with HDMI audio formats including LPCM, DTS-HD, DTS, Dolby TrueHD 7.1, and Dolby Digital 5.1.
- Electrostatic surge protection enhances durability and safety.
- CEC and EDID support ensures seamless device communication and optimal resolution matching.
- ARC capability for sending audio back from a display to an audio system.
- Compact design with easy wall or rack mounting options.
Included In The Box:
- IOGEAR GVE4K60KIT 4K Video Extender/Splitter Over Cat 6 Kit
- Transmitter Unit
- Receiver Unit
- 2 × IR Extension Cables
- 2 × Power Adapters
- 2 × Mounting Kits
- Limited 3-Year Manufacturer Warranty
Technical Specifications:
| Max Transmission Distance | 4K DCI @30Hz: 230 ft (70.1 m); 4K UHD @60Hz: 230 ft (70.1 m) |
|---|---|
| Video Formats | 4096 x 2160 @30Hz, 3840 x 2160 @60Hz (4:4:4), HDR |
| Audio Formats | S/PDIF: Dolby Digital, DTS, Dolby TrueHD, DTS-HD, LPCM |
| Latency | ~1 ms (near zero) |
| Transmitter Inputs | 1 × HDMI 2.0, 1 × 3.5 mm IR |
| Transmitter Outputs | 1 × RJ45 (LAN), 1 × HDMI (loop-through), 1 × 3.5 mm IR |
| Receiver Inputs | 1 × RJ45 (LAN), 1 × 3.5 mm IR |
| Receiver Outputs | 1 × HDMI, 1 × RJ45 (LAN), 1 × Optical S/PDIF, 1 × 3.5 mm IR |
| HDCP Support | No |
| EDID Support | Yes |
| Power | 5 VDC via barrel input (transmitter & receiver) |
| Certifications | CE, FCC, RoHS |
| Transmitter Dimensions | 4.13 × 4.13 × 0.75" / 10.49 × 10.49 × 1.91 cm |
| Receiver Dimensions | 4.13 × 4.13 × 0.75" / 10.49 × 10.49 × 1.91 cm |
| Weight | Transmitter: 1.1 lb (0.5 kg); Receiver: 1.1 lb (0.5 kg) |
| Package Dimensions | 9.7 × 7.2 × 3.3" |
| Package Weight | 2.03 lb |
| Warranty | Limited 3-Year Manufacturer Warranty |
Featured Callouts:
- 4K HDR Clarity: Transmit true cinema-quality video up to 230 ft with no quality loss.
- Flexible Deployment: Works as both extender and splitter for up to 10 displays.
- ARC & S/PDIF Support: Enhanced audio flexibility with premium digital sound formats.
- Ultra-Low Latency: ~1ms delay makes it suitable even for gaming.
- Robust Build: Aluminum housing with surge protection ensures durability and reliability.
