Product Details

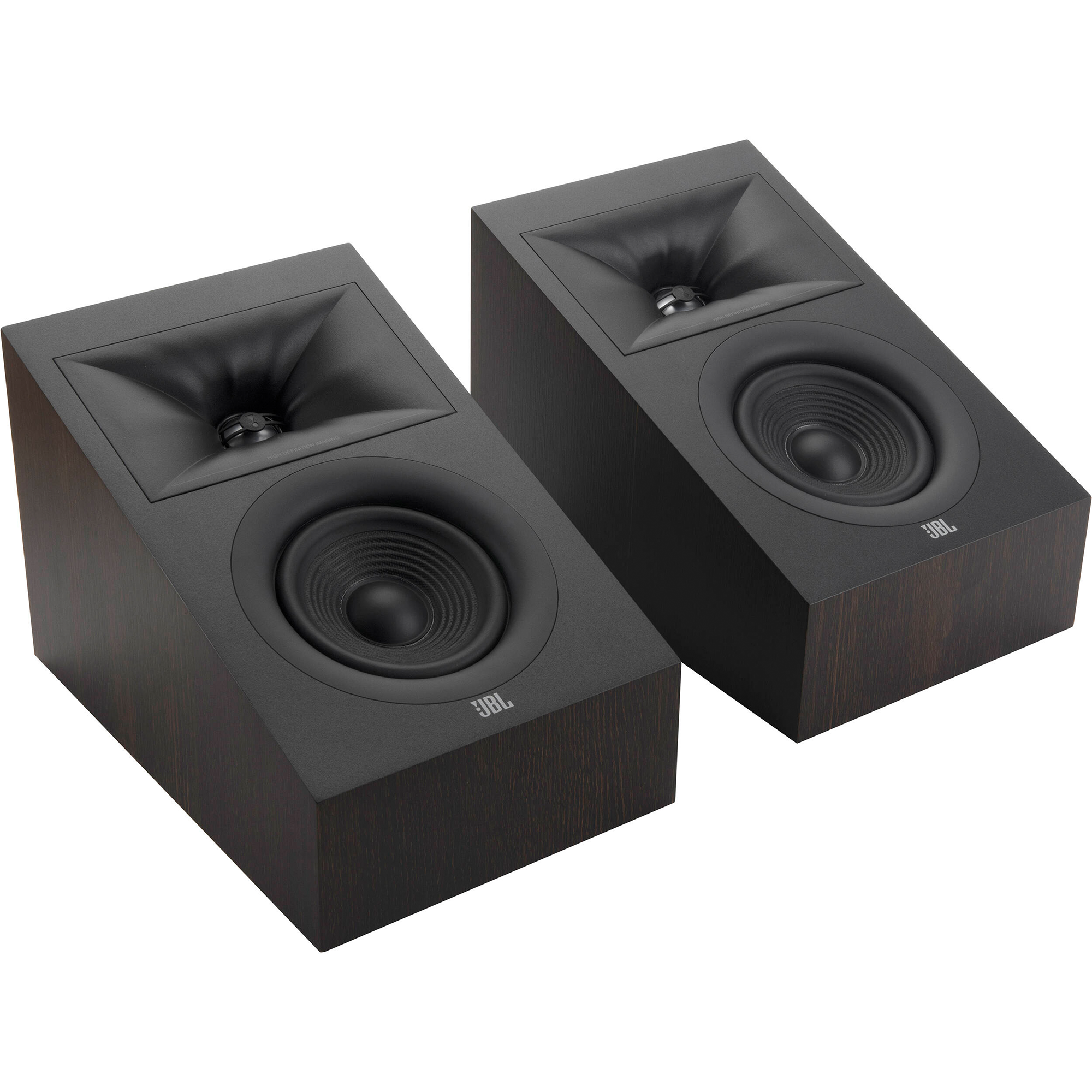

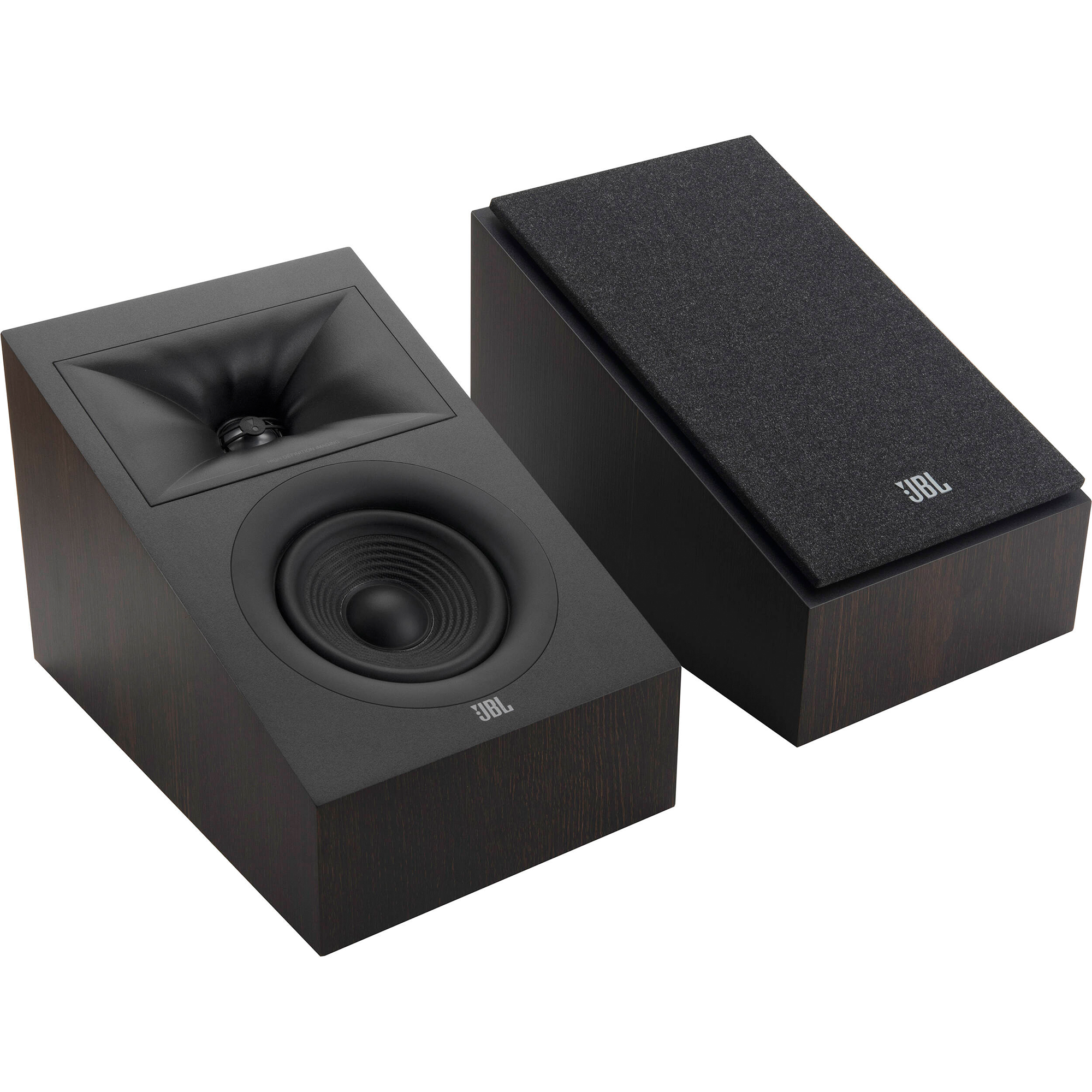

Bring cinematic depth and realism to your home theater with the JBL Stage 240H 2-Way Dolby Atmos® Surround Sound Speakers. Finished in espresso woodgrain with a sleek floating front baffle design, these versatile speakers deliver immersive height effects or rear surround sound. Each speaker features JBL’s 4.5" polycellulose ribbed cone woofer and a 1" anodized aluminum dome tweeter housed in a Stage 2 HDI™ horn for wide, precise sound dispersion. Whether placed on top of compatible JBL Stage floorstanding speakers or wall-mounted, the 240H speakers expand your soundstage with clarity, accuracy, and power.

Key Features

  • 2-Way Design – Full-range performance with woofer + tweeter system.
  • Dolby Atmos® or Surround – Switchable crossover adapts for height or surround use.
  • 4.5" Polycellulose Woofer – Rigid, ribbed cone delivers dynamic bass and midrange.
  • 1" Anodized Aluminum Tweeter – Crisp high frequencies with reduced distortion.
  • Stage 2 HDI™ Horn – Wide, even sound dispersion across the listening area.
  • Floating Front Baffle – Modern design reduces cabinet diffraction and resonance.

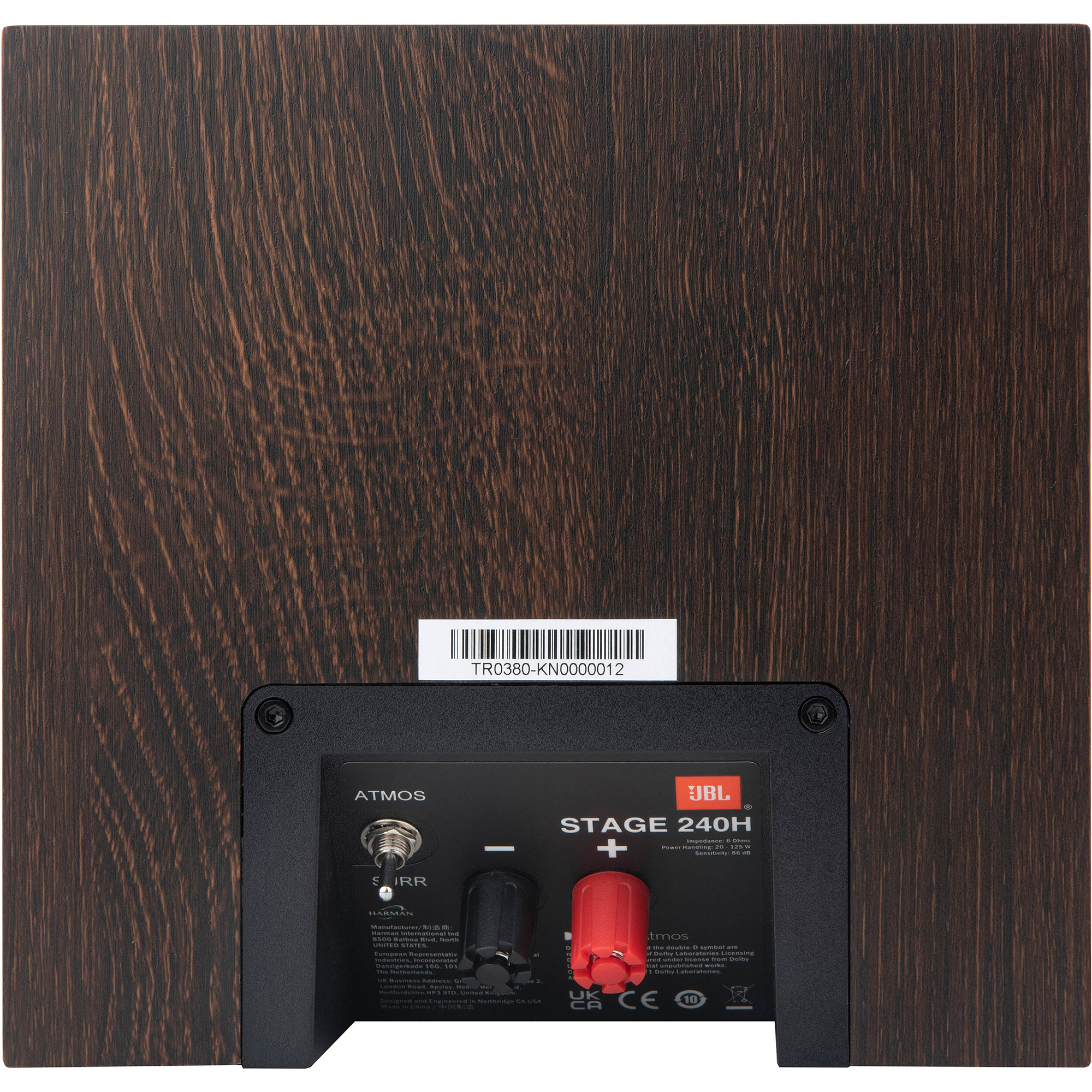

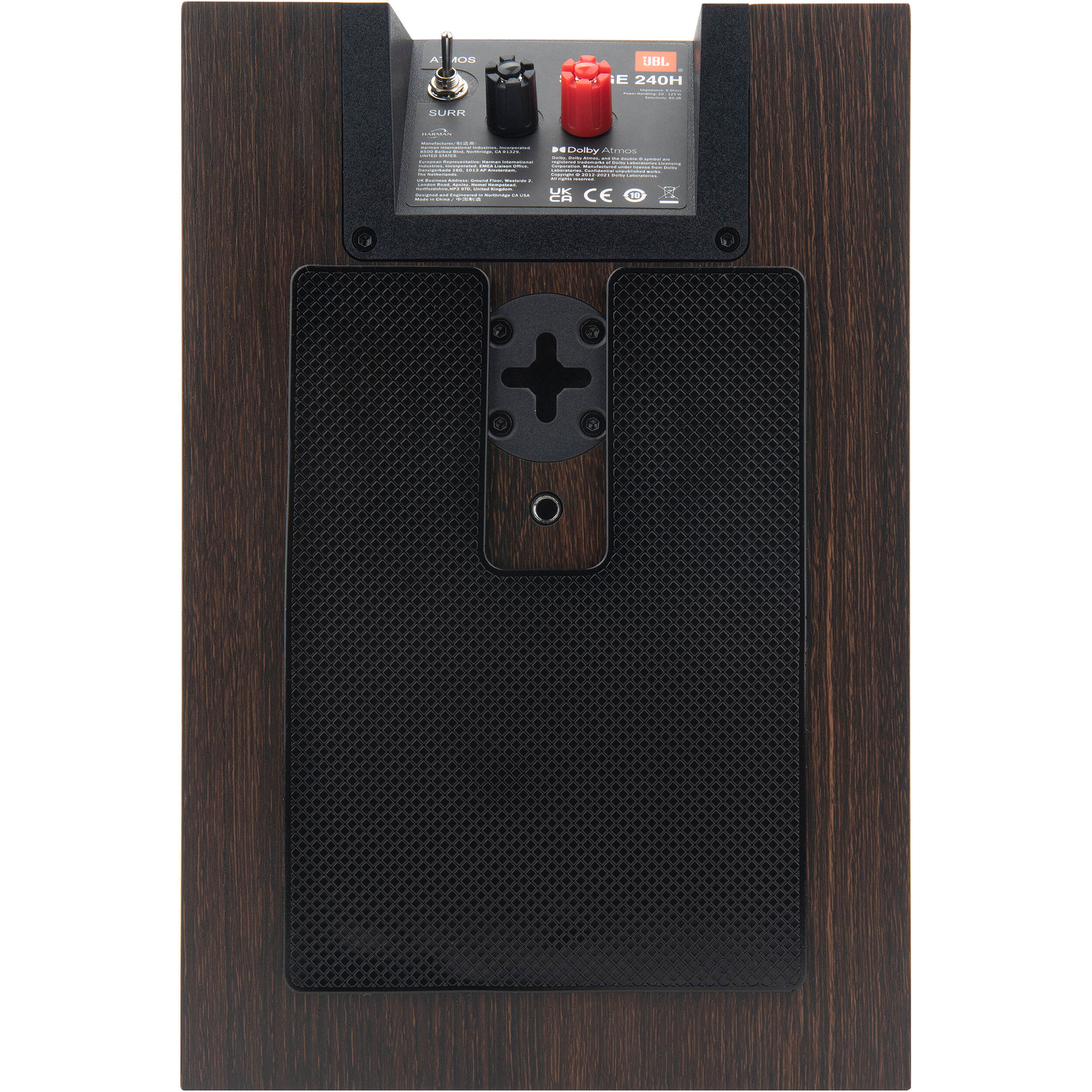

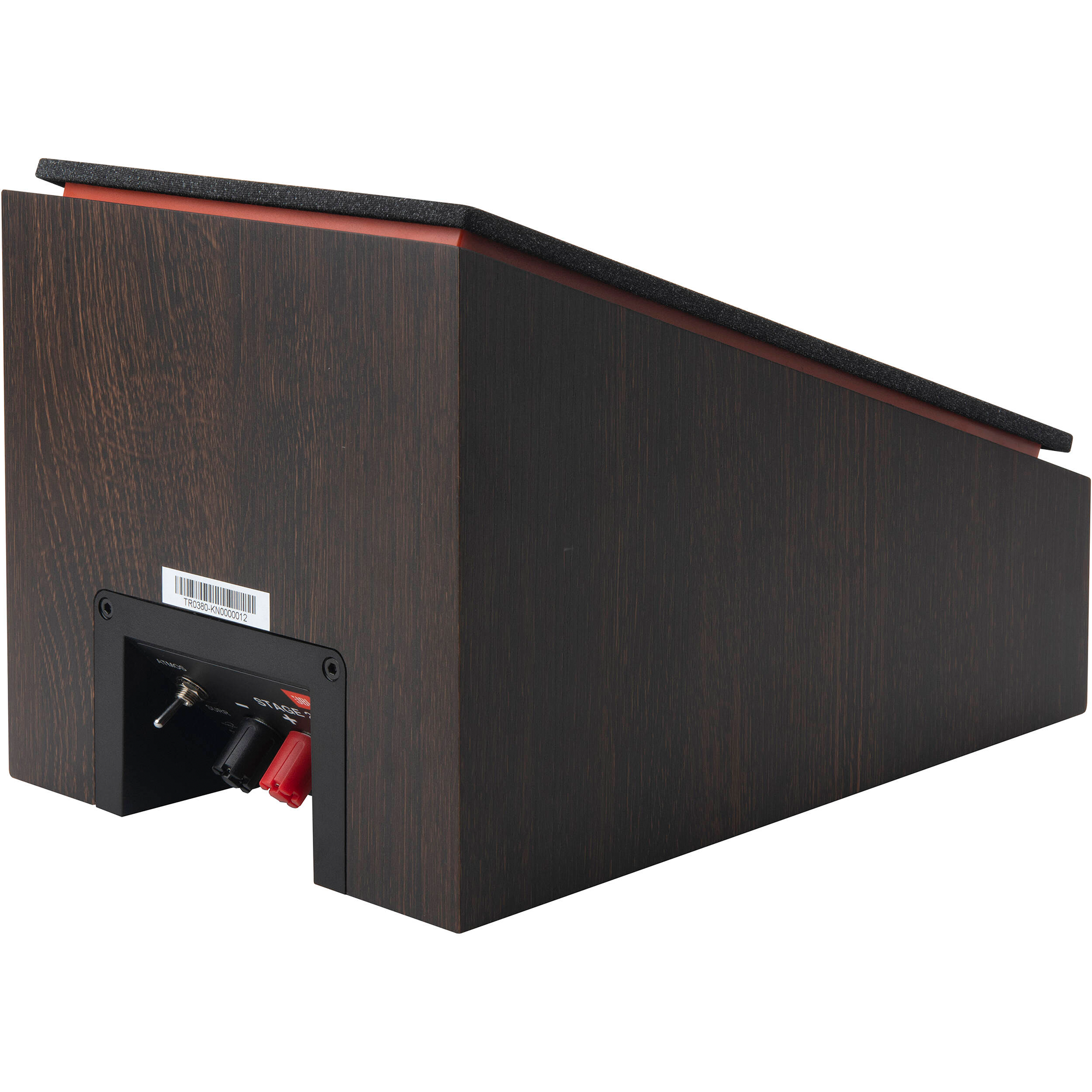

  • Switchable Back Panel – Choose “Surround” mode for wall mounting or “Atmos” mode for use as toppers.
  • 6-Ohm Impedance – Compatible with most modern AV receivers and amplifiers.

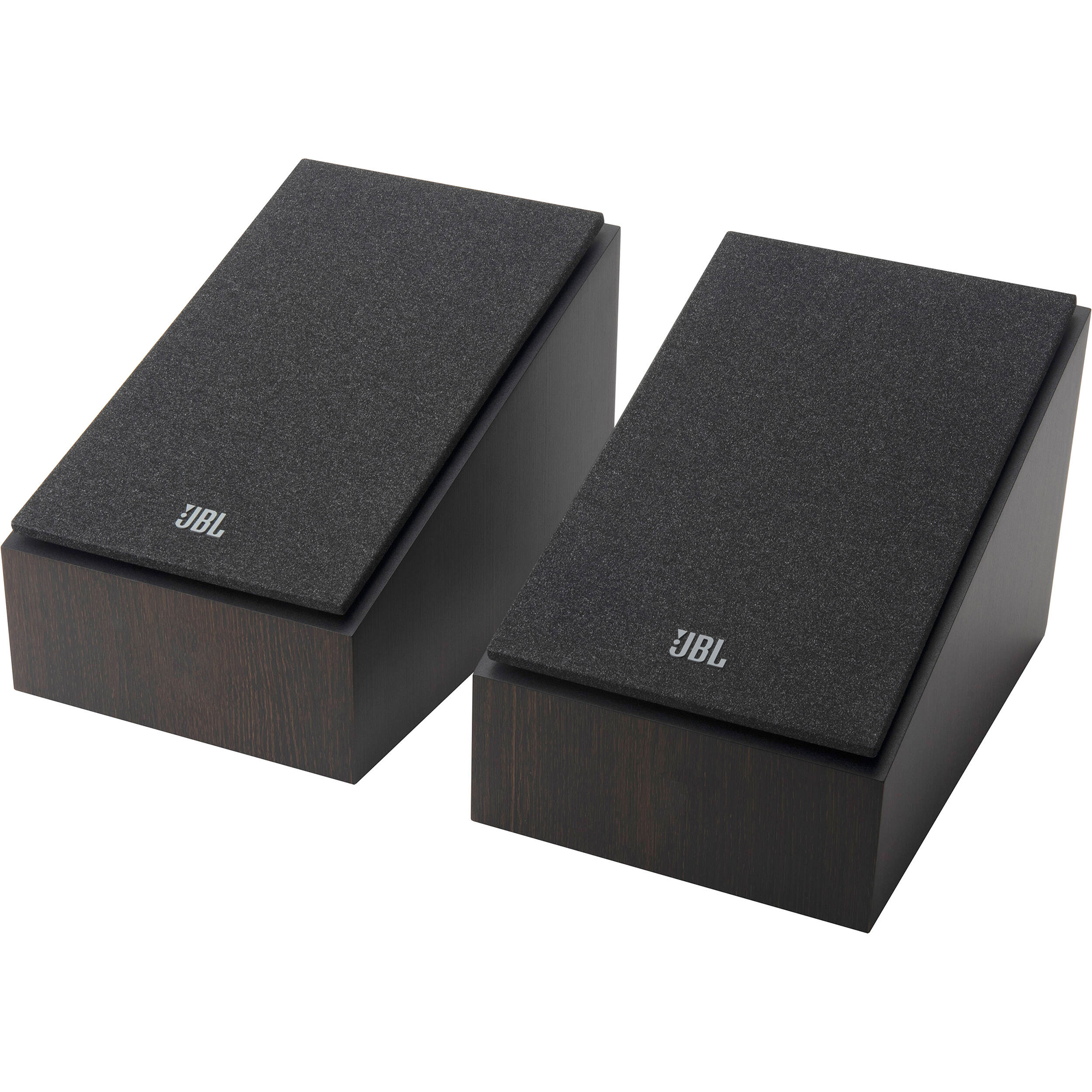

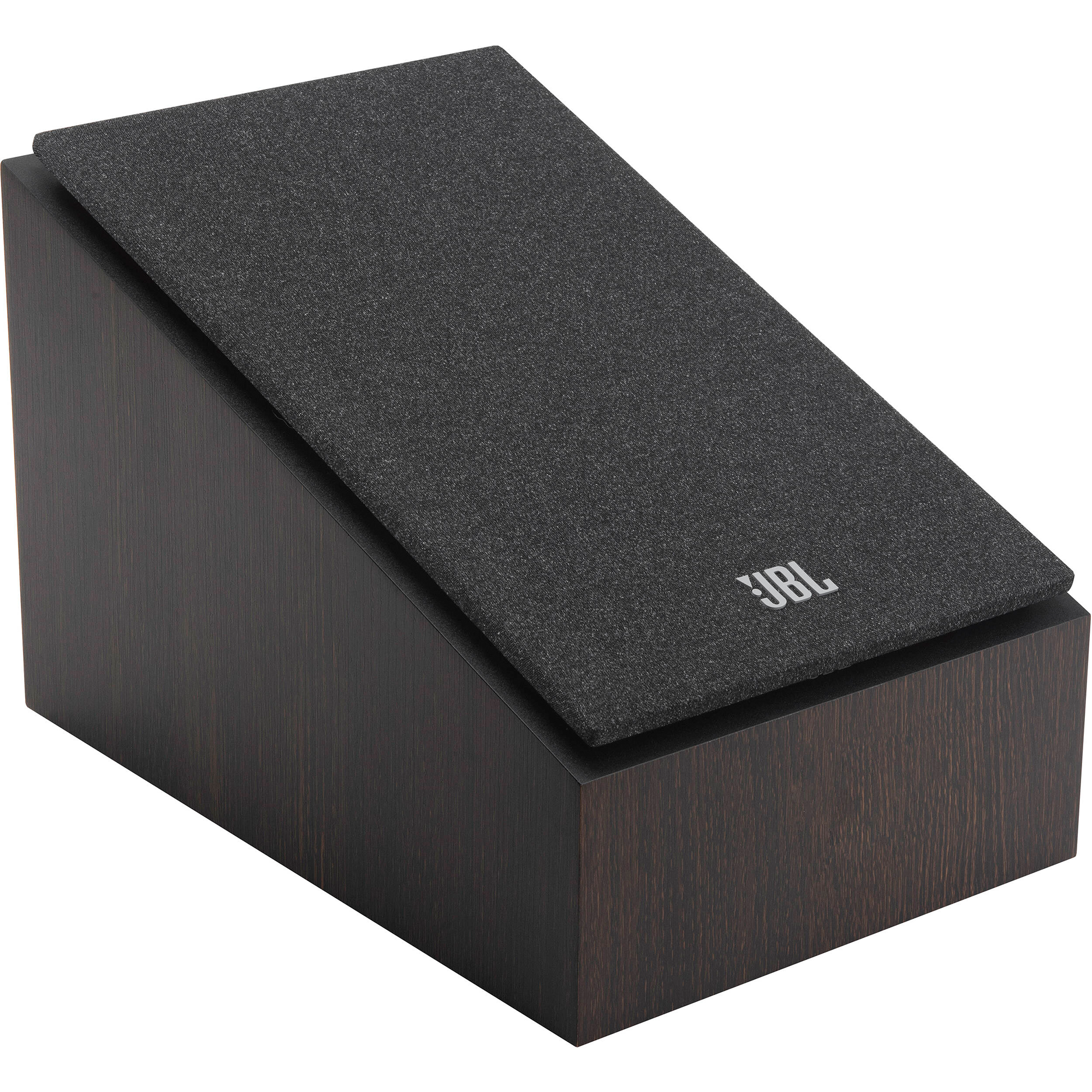

  • Magnetic Cloth Grilles – Removable and stylish for any home setup.
  • Flexible Placement – Use as speaker toppers, bookshelf placement, or wall-mounted surrounds.

Features

  • Immersive Height Channels – Adds true Dolby Atmos® effects when placed on top of floorstanding speakers.
  • Rear Surround Sound – Can be wall-mounted for accurate surround placement.
  • High Definition Imaging (HDI) Horn – Wide sound dispersion with precise imaging.
  • Anti-Slip Pads – Stabilize speakers when used as toppers on flat surfaces.
  • 5-Way Binding Posts – Secure, high-quality speaker connections.
  • Customizable Setup – Works with JBL Stage 260F and 280F speakers or other Atmos-enabled systems.
  • Elegant Finish – Espresso woodgrain with black baffle complements modern interiors.

Included In The Box

  • 2 × JBL Stage 240H Dolby Atmos® Height Speakers
  • 2 × Removable Magnetic Grilles
  • 2 × Anti-Slip Pads
  • Quick Start Guide
  • Safety Instructions
  • Limited 5-Year Manufacturer Warranty

Technical Specifications

Speaker Configuration 2-Way Dolby Atmos® / Surround
Drivers 1 × 4.5" Polycellulose Ribbed Cone Woofer
1 × 1" Anodized Aluminum Dome Tweeter
Horn Stage 2 HDI™ High Definition Imaging Horn
Power Handling 75W RMS (20–150W recommended)
Frequency Response 85 Hz – 25 kHz (-6 dB)
100 Hz – 25 kHz (-3 dB)
Sensitivity 85 dB
Impedance 6 Ohms
Crossover Frequency 1.6 kHz
Inputs 5-Way Binding Post Pair
Enclosure Type Sealed
Placement Options Speaker Toppers, Bookshelf/Tabletop, Wall-Mountable
Grille Removable Magnetic Cloth
Dimensions (W × H × D) 7.1 × 7.3 × 10.6 in (180 × 185 × 270 mm)
Weight 10.1 lb (4.6 kg) each
Finish Espresso Woodgrain / Black Baffle
Package Weight 20 lb
Warranty 5-Year Limited Manufacturer Warranty
