Klipsch R-5650-W II In-Wall Speaker (Single)

Sophisticated yet uncomplicated, the Klipsch R-5650-W II brings true Klipsch dynamics and clarity to a discreet in-wall form factor. A 1″ titanium-dome compression driver on a pivoting 90° × 60° Tractrix® horn delivers highly efficient, low-distortion highs you can aim at the listening position, while the 6.5″ Cerametallic™ woofer provides tight, articulate midbass. With onboard contour switches, an IR-receiver knockout, and the ultra-low-profile SlimTrim™ magnetic grille, it’s an installer-friendly LCR/surround solution that blends seamlessly into premium interiors.

Featured Callouts

• Pivoting Tractrix® Horn: aim high frequencies ±15° for precise imaging.
• Cerametallic™ Woofer: rigid, lightweight cone for tight, defined bass.

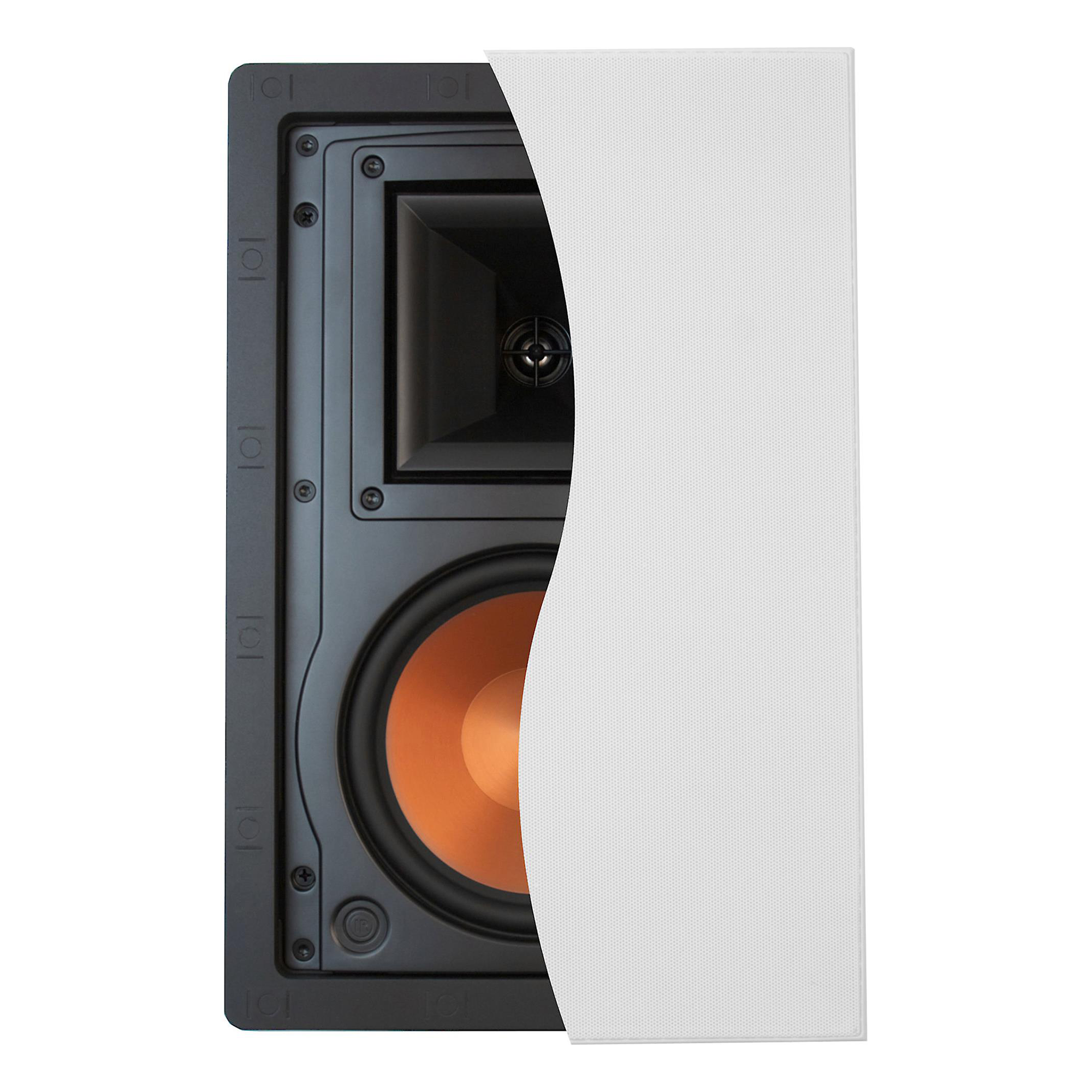

• SlimTrim™ Magnetic Grille: 90% smaller visible frame, 80% shallower grille depth for a near-invisible finish.
• Room-Tuning Switches: treble & midbass attenuation for challenging placements.

Key Features

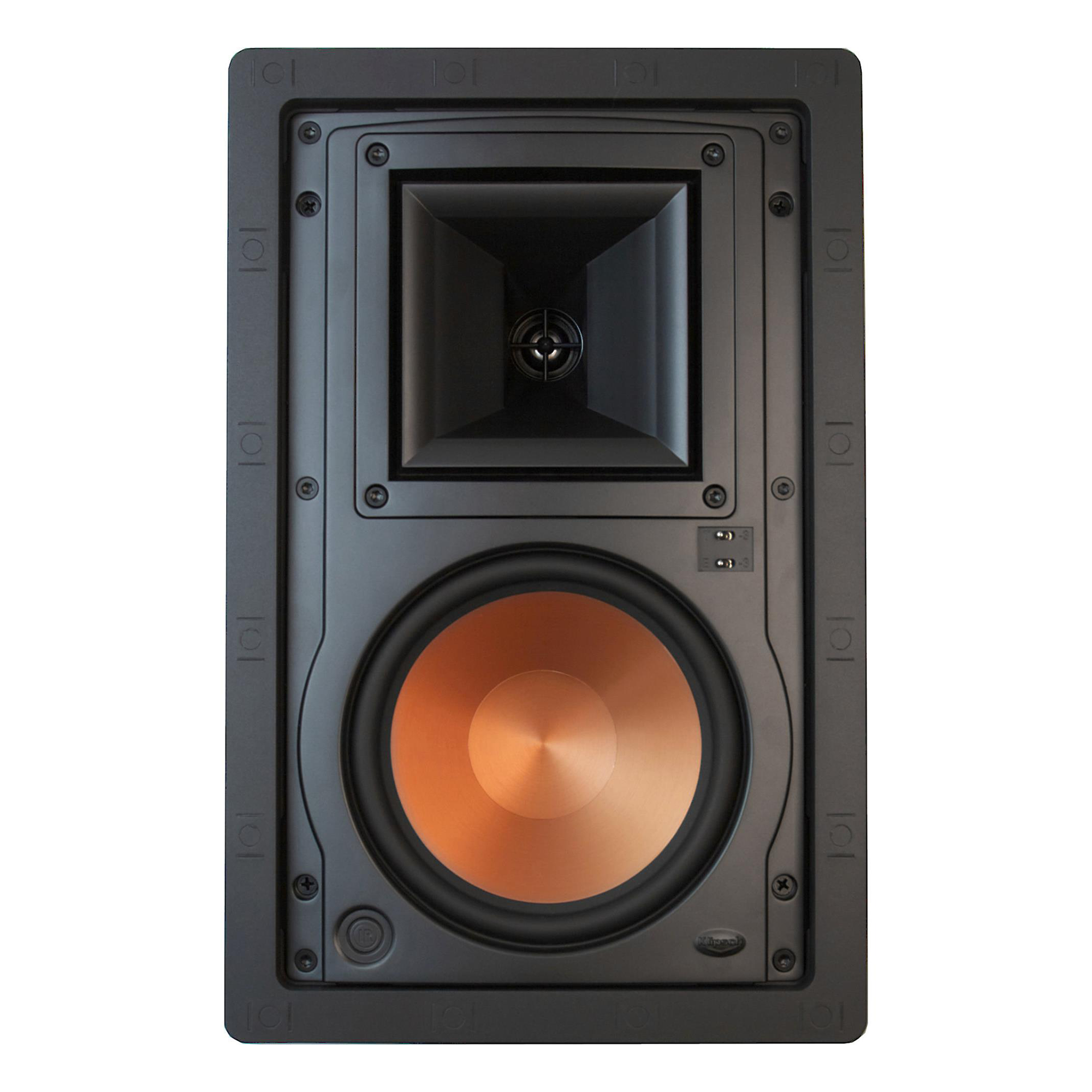

• 1″ titanium-dome compression driver mated to a 4″ square 90° × 60° Tractrix® horn
• 6.5″ Cerametallic™ cone woofer
• Horn-loaded design increases output and reduces distortion
• IR receiver knockout for control system integration
• Sure-Grip mounting dogs for secure, long-term installation
• Compatible accessories: IK-650-W install kit; ME-650-K fire-rated enclosure (sold separately)

Features

• Linear Travel Suspension (LTS) tweeter architecture for smooth, detailed HF
• Front-flush, infinite-baffle in-wall operation (ABS baffle)
• Treble and midbass attenuation switches for response tailoring
• Paintable SlimTrim™ aluminum grille attaches magnetically for rapid finish work

Included In The Box

• Klipsch R-5650-W II in-wall speaker (Single)

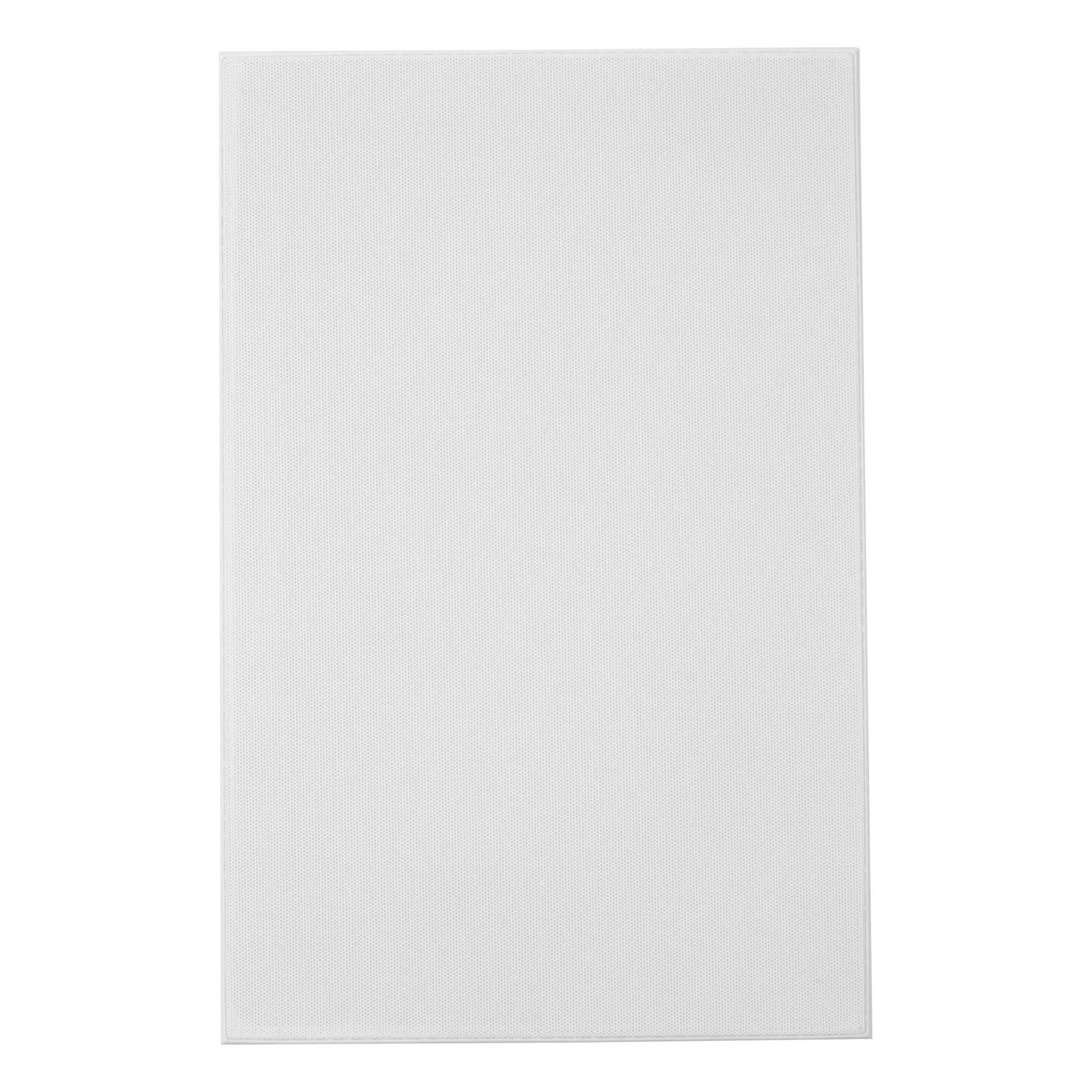

• White metal mesh, paintable magnetic grille
• Cardboard cutout/template
• Owner’s manual

Technical Specifications
