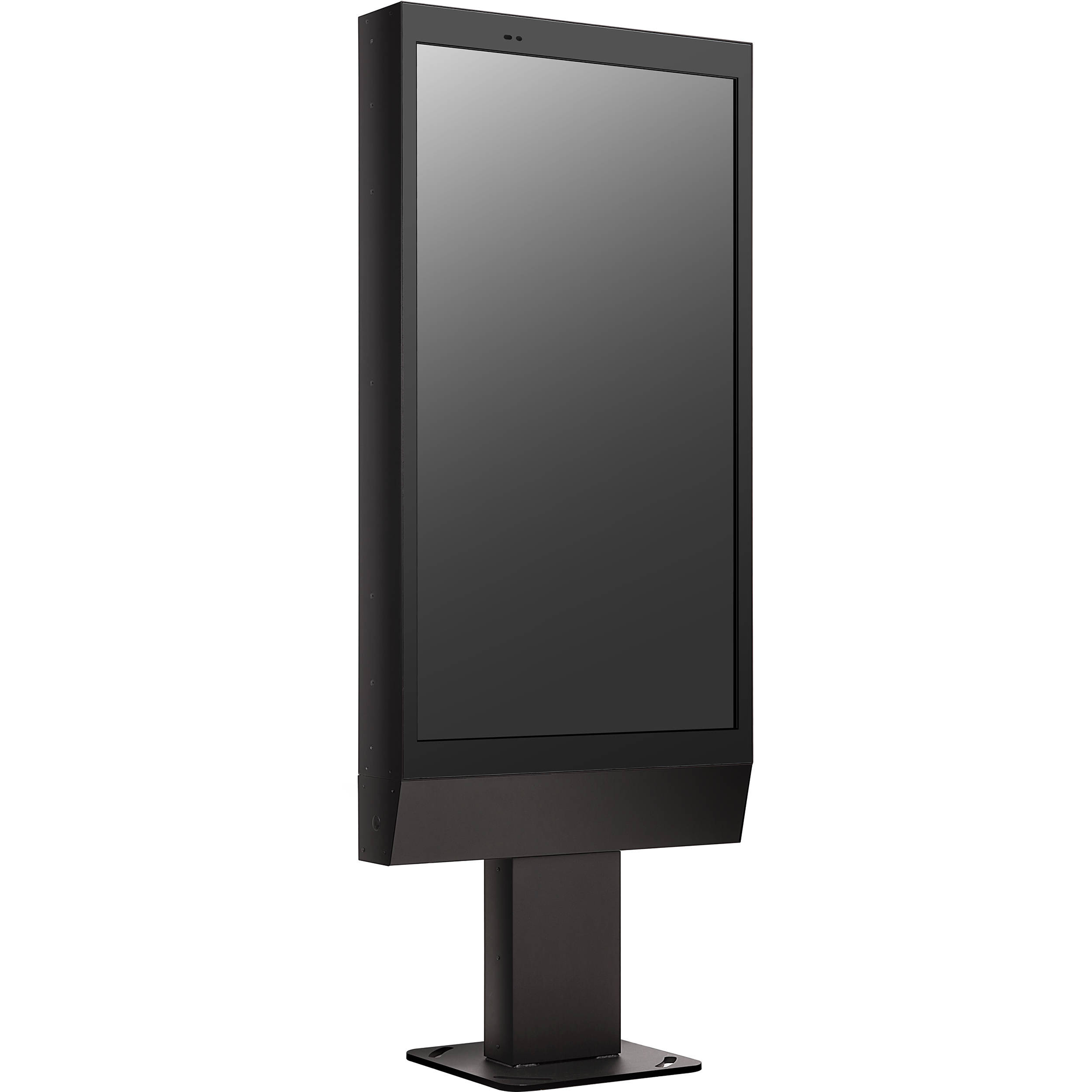

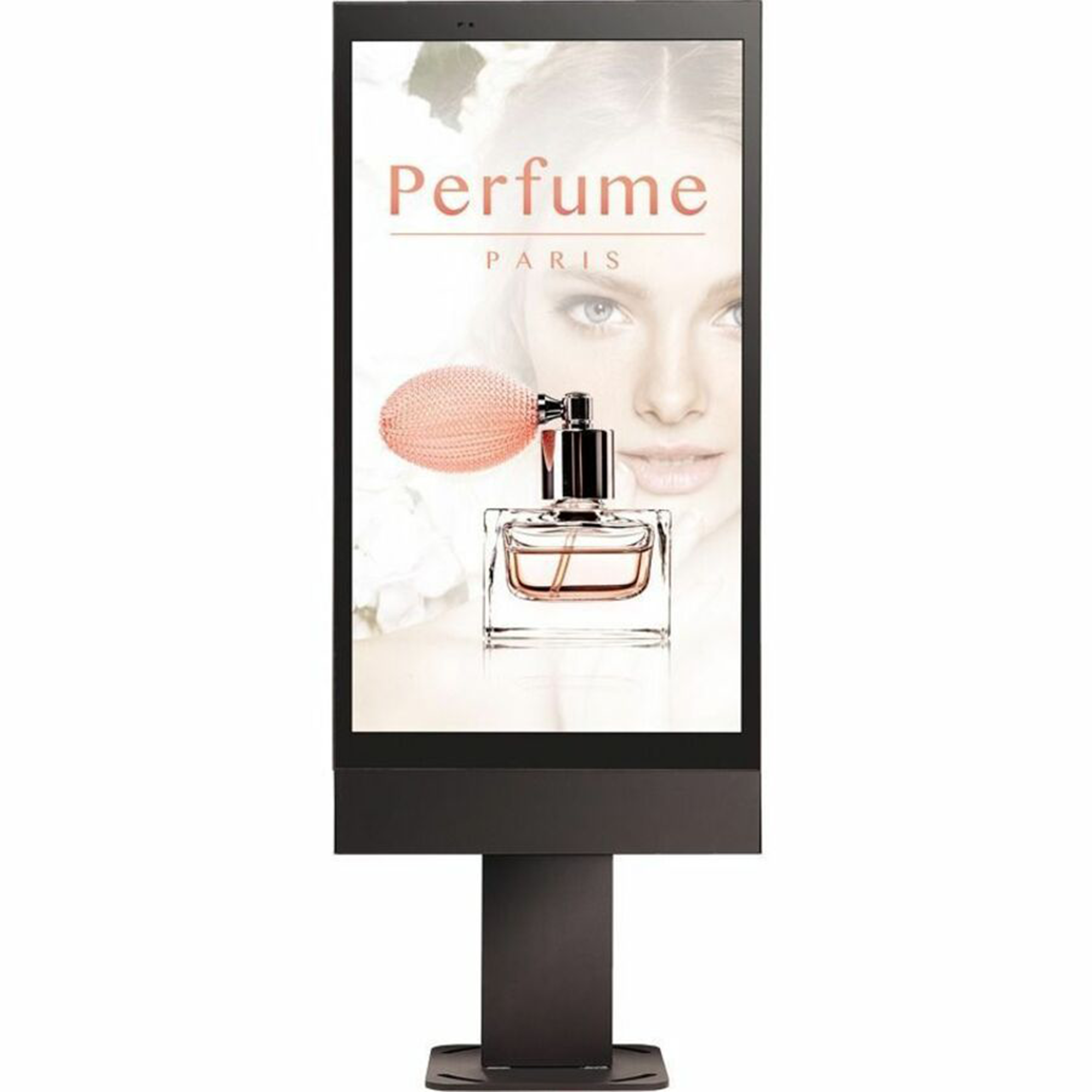

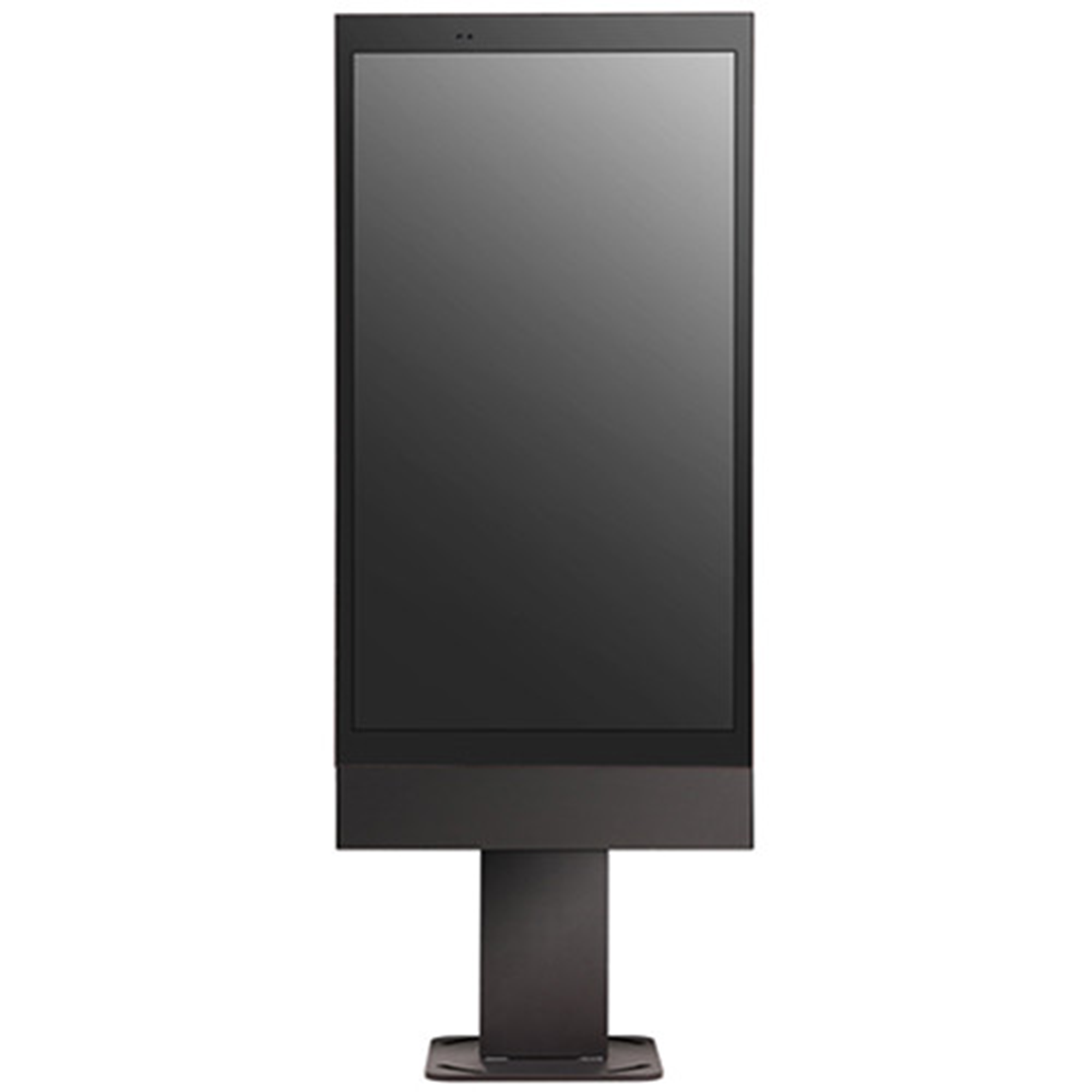

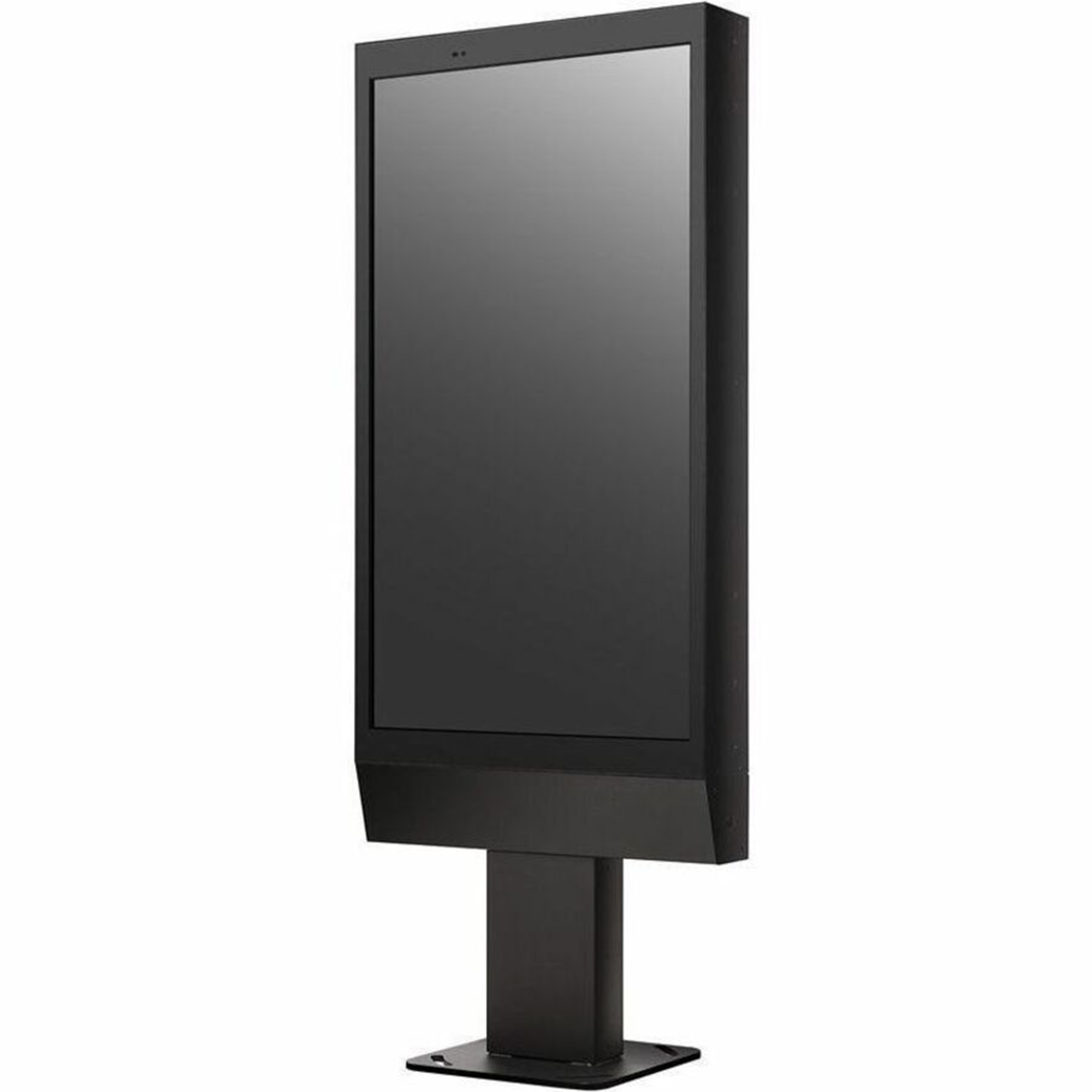

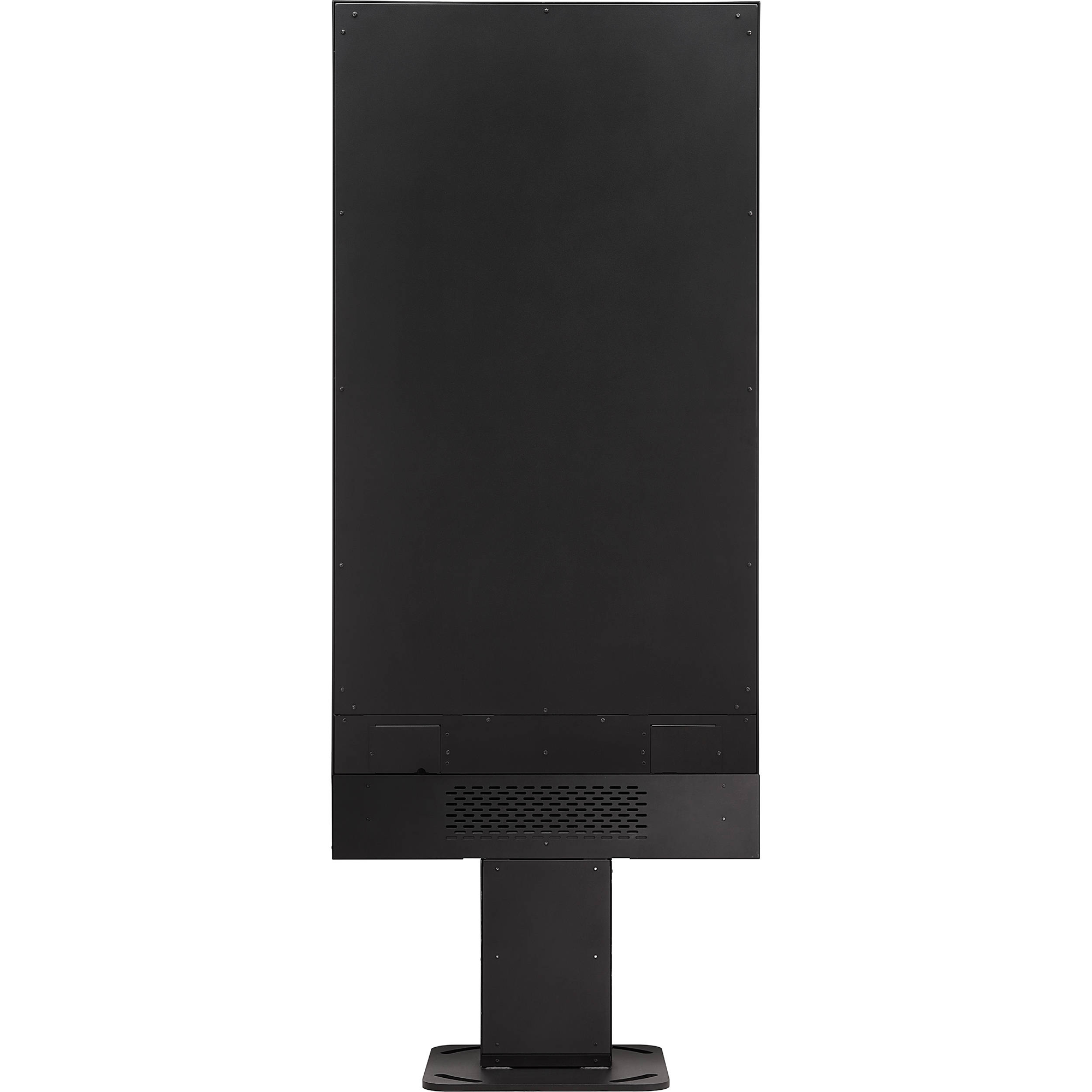

LG 75XE3C 75" (75.52” Diagonal) Digital Outdoor Commercial Signage
75XE3C-B
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Get Answers to All Your Shipping Questions with our Expert Help Center
-
Customer Support
Get Reliable and Efficient Customer Support at Every Step of Your Purchase Process.
-
FAQ’s
Unlock Answers to All Your Questions with our Comprehensive FAQ Section.
-
Contact Us
Get in Touch Effortlessly Through Chat, Email, or Phone - We're Here to Help!
See Innovation in Action
Watch as advanced features, intuitive design, and exceptional performance come together in real time.
Product Details

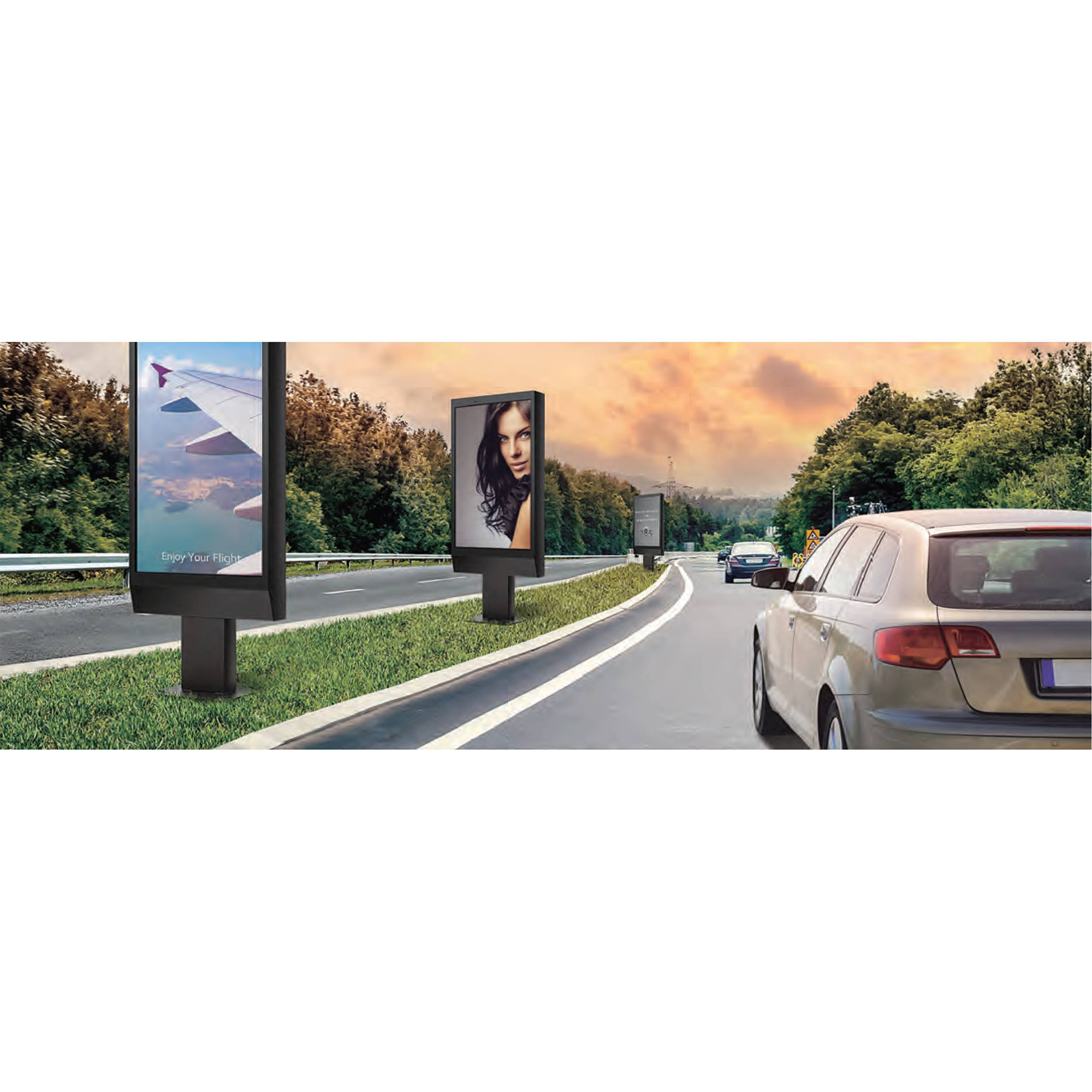

Engineered for standout visibility in the sun and year-round reliability, the LG 75XE3C 75" (75.52" Diagonal) Outdoor Commercial Signage pairs a 3,000 cd/m² high-brightness UHD 4K IPS panel with anti-reflection and QWP (Quarter Wave Plate) technology for clear viewing—even through polarized sunglasses. The IP56-rated, fully enclosed design features 9.5 mm protective glass, advanced localized dimming, smart brightness control, and wide operating temperatures from -30 °C to 50 °C (-22 °F to 122 °F). With webOS SoC, web monitoring, and versatile pro I/O (HDMI/DP/DVI, RJ45, RS-232C, USB 3.0, SD), 75XE3C is ready for outdoor wayfinding, transit, QSR drive-thru, stadiums, and retail façades.
Key Features
- 3,000 cd/m² (Typ.) UHD 4K IPS panel with wide 178° viewing
- Advanced Local Dimming for higher perceived contrast & clarity
- QWP + Anti-reflection for clear visibility with polarized sunglasses
- Smart Brightness Control adjusts luminance to ambient light
- IP56 dust/water protection & conformal-coated electronics
- 9.5 mm vandal-resistant front safety glass (P2A tested)
- Wide operating range: -30 °C to 50 °C; direct-sunlight capable
- webOS SoC + Web Monitoring (LG Control Manager) for remote control
- Pro I/O: HDMI / DisplayPort / DVI-D, RJ45, RS-232C, USB 3.0, SD, ext. spk out
- Portrait-only orientation with enclosure-grade thermal management
Featured Callouts
Captivates outdoors with UHD clarity and IPS wide viewing.
Sealed against dust/humidity with conformal-coated boards.
Stays visible through polarized sunglasses; low glare finish.
Impact-resistant front glass, designed for public spaces.
Features
High-Brightness Picture, Built for Sun
3,000 cd/m² typical brightness and anti-reflection coating keep content legible in direct sun. QWP ensures correct color/contrast when viewers wear polarized lenses.
Smarter Luminance & Dimming
Smart Brightness Control adapts output to ambient light to balance visibility and power use. Advanced Local Dimming manages backlight zones to deepen blacks and enhance detail.
Hardened Outdoor Enclosure
IP56 sealing, conformal-coated electronics, sealed airflow, and enclosure-grade thermal management handle dust, moisture, brake dust, and solar loading—no air filter required.
webOS SoC & Web Monitoring
Quad-core SoC running webOS 3.0 enables smooth playback and app tools. LG Control Manager web monitoring (via LAN) surfaces sensor data (temperature, ambient light, gyro) and remote controls for diagnosis and uptime.
Professional Connectivity
Three-signal digital input (HDMI / DP / DVI-D), plus RJ45, RS-232C, USB 3.0, SD, and external speaker out. DP daisy-chain supported for enclosure video wall use cases.
Included In The Box
- LG 75XE3C 75" UHD Outdoor Commercial Signage
- Remote Controller
- Phone-to-RS-232C Gender
- USB Cable
- HDMI Cable
- Quick Start & Regulatory Guides
- Limited 3-Year Manufacturer Warranty
Technical Specifications
| Model / Series | 75XE3C / XE3C Series |
|---|---|
| Screen Size | 75" Class (74.52" diag.) |
| Panel | IPS, Direct LED, UHD 3840 × 2160 (M+ RGBW) |
| Brightness | 3,000 cd/m² (Typ.), 2,400 cd/m² (Min.) through front glass |
| Contrast / Color | 1,200:1; 72% gamut; 10-bit (1.07B) |
| Viewing Angle | 178° (H) / 178° (V) |
| Response / Refresh | 8 ms (G-to-G BW, Typ.) / 60 Hz |
| Surface / Optics | AGLR ~3% haze, QWP, anti-reflection |
| Lifetime / Hours | 50,000 hrs; 24-hour operation; portrait-only |
| Protection | IP56 enclosure; conformal-coated boards |
| Front Glass | 9.5 mm AR front safety vandal glass (P2A tested) |
| Operating Range | -30 °C to 50 °C (-22 °F to 122 °F); 5–100% RH |
| Platform | webOS 3.0; Quad-Core SoC |
| Remote Monitoring | LG Control Manager (LAN; temp/ALS/gyro sensors) |
| Inputs | HDMI (HDCP 2.2), DisplayPort (HDCP 1.3), DVI-D; USB 3.0; SD (SDHC, full-size); RJ45; RS-232C |
| Outputs | DisplayPort (for enclosure video wall), External Speaker Out (L/R) |
| Max Input Resolution | 3840 × 2160 @ 60 Hz (HDMI/DP) |
| Audio Power | 20 W total (10 W × 2) |
| Power Supply | 100–240 VAC, 50/60 Hz; internal PSU |
| Power Consumption | Typ. 750 W (full-white); 403 W (IEC 62087); Max 1,000 W; DPM 1 W; Off 0.5 W |
| Bezel Width | Top 110 mm / Bottom 230 mm / Left/Right 73.3 mm |
| Dimensions (W × H × D) | 1,991.6 × 1,075.6 × 218.9 mm (78.4 × 42.3 × 8.6 in) – without stand |
| Weight | Head 180 kg (396 lb); with optional stand 247 kg (544 lb) |
| Packing | 2,296 × 1,292 × 468 mm; packed 210 kg |
| Certifications | UL/cUL, CB; FCC Class A / CE / KC; Energy Star: No |
| Accessories | Remote, QSG/Manual/Reg Book, Phone-to-RS232C Gender, USB Cable, HDMI Cable; Optional Stand (ST-750X) |
| Warranty | Limited 3-Year Manufacturer Warranty |
