Product Details





Reference-Class Mini-LED Engineering

The TCL X11L Series defines a new performance tier: a super-charged Mini-LED architecture (SQD-Mini LED) combined with the TSR AI Processor to dynamically optimize color, contrast, motion and backlighting on a per-scene basis. TCL Halo Control — with up to LD20,000 precise dimming zones and micro-optical control — eliminates bloom while supporting extraordinary HDR highlights up to 10,000 nits. The WHVA 2.0 Ultra Panel with ZeroBorder™ delivers wide viewing angles and a blade-thin industrial profile, and a 144Hz native panel with Motion Rate 480 preserves clarity for fast action and gaming. Expandable Home Theater audio by Bang & Olufsen adds an integrated, center-channel focused soundfield with optional satellite/subwoofer expansion for room-filling Dolby Atmos immersion.

TCL Halo Control
Advanced micro-optical architecture and a 26-bit backlight controller for halo-free contrast and precise local dimming control.
TSR AI Processor
Machine-learning driven processing that optimizes clarity, color purity, motion de-judder and upscaling in real time.
TCL Game Pack
Game Accelerator 288, VRR, AMD FreeSync Premium Pro and a Game Bar for low latency, high frame-rate gaming at up to 4K@144Hz.

Core Technologies & System Capabilities

Display

SQD-Mini LED & TCL Deep Color System

Super Quantum Crystals + UltraColor Filter and an Advanced Color Purity Algorithm deliver extended gamut and superior color volume. The SQD-Mini LED backlight orchestrates the UltraColor front-end for vibrant, accurate color with refined skin tones and deep blacks.

Backlight

TCL Halo Control — LD20,000

Up to 20,000 discrete precise dimming elements and micro-optics reduce blooming to negligible levels while supporting specular highlights for true HDR impact.

Brightness

Up to 10,000 Peak Nits

Industry-leading peak luminance delivers sustained highlight performance in bright rooms and preserves HDR detail across complex scenes.

Panel

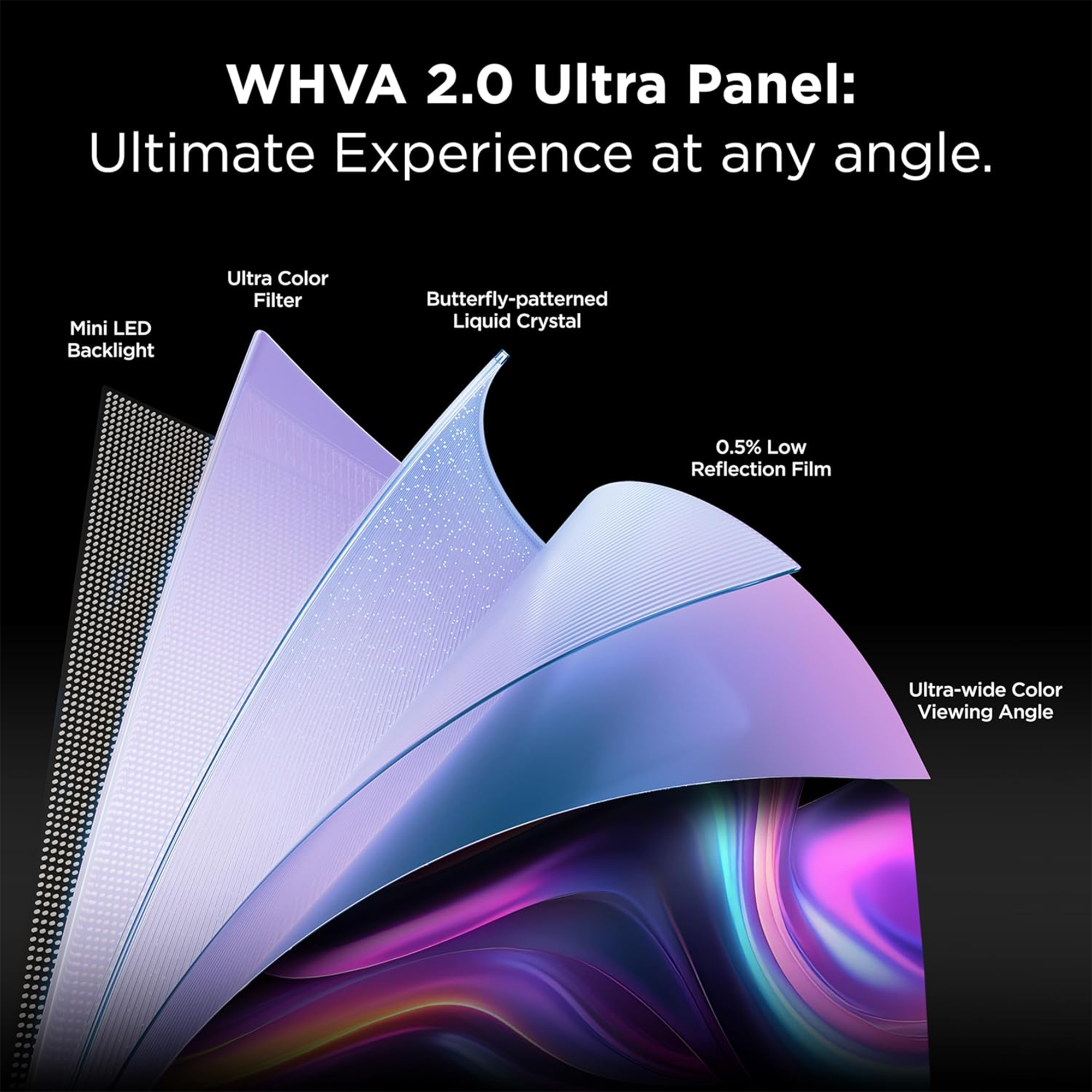

WHVA 2.0 Ultra Panel & ZeroBorder™

Wide-angle high-viewing panel with anti-reflective coating and an ultra-thin profile for consistent color and contrast from large seating arrangements.

Motion

144Hz Native • Motion Rate 480

Native 144Hz refresh combined with MEMC (Motion Estimation / Motion Compensation) yields exceptional motion clarity and reduced blur for sports and fast action.

Audio

Expandable Home Theater — Audio by Bang & Olufsen

Integrated spatial architecture with built-in subwoofers, center and surround channels; Dolby Atmos certified with optional wireless Z100 satellite and Z100-SW subwoofer expansion.

Key Features

SQD

SQD-Mini LED Architecture

Integrated Deep Color and Halo Control for halo-free imaging and high dynamic range fidelity.

COLOR

TCL Deep Color System

Super QLED + UltraColor Filter + Color Purity Algorithm for extended BT.2020 performance and accurate colorimetry.

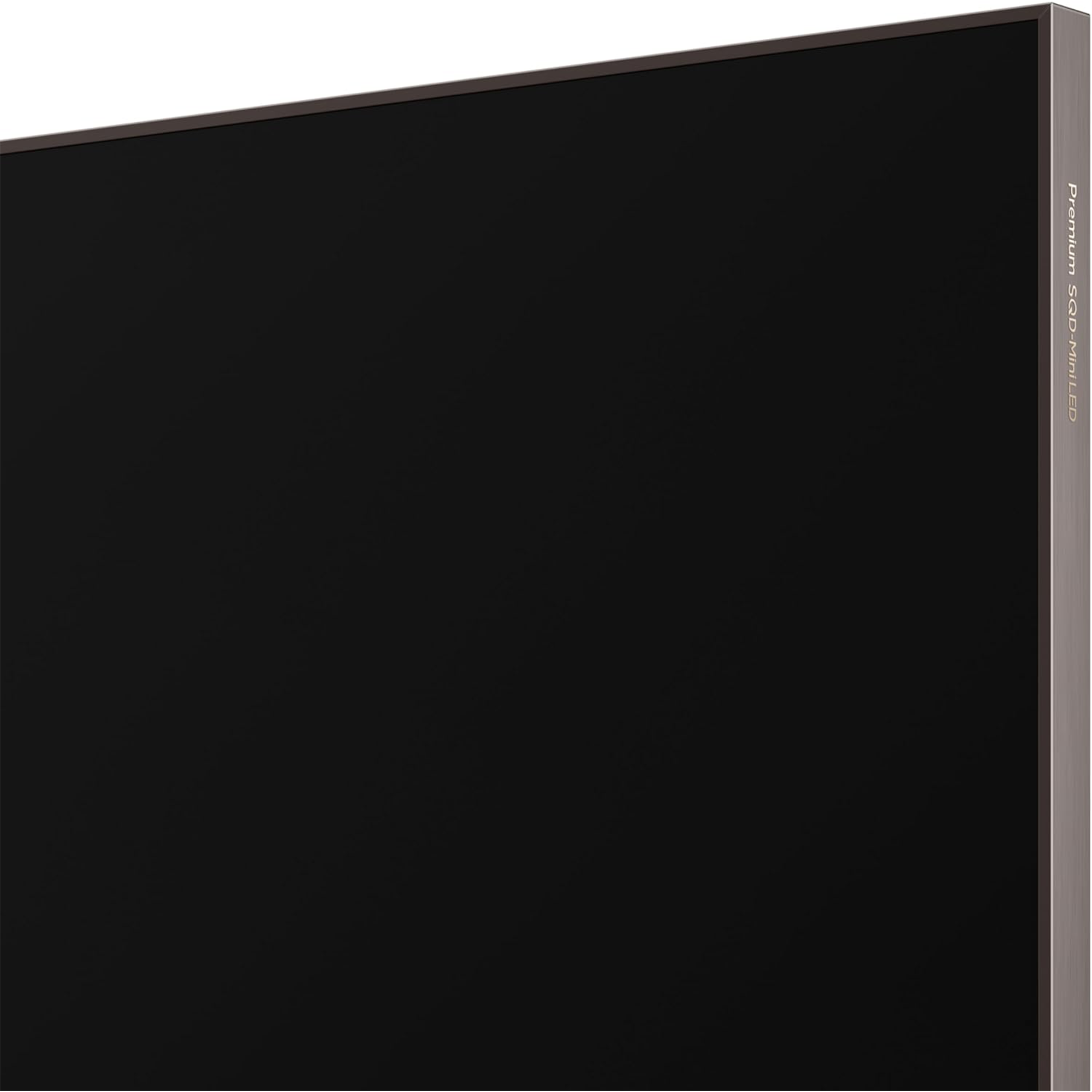

PANEL

WHVA 2.0 Ultra Panel

ZeroBorder™ edge-to-edge metal bezel design with broad viewing angles and anti-glare surface.

DIM

Up to LD20,000 Precise Dimming

Micro-dimming series for granular local backlight control and optimized black uniformity.

HDR

Up to 10,000 Peak Nits

High peak luminance for specular highlight rendering and robust HDR playback in mixed-light environments.

AUDIO

Audio by Bang & Olufsen

Integrated high-fidelity spatial system with Dolby Atmos and optional wireless expansion for immersive home theater.

Technical Specifications

Core Display
Model
85X11L
Screen Size
85" (84.6" viewable)
Panel Type
WHVA 2.0 Ultra Panel
Resolution
4K UHD (3840 × 2160)
Native Refresh
144Hz (Motion Rate 480 with MEMC)
Color
1.07 billion colors • Super QLED / UltraColor
HDR
Dolby Vision IQ, HDR10, HDR10+, HLG
Backlight & Processing
Backlight
SQD-Mini LED
Dimming
Up to LD20,000 Precise Dimming Series
Peak Brightness
Up to 10,000 Peak Nits
Processor
TSR AI Processor (AI Picture, Motion & Backlight Control)
Halo Control
TCL Halo Control System — micro-optical + 26-bit backlight controller
Audio & Smart Platform
Audio System
Audio by Bang & Olufsen — Integrated spatial system with built-in subs / center / surrounds
Expansion
Dolby Atmos FlexConnect — up to 4× Z100 + 1× Z100-SW
Smart OS
Google TV (with Art Mode, voice remote — far-field mic)
Casting
Chromecast • Apple AirPlay 2
Voice
Works with Alexa / Google Assistant • Hands-Free voice option
Gaming & Motion
Game Pack
Game Accelerator 288 • Game Bar • ALLM
VRR
VRR • AMD FreeSync Premium Pro
Max Input
4× HDMI 2.1 (4K@144Hz), HDMI 1 with eARC
IMAX Enhanced
Yes
Connectivity
HDMI
4× HDMI 2.1 (4K@144Hz) — HDMI 1 eARC
USB
1× USB 3.0, 2× USB 2.0
Ethernet
1× RJ-45
Optical
1× SPDIF Optical Out
Wireless
Wi-Fi 6 • Bluetooth 5.4
Physical & Power
Dimensions (With Stand)
74.0" × 45.3" × 15.0"
Dimensions (Without Stand)
74.0" × 43.5" × 0.8"
Weight
With Stand: 116.0 lbs • Without Stand: 112.9 lbs

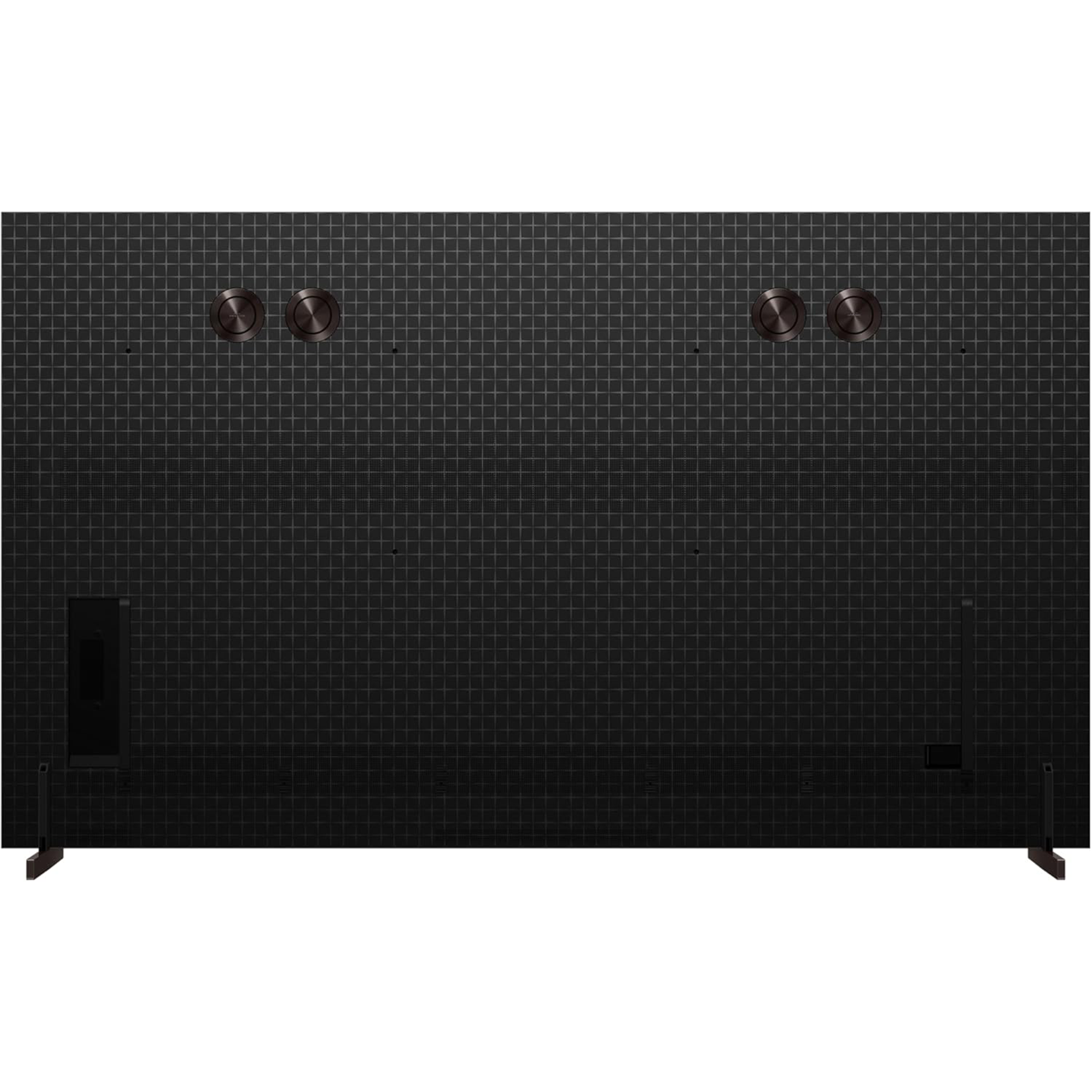

VESA
600 × 400 mm (M8)
Finish
Mocha Metal front • Black back
Packaging & Certification
Package Size
81.10" × 50.70" × 11.50"
Total Package Weight
168.20 lbs
Certification
ETL/UL/NOM, FCC/IC ID
Warranty
1-Year Limited Warranty
UPC
846042050609

What’s in the Box

📦
TCL 85" X11L Series (85X11L)
Power cord (detachable), backlit voice remote (RC933B), quick start guide and warranty card included.
🎛️
Remote Control (RC933B)
Backlit voice remote, AAA ×2 batteries included.
🔌
Power Cord
Detachable power cord for regional connectivity.
📘
Documentation & Warranty
Quick start guide, user manual and 1-year limited warranty card.

Halo-Free HDR, AI-Driven Fidelity

The TCL X11L Series is engineered to elevate premium living rooms — a technical platform tuned for spec-grade HDR, extreme luminance and motion fidelity, supported by an AI processing pipeline and a high-performance audio subsystem. It is purpose-built for discerning viewers and gamers who require halo-free contrast, cinematic color and integrated, expandable audio.

SQD-Mini LED
LD20,000
10,000 Peak Nits
TSR AI Processor
Audio by B&O

Included in the Box
