Product Details





Halo-Free HDR at Scale

The TCL X11L Series 98" platform is engineered to deliver reference-class HDR performance at large scale. SQD-Mini LED backlighting integrates Super Quantum Crystals and UltraColor filtering with the TCL Halo Control System and a 26-bit backlight controller to manage up to 20,000 precise dimming zones. The TSR AI Processor dynamically optimizes picture clarity, motion, color and backlight control per scene while a 144Hz native WHVA 2.0 panel maintains extraordinary motion fidelity. The result: halo-free contrast, extreme peak luminance up to 10,000 nits and consistent color across wide viewing angles — plus expandable Audio by Bang & Olufsen for room-filling Dolby Atmos immersion.

TCL Halo Control System
Micro-optical architecture and precise 26-bit backlight control eliminate bloom while supporting dramatic HDR highlights.
TSR AI Processor
AI-driven scene analysis for adaptive upscaling, contrast optimization, motion refinement and backlight orchestration.
Expandable Home Theater
Integrated spatial audio by Bang & Olufsen with optional wireless satellite and subwoofer expansion for immersive Dolby Atmos soundscapes.

Core Technologies & System Capabilities

DISPLAY

SQD-Mini LED & Deep Color System

Super Quantum Crystals (Super QLED) combined with an UltraColor filter and Advanced Color Purity algorithm deliver extended gamut and precise colorimetry across BT.2020 color space.

BACKLIGHT

TCL Halo Control — Up to LD20,000

Up to 20,000 discrete precise dimming elements and micro-optics minimize blooming and enable unparalleled black uniformity and HDR highlights.

BRIGHTNESS

Up to 10,000 Peak Nits

Extraordinary peak luminance sustains HDR detail in bright environments and renders specular highlights with precision.

PANEL

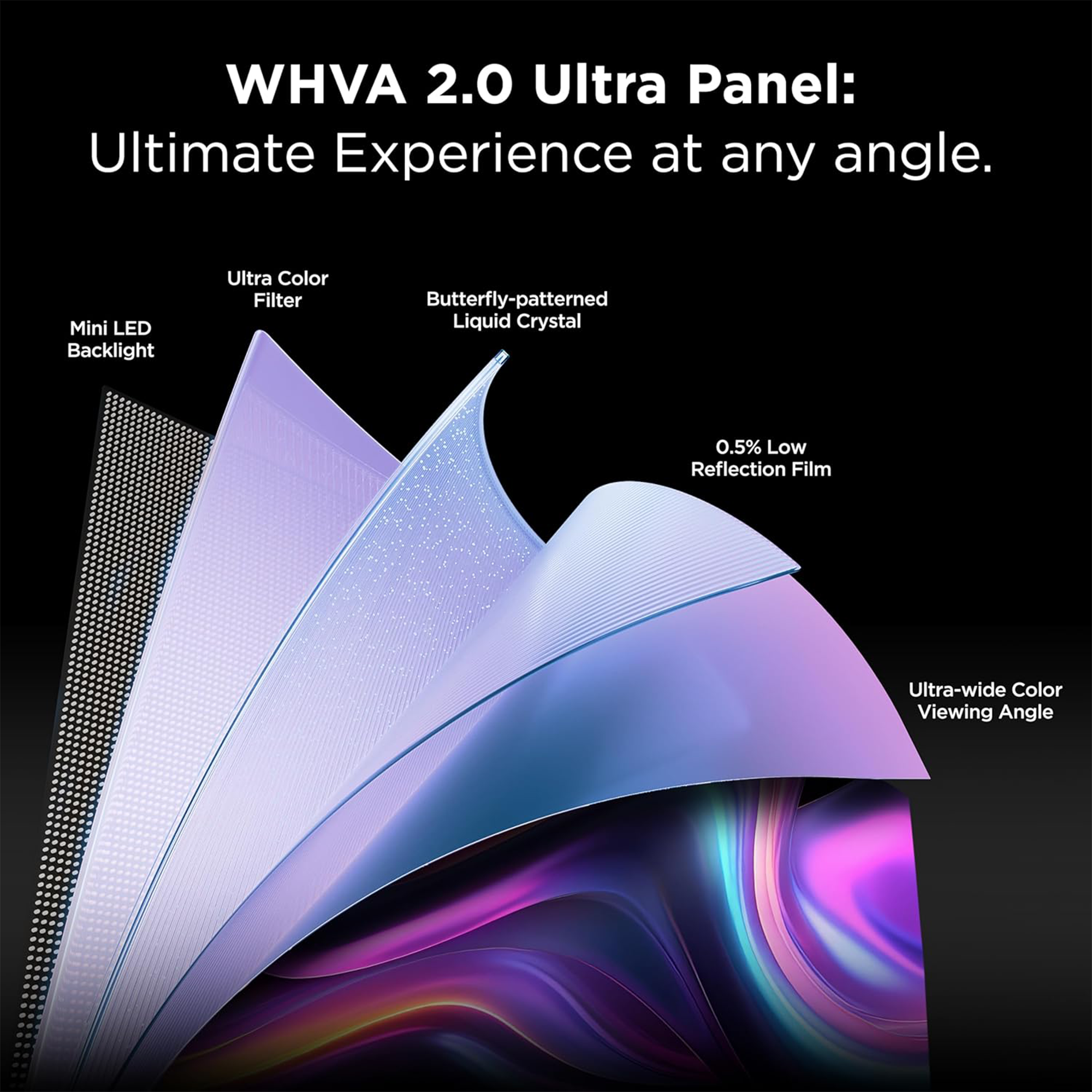

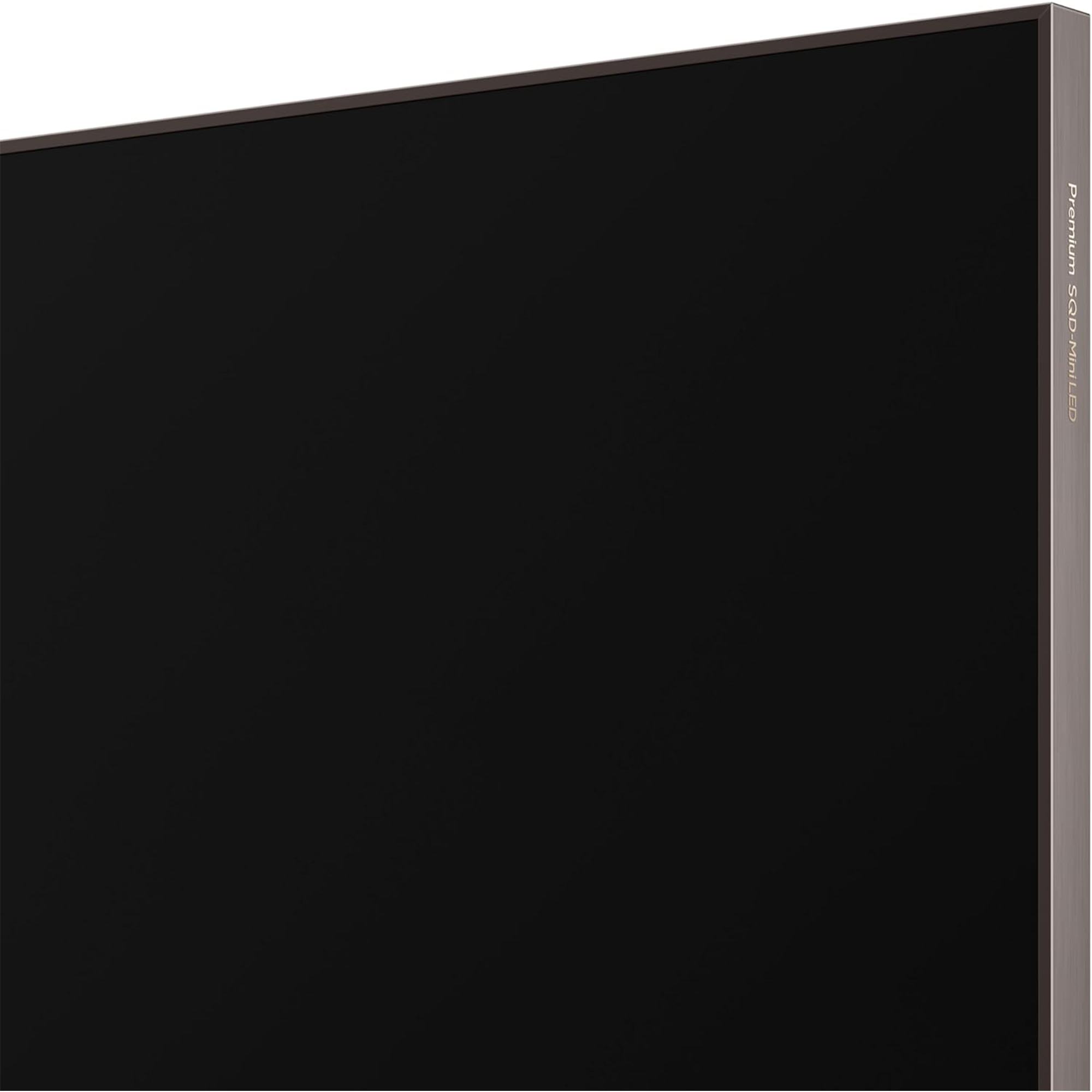

WHVA 2.0 Ultra Panel & ZeroBorder™

Wide-angle high-view panel with anti-reflective coating, edge-to-edge ZeroBorder™ design and an ultra-thin industrial profile.

MOTION

144Hz Native • Motion Rate 480

Native 144Hz refresh rate with MEMC (Motion Estimation / Motion Compensation) for exceptional motion tracking and reduced blur.

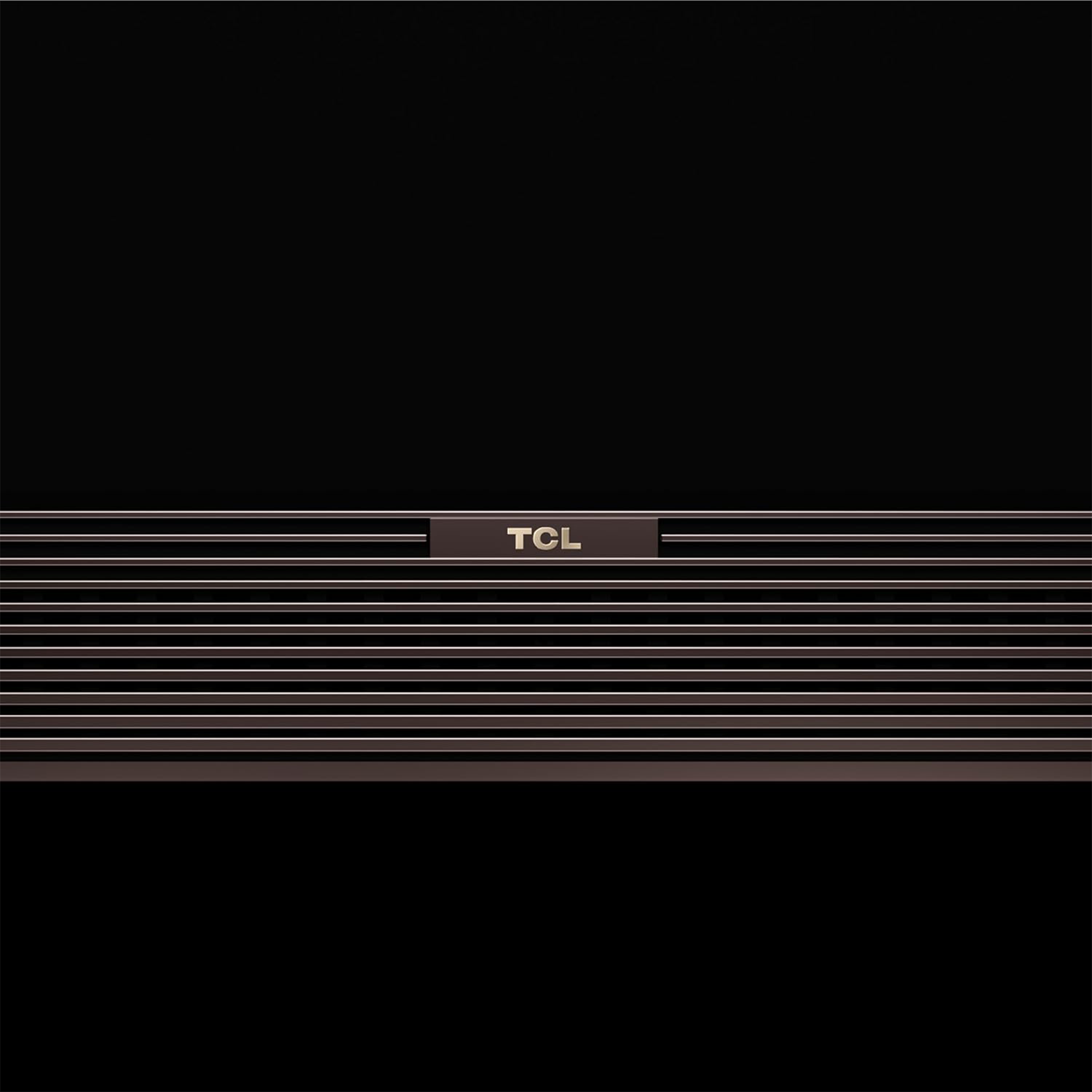

AUDIO

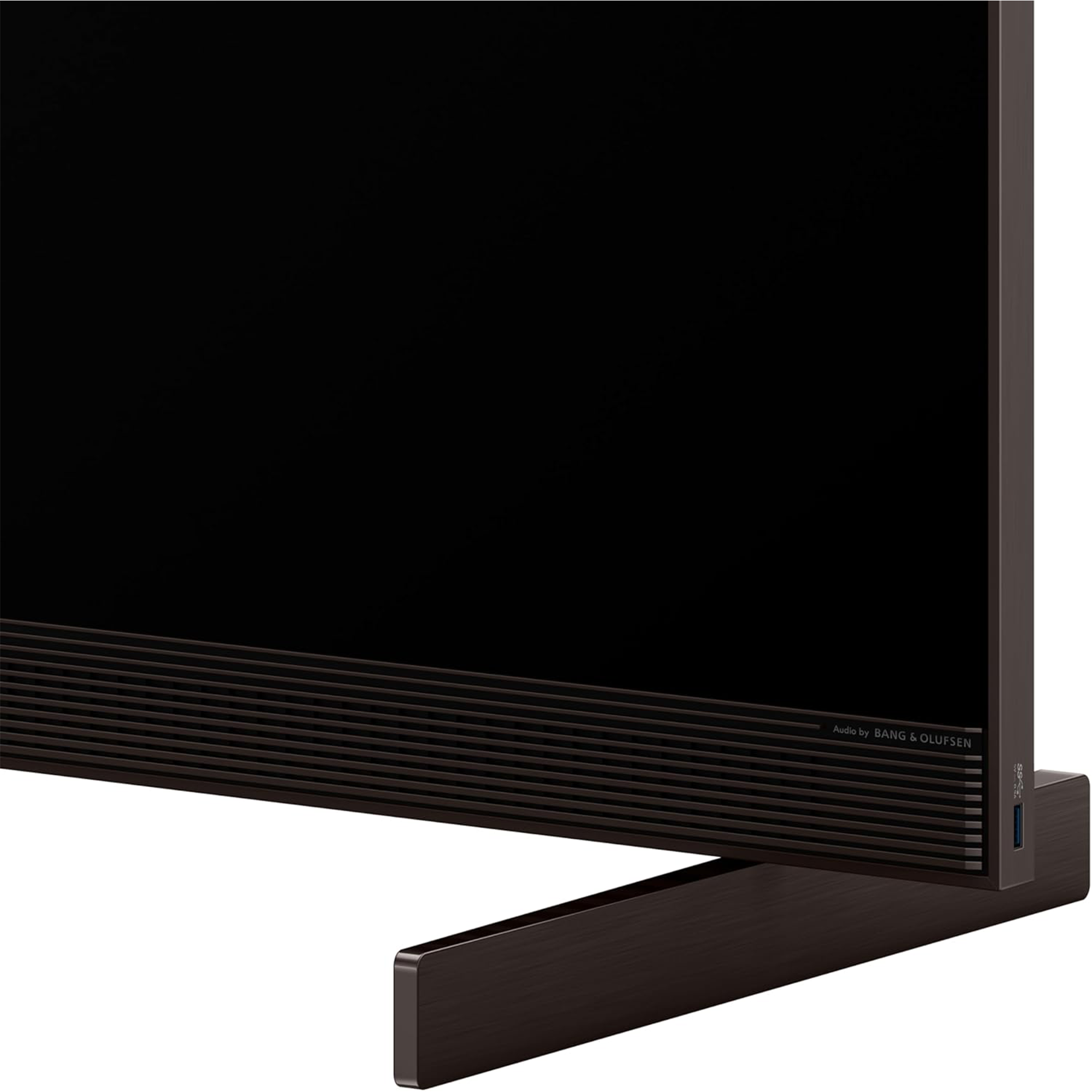

Audio by Bang & Olufsen

Integrated multi-channel spatial audio with built-in subs, center and surround channels; Dolby Atmos FlexConnect for wireless expansion.

Key Features

SQD

SQD-Mini LED Architecture

Integrated Deep Color and Halo Control for granular backlight control and halo-free imaging.

COLOR

TCL Deep Color System

Super QLED + UltraColor Filter + Color Purity Algorithm to maximize color volume and accuracy.

DIM

Up to LD20,000 Precise Dimming Series

Micro-dimming series for surgical local dimming and improved black uniformity at large screen sizes.

HDR

Up to 10,000 Peak Nits

High peak luminance for realistic specular highlights and HDR impact in mixed lighting.

GAME

TCL Game Pack

Game Accelerator 288, VRR, FreeSync Premium Pro and Game Bar for console and PC gaming up to 4K@144Hz.

SMART

Google TV & Connectivity

Google TV, Chromecast, Apple AirPlay 2, Wi-Fi 6, Bluetooth 5.4, far-field voice and robust custom install options.

Technical Specifications

Core Display
Model98X11L
Screen Size98" (97.5" viewable)
Panel TypeWHVA 2.0 Ultra Panel
Resolution4K UHD (3840 × 2160)
Native Refresh144Hz (Motion Rate 480 with MEMC)
Display Colors1.07 billion
HDRDolby Vision IQ, HDR10, HDR10+, HLG
Backlight & Processing
BacklightSQD-Mini LED
DimmingUp to LD20,000 Precise Dimming Series
Peak BrightnessUp to 10,000 Peak Nits
ProcessorTSR AI Processor
Halo ControlMicro-optical architecture + 26-bit backlight controller
Audio & Smart Platform
Audio SystemAudio by Bang & Olufsen — integrated spatial system with built-in subs/center/surround
Dolby AtmosDolby Atmos FlexConnect capable (up to 4× Z100 + 1× Z100-SW)
Smart OSGoogle TV with Art Mode, voice remote (backlit), far-field mic
CastingChromecast • Apple AirPlay 2
VoiceWorks with Alexa / Google Assistant / Apple HomeKit
Gaming & Motion
Game PackGame Accelerator 288 • Game Bar • ALLM
VRRVRR • AMD FreeSync Premium Pro
Inputs4× HDMI 2.1 (4K@144Hz) — HDMI 1 eARC
IMAX EnhancedYes

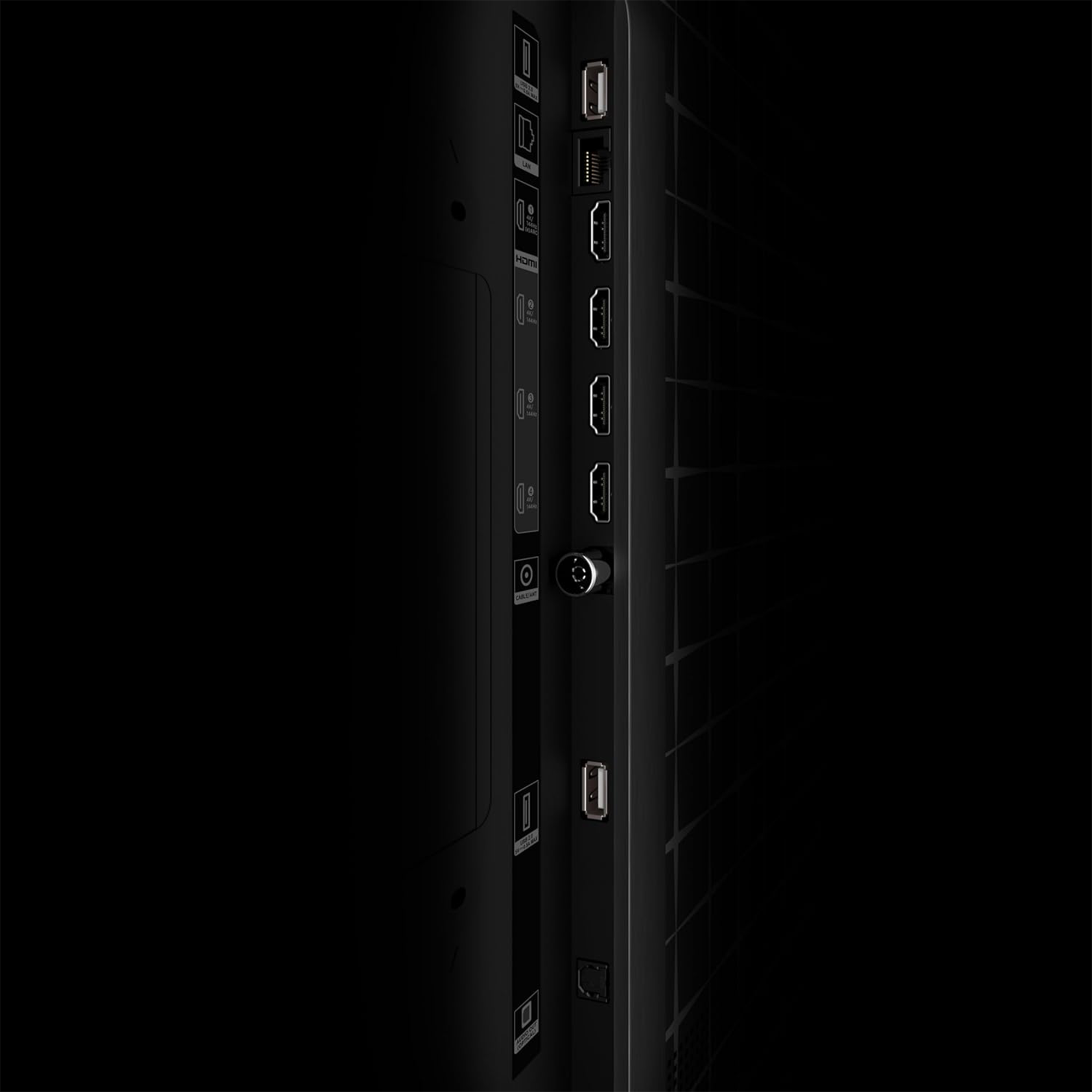

Connectivity
HDMI4× HDMI 2.1 (4K@144Hz)
USB1× USB 3.0, 2× USB 2.0
Ethernet1× RJ-45
Optical1× SPDIF Optical Out
WirelessWi-Fi 6 • Bluetooth 5.4
Physical & Power
Dimensions (With Stand)85.3" × 51.7" × 16.5"

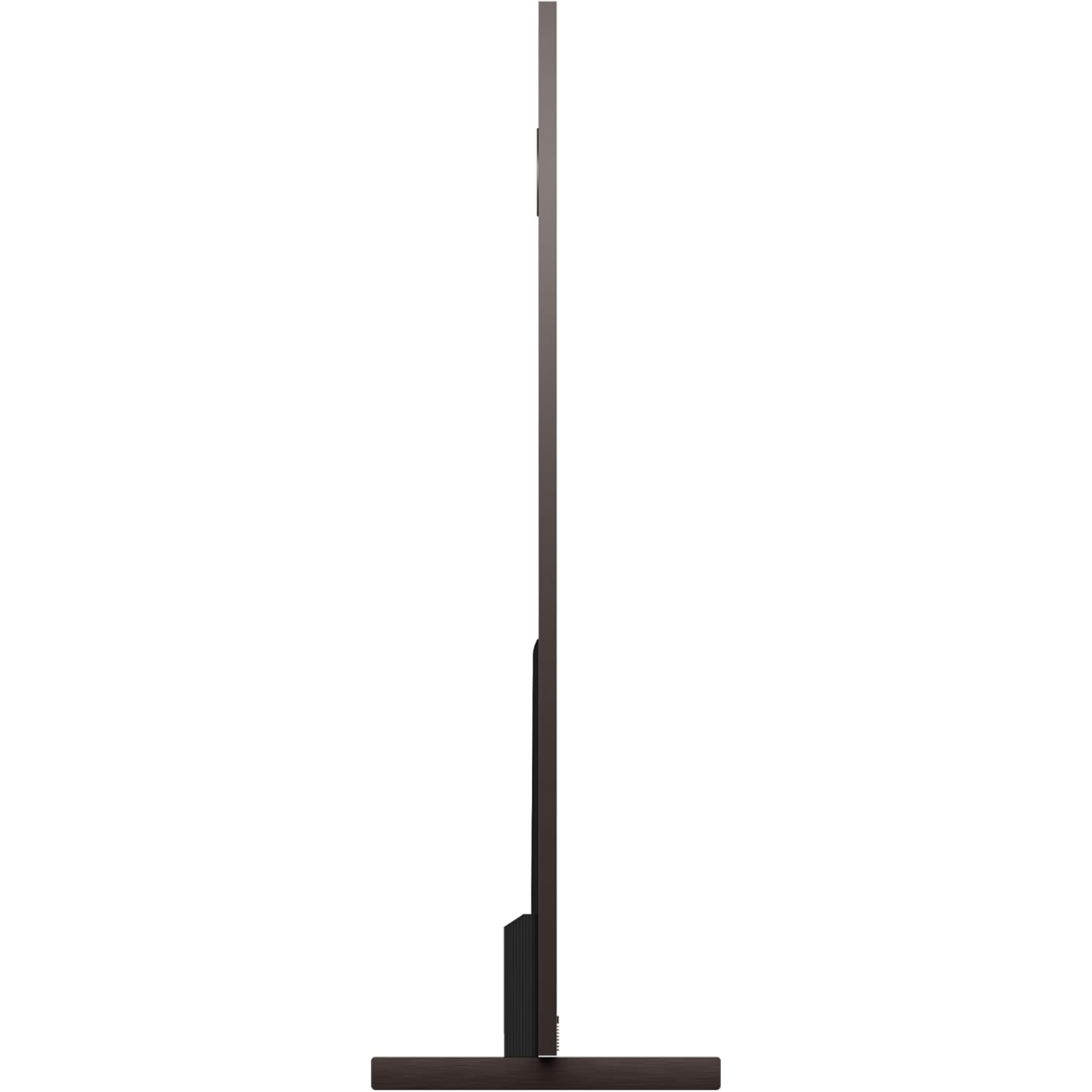

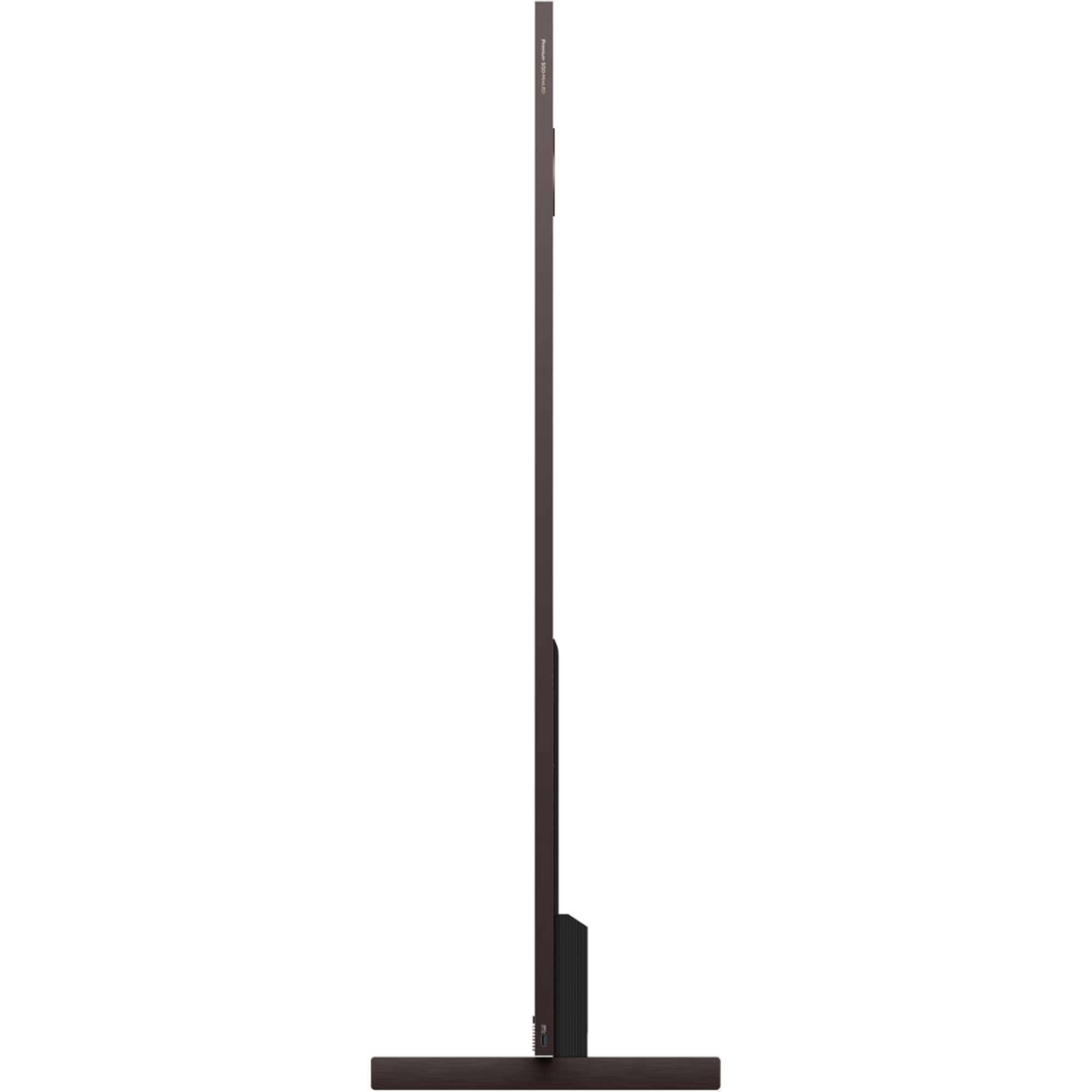

Dimensions (Without Stand)85.3" × 49.8" × 0.8"
WeightWith Stand: 148.81 lbs • Without Stand: 145.50 lbs

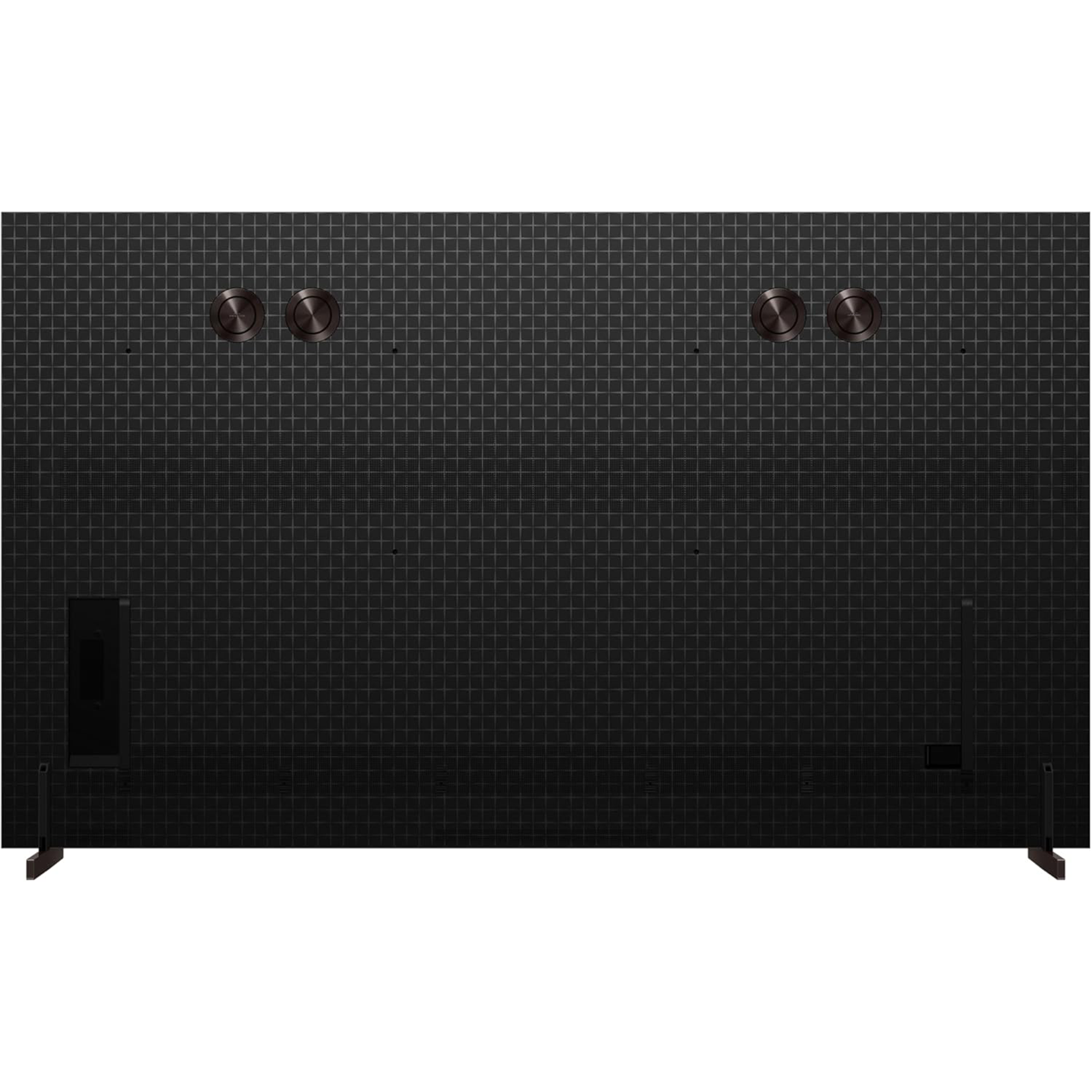

VESA600 × 400 mm (M8)
FinishMocha Metal front • Black back
Packaging & Certification
Package Size94.29" × 62.76" × 12.99"
Total Package Weight224.87 lbs
CertificationETL/UL/NOM • FCC/IC ID
Warranty1-Year Limited Warranty
UPC846042050616

What’s in the Box

📦
TCL 98" X11L Series (98X11L)
Detachable power cord, backlit voice remote (RC933B), quick start guide and warranty card included.
🎛️
Backlit Voice Remote (RC933B)
Far-field mic array, push-to-talk and backlight, 2× AAA batteries included.
🔌
Power Cord
Detachable power cord for regional connectivity.
📘
Documentation & Warranty
Quick start guide, user manual and 1-year limited warranty card.

Engineered for Cinematic Scale

The TCL X11L Series 98" platform is purpose-built for large-format, high-dynamic range experiences — combining micro-optical backlight engineering, AI-driven image processing, and premium spatial audio. It is an integrated solution for discerning viewers, custom installers and competitive gamers who require halo-free HDR, extreme luminance and precision motion performance.

SQD-Mini LED
LD20,000
10,000 Peak Nits
TSR AI Processor
Audio by B&O
