Product Details

Pair (2 Speakers) Full-Range Ceiling 4" Double-Layer Cone 40 kHz Extension Slim Flush-Mount Magnetic Paintable Grille Sealed Back Cover 30W RMS • 90W Peak 8Ω Load

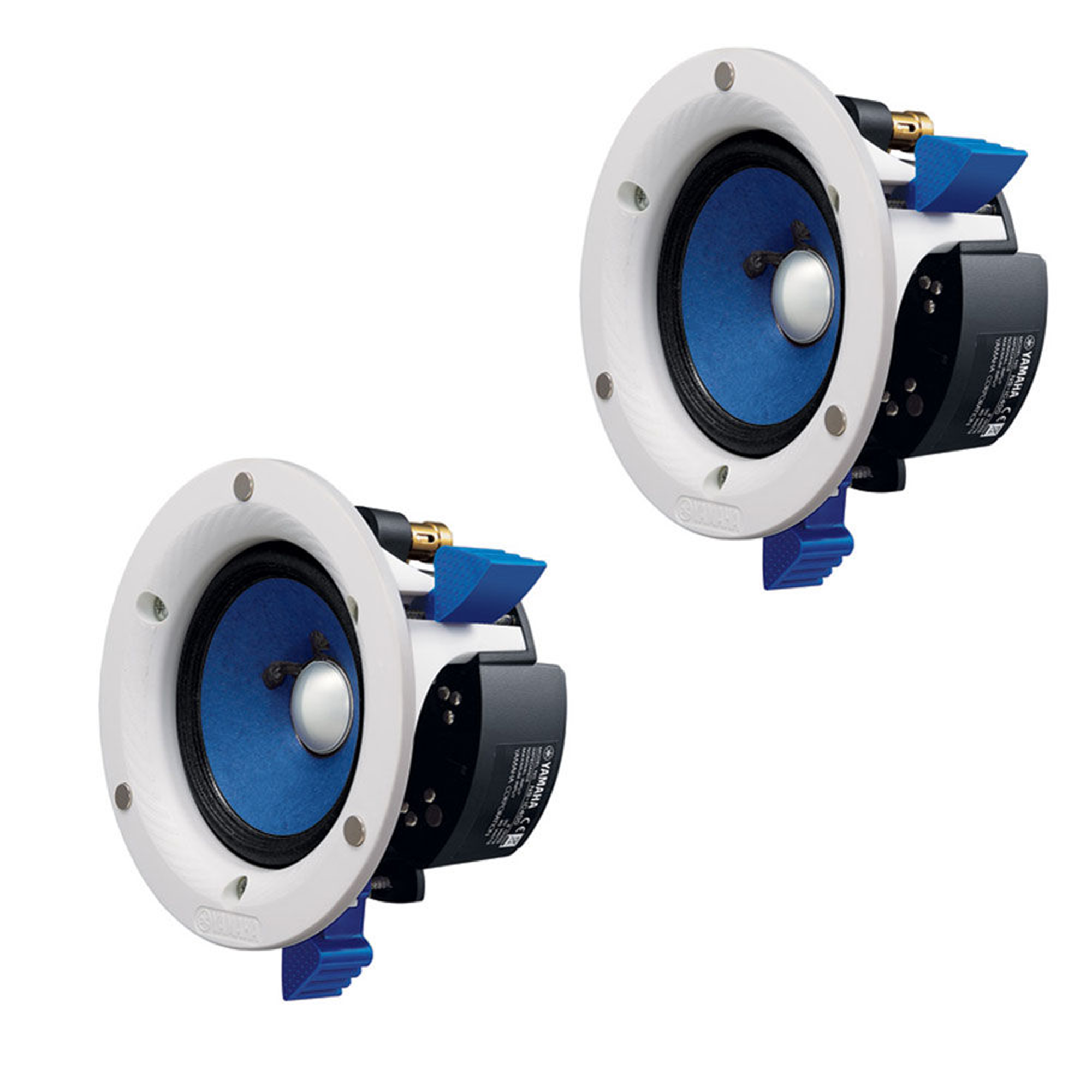

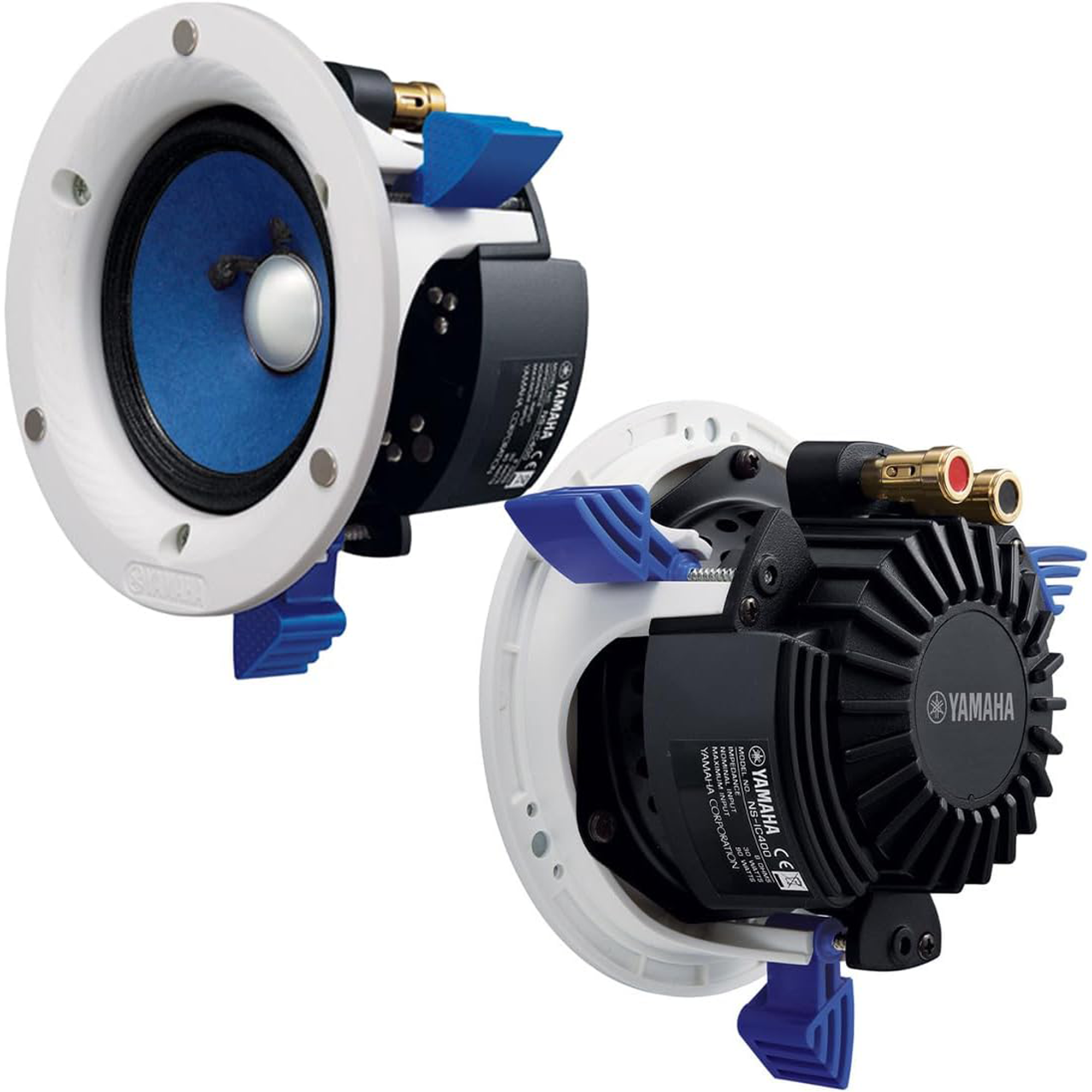

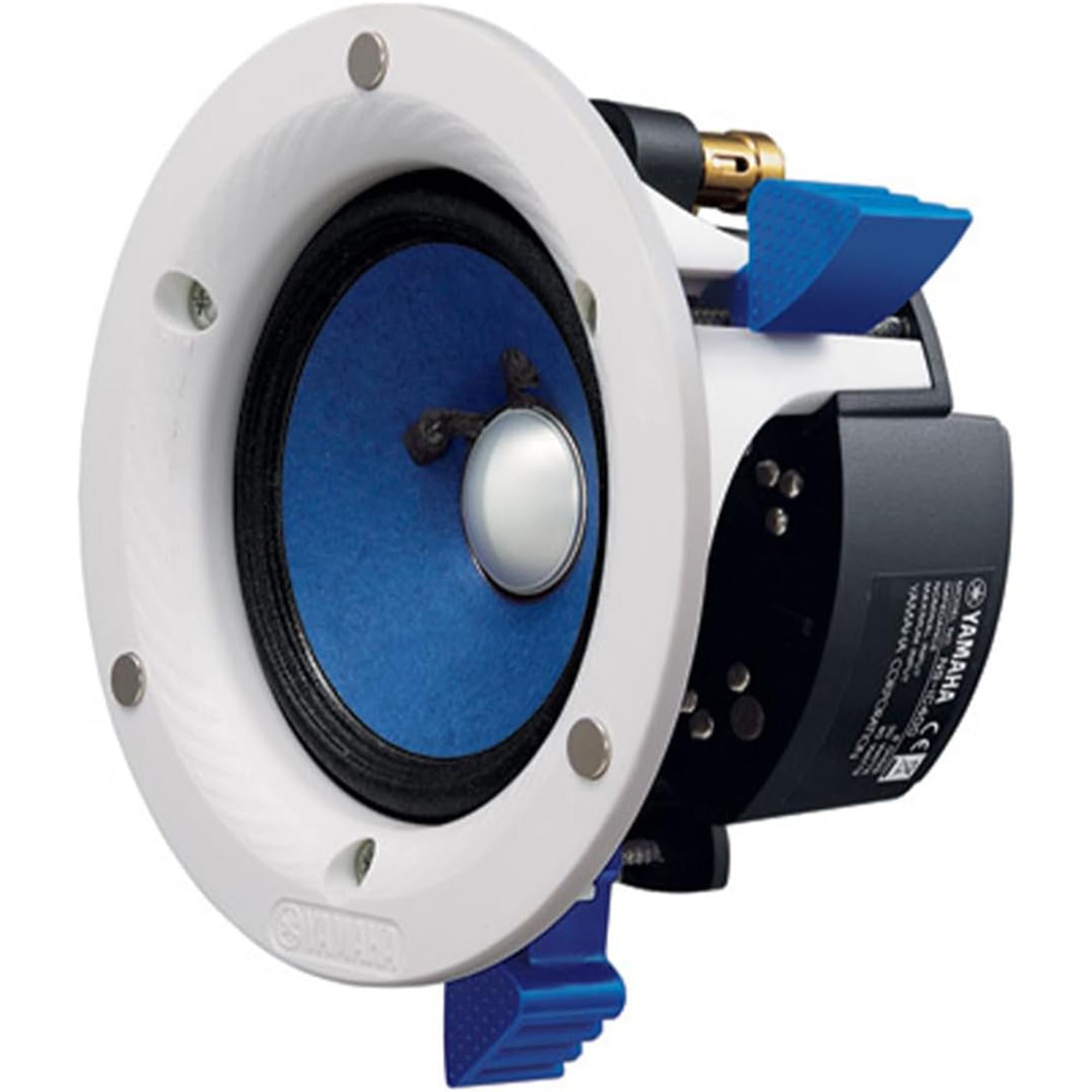

Yamaha NS-IC400 4" Full-Range In-Ceiling Speakers (White, Pair)

Discreet architectural audio with full-range voicing, high-frequency extension, and a flush, paint-ready finish

Designed to disappear into bright, modern ceilings while preserving musical detail, the NS-IC400 pair delivers full-range in-ceiling performance from a compact 4" platform. Yamaha’s double-layer cone construction and ridge-shaped aluminum center cap are engineered to smooth response across the spectrum, while a grain-finished acoustic baffle with a spiral dispersion pattern supports natural room fill. A magnetic, paintable grille enables clean installs with zero visible screw heads, and a sealed back cover helps protect the driver assembly from dust and moisture in real-world ceiling environments.

✔ Pair for stereo zones ✔ 30W RMS / 90W peak handling ✔ 95 Hz–40 kHz (-10 dB) response ✔ Magnetic paintable grilles ✔ 8Ω impedance • 85 dB sensitivity ✔ Slim, flush-mount profile

Clean Architectural Integration with Natural, Full-Range Tonality

The NS-IC400 is optimized for discreet background music and distributed-audio deployments where visual impact must be minimal and intelligibility must remain high. A stair-like surround profile and aluminum center cap geometry help smooth transitions from low to high frequencies, while the spiral-pattern baffle supports more even dispersion. For long-term reliability, the sealed back cover protects key components from common ceiling contaminants such as dust and ambient moisture.

95–40k
Response
Hz (-10 dB)
30W
RMS Power
90W peak
Impedance
Amp friendly
85 dB
Sensitivity
Rated output

Magnetic grilles remove visible fasteners for a higher-end ceiling finish and faster service access.

Core Capabilities

🎶

4" Double-Layer Cone for Natural Tonality in Compact Ceilings

Double-layer cone construction helps maintain controlled behavior through the driver’s operating range, supporting more natural timbre for voice and music. The compact form factor is ideal for smaller rooms, hallways, and distributed zones where refined, low-visual-impact audio is the priority.

Driver3.9" / 10 cm full-range
ConfigurationFull-range in-ceiling
Impedance8 Ω
Sensitivity85 dB

Response Smoothing Geometry for Cleaner Low-to-High Transition

A ridge-shaped aluminum center cap paired with a stair-like surround profile is engineered to smooth frequency response from low to high, helping reduce unevenness in the presence region for more consistent listening across typical in-room seating.

HF ExtensionUp to 40 kHz (-10 dB)
LF/HF Range95 Hz to 40 kHz (-10 dB)
Design DetailAluminum center cap
SurroundStair-like profile
📈
🌀

Spiral-Pattern Acoustic Baffle for Natural Dispersion

The grain-finished baffle with a spiral dispersion pattern supports more even room fill—helping reduce “hot spots” directly under the speaker and improving perceived balance as you move through the space.

BaffleGrain-finished acoustic baffle
DispersionSpiral pattern for room fill
EnclosureOpen-back design
MountFlush in-ceiling profile

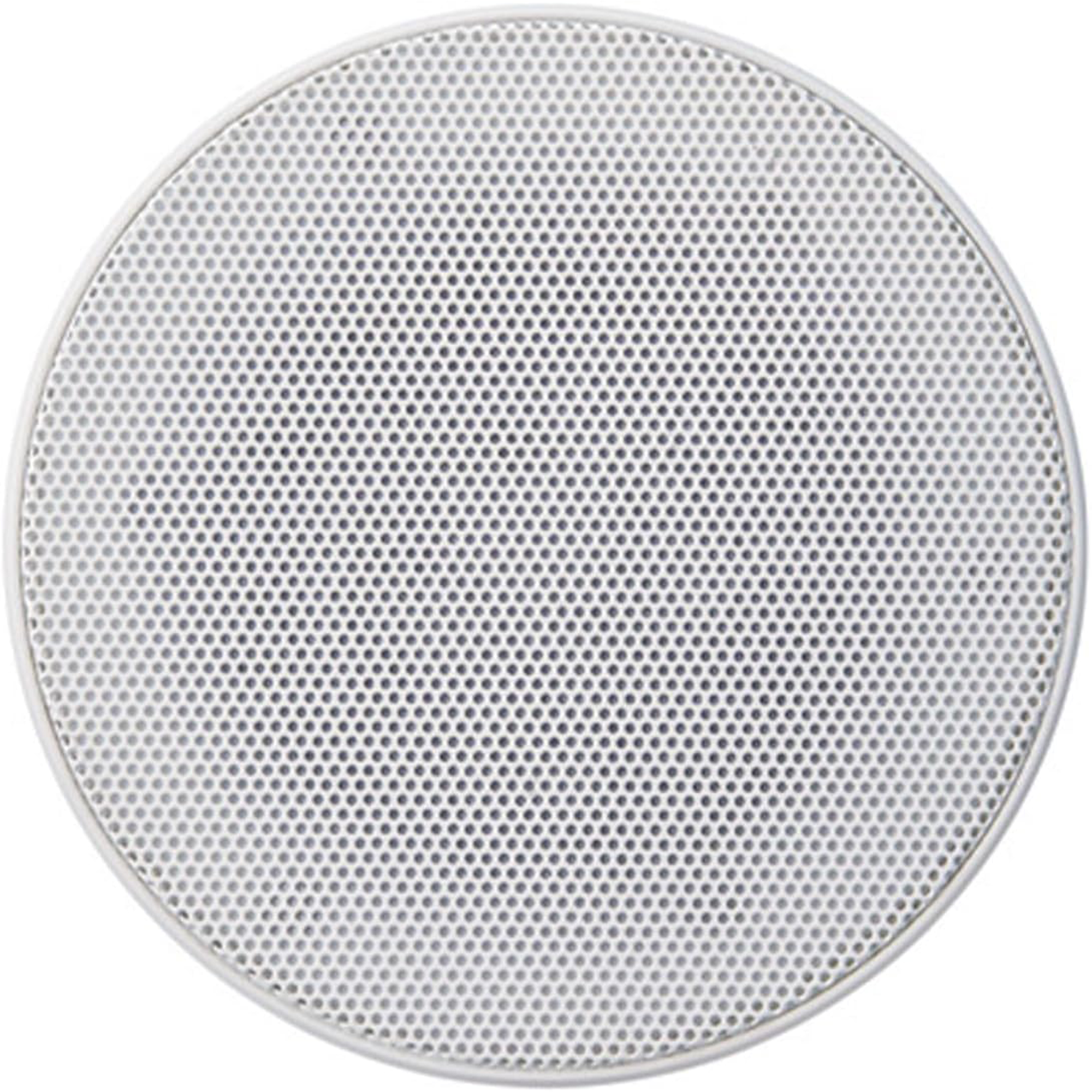

Magnetic, Paintable Grille for Luxury-Grade Finish

Magnetic grille attachment eliminates visible screw heads, delivering a cleaner architectural aesthetic. The grille is paintable to color-match ceilings for an intentionally minimal look across modern interiors.

GrilleMagnetic • paintable
ServiceFast access without fasteners
Cutout Size4.8" / 122 mm
Mount Thickness0.2–1.2" / 5–30 mm
🎨
🛡️

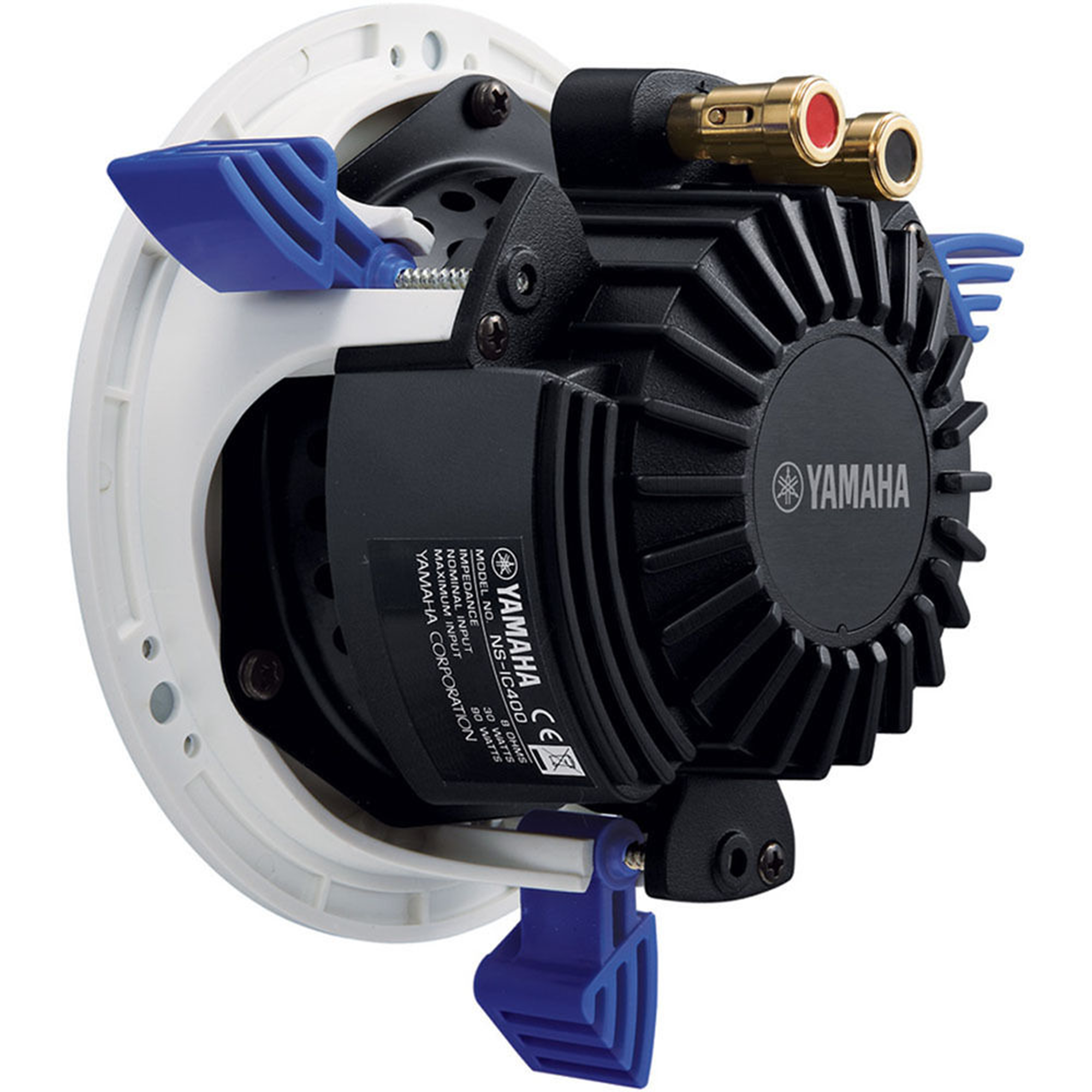

Sealed Back Cover for Dust & Moisture Protection

A sealed back cover helps protect the speaker assembly and internal components from dust accumulation and ambient moisture—useful in active households and ceiling cavities where environmental exposure is a reality.

ProtectionSealed back cover
Cutout Depth3.1" / 78.7 mm
Dimensions5.9" × 3.4" (150 × 86.5 mm)
Weight1.8 lb / 0.8 kg (each, w/ grille)

Key Features

Compact full-range ceiling audio with a premium magnetic finish and installer-friendly fit

👥

Pair for Stereo Zones

Pair

Two matched in-ceiling speakers for clean stereo deployment across compact and mid-size spaces.

2 speakersBalanced zonesDiscreet look
🔊

Full-Range Driver

FR

4" double-layered full-range driver for cohesive voicing and simplified amplification requirements.

3.9" driverNatural tonalityCompact cutout
🧲

Magnetic Paintable Grille

Finish

Magnetic attachment removes visible screws; paint-ready grille blends seamlessly into the ceiling plane.

No screw headsPaintableQuick access
🛡️

Protected Assembly

Reliability

Sealed back cover helps protect components from dust and moisture in real-world ceiling cavities.

Sealed backCleaner operationLong-term stability

Technical Specifications

Speaker System
Included Speakers2 (pair)
ConfigurationFull-range
Enclosure TypeOpen-back
Impedance8 Ω
Sensitivity85 dB
Frequency Response95 Hz to 40 kHz (-10 dB)
Power Handling30 W RMS • 90 W peak
Drivers & Connectivity
Full-Range Driver3.9" / 10 cm
InputBinding post pair
FinishWhite
GrilleMagnetic • paintable
Mounting & Physical
MountingIn-ceiling
Cutout Size4.8" / 122 mm
Cutout Depth3.1" / 78.7 mm
Surface Thickness0.2–1.2" / 5–30 mm
Dimensions (each)5.9" × 3.4" (150 × 86.5 mm)
Weight (each)1.8 lb / 0.8 kg (with grille)
UPC027108938059

What’s in the Box

🔊

Yamaha NS-IC400 4" Full-Range In-Ceiling Speakers (White)

Discreet full-range ceiling speakers with magnetic paintable grilles (pair)

🧲
Magnetic Grilles

2 × paintable, magnetic grilles for a clean, screw-free finish

📐
Cutout Template

Template included for faster, more accurate ceiling prep

🛡️
Warranty

Limited 2-Year Manufacturer Warranty

Discreet Ceiling Audio with a Premium, Screw-Free Finish

The Yamaha NS-IC400 pair is engineered for elegant, low-visibility installs—delivering cohesive full-range performance, extended high-frequency detail, and smooth dispersion in a compact footprint. With magnetic paintable grilles and a slim flush-mount profile, it’s a luxury-forward solution for background music zones and refined architectural audio.

Pair system 4" full-range 30W RMS Magnetic grille 40 kHz
