Product Details

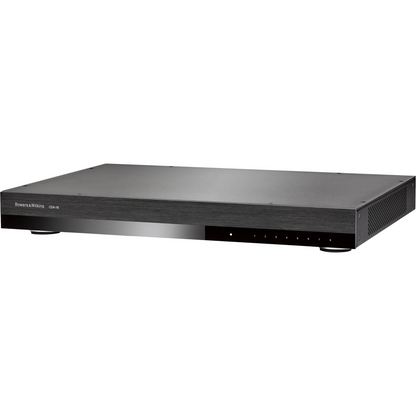

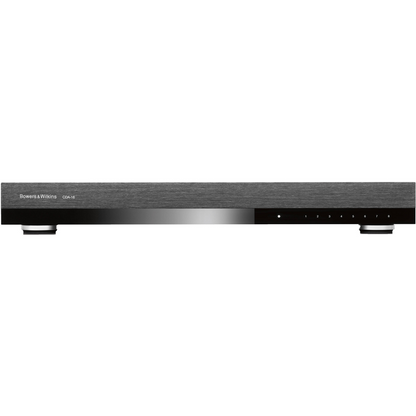

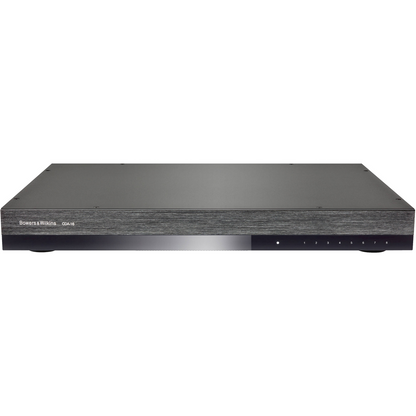

Power your entire home with exceptional audio from the Bowers & Wilkins CDA-16 16-Channel 8 Zone Distribution Amplifier. This compact powerhouse fits 16 channels of high-performance Class D amplification into a single 1U rack space, delivering up to 50W per channel at 8 ohms—or 100W at 4 ohms—across eight audio zones. With flexible bridging options, signal-sensing, and 12V trigger integration, the CDA-16 is the ideal multi-room solution for custom Bowers & Wilkins installations.
Key Features
- 16 Channels, 8 Zones: Drives up to 16 speakers (8 stereo pairs) for whole-home or commercial audio systems.
- Class D Efficiency: Delivers 50W per channel at 8Ω, or 100W at 4Ω, with minimal heat and maximum reliability.
- Bridgeable Flexibility: Bridge stereo pairs for up to 8 channels of 100W mono power where extra output is needed.

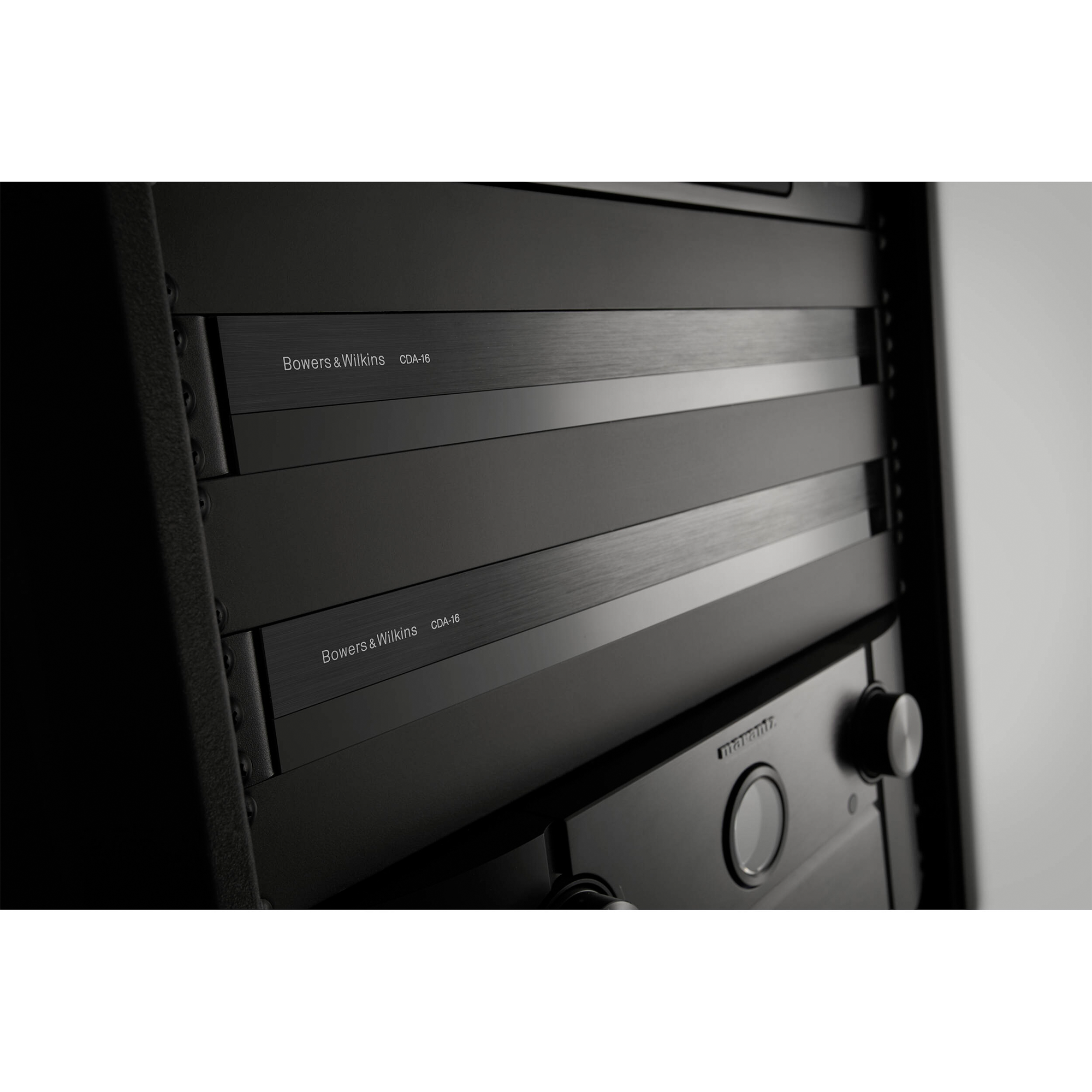

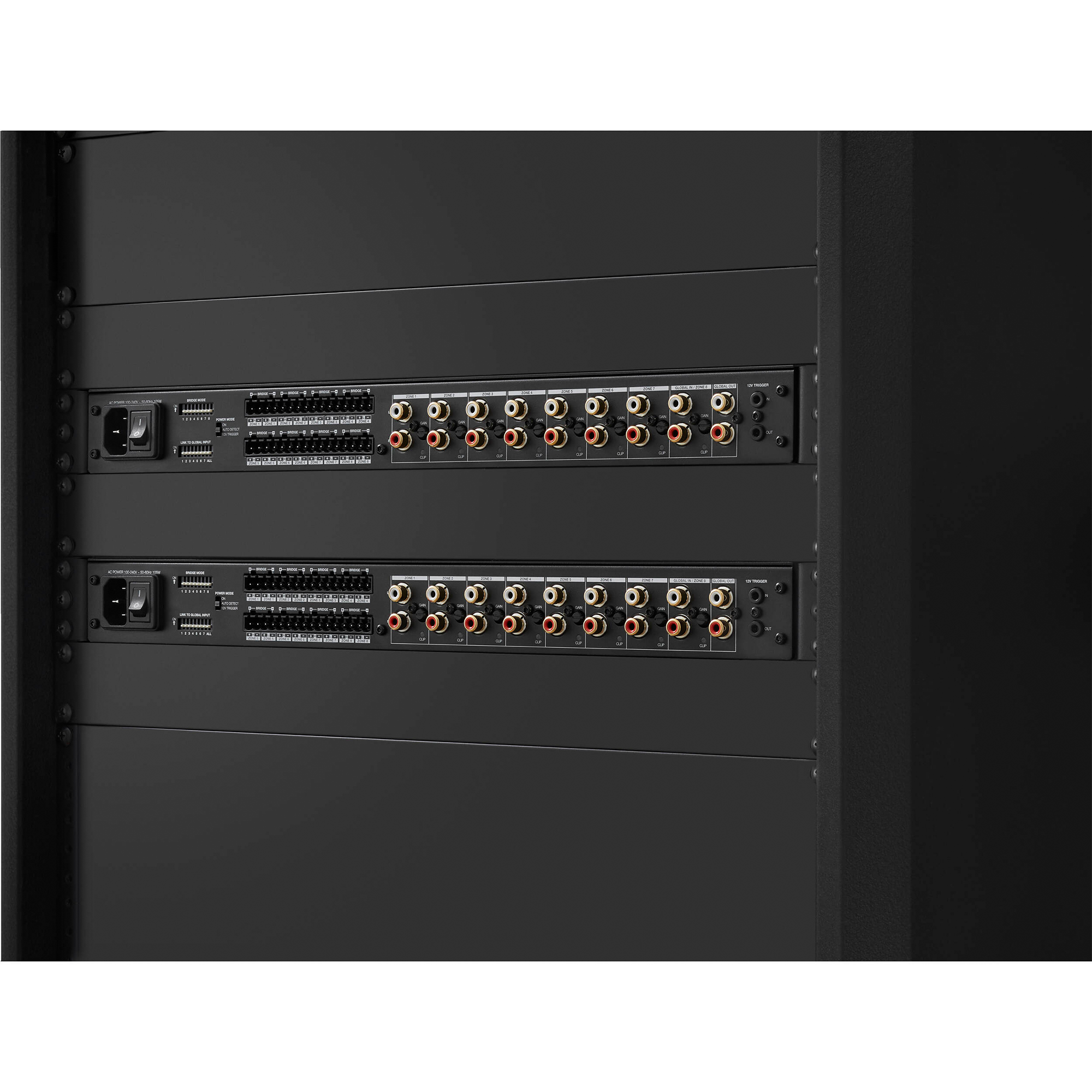

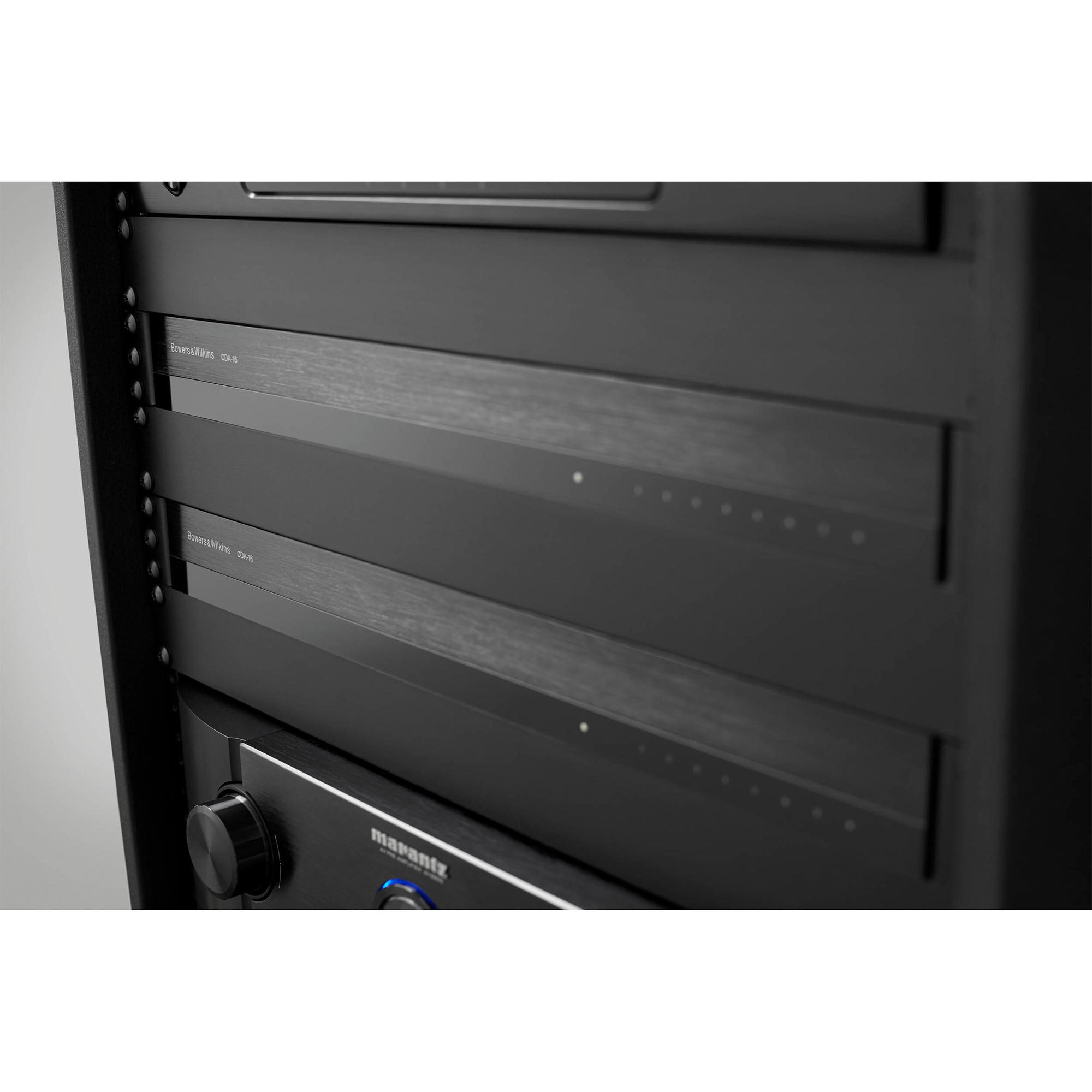

- Ultra-Compact 1U Design: High power, minimal rack space—perfect for large projects and custom installs.
- Signal-Sensing Power: Automatic power on/off conserves energy and integrates easily with smart home systems.
- 12V Trigger In/Out: Seamless control with home automation or other system components.
- 8 RCA Line Inputs: Flexible connectivity for up to eight unique audio sources.
- Global RCA Out: Distribute the same source to multiple zones when needed.
- Engineered for B&W: Designed to maximize the performance of all Bowers & Wilkins Custom Installation loudspeakers.
Ideal For
- Custom Whole-Home Audio: Distribute music to every room—perfect for high-end homes, hotels, or offices.
- Commercial Spaces: Restaurants, gyms, retail, or hospitality venues requiring multi-zone music.

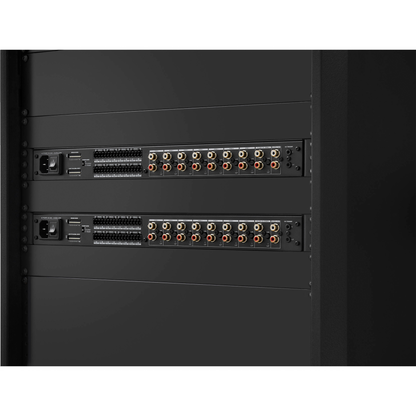

- Integrator-Ready: Rack-mountable with included hardware, and easily automated via 12V triggers.
- Bowers & Wilkins Installations: Optimized for seamless performance with B&W in-wall and in-ceiling speakers.
What’s In The Box
- Bowers & Wilkins CDA-16 16-Channel 8 Zone Distribution Amplifier
- Power Cord

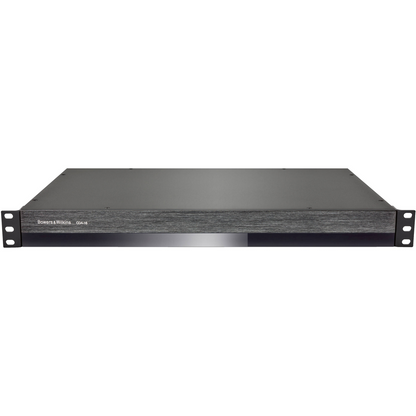

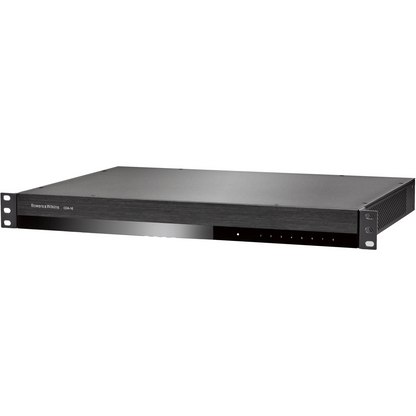

- 2 x Rack Ears with Screws
- 4 x Rubber Feet with Screws
- 8 x Speaker Wire Phoenix Adapter
- Limited 2-Year Manufacturer Warranty
Technical Specifications
| Channels | 16.0 (8 stereo zones, bridgeable to 8 mono) |
|---|---|
| Power Output | 50 W at 8Ω | 100 W at 4Ω per channel (bridgeable) |
| Amplifier Class | Class-D |
| Frequency Response | 10 Hz – 50 kHz (-3 dB) |
| THD+N | 0.05% (1 kHz, 4Ω) |
| Inputs | 8 x Stereo RCA Line |

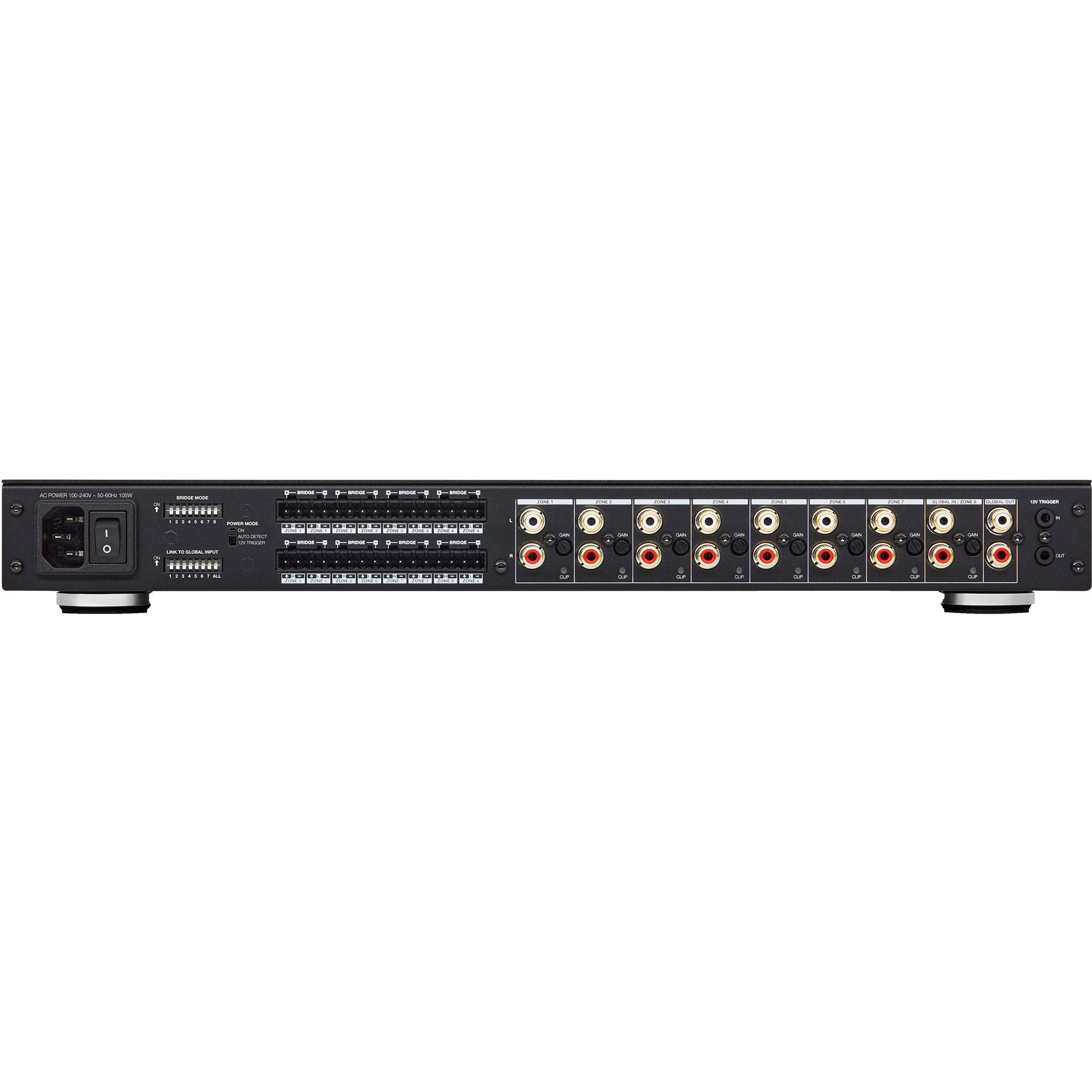

| Outputs | 8 x 4-conductor Phoenix speaker block 1 x Stereo RCA Global Out |
| Triggers | 12V Trigger In/Out (3.5 mm) |
| Signal to Noise Ratio | >100 dB (A-weighted) |
| Power Consumption | Active: 300 W | Max: 1000 W | Standby: 0.5 W |
| Dimensions (W x H x D) | 17.2 x 1.8 x 12.2 in (no feet) / 437 x 44.5 x 310 mm |
| Weight | 9.9 lb / 4.5 kg |
| Warranty | 2 Years (Limited) |
