Product Details

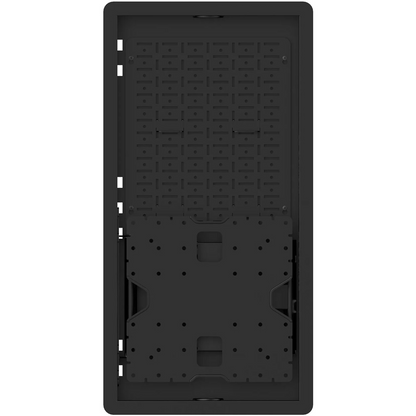

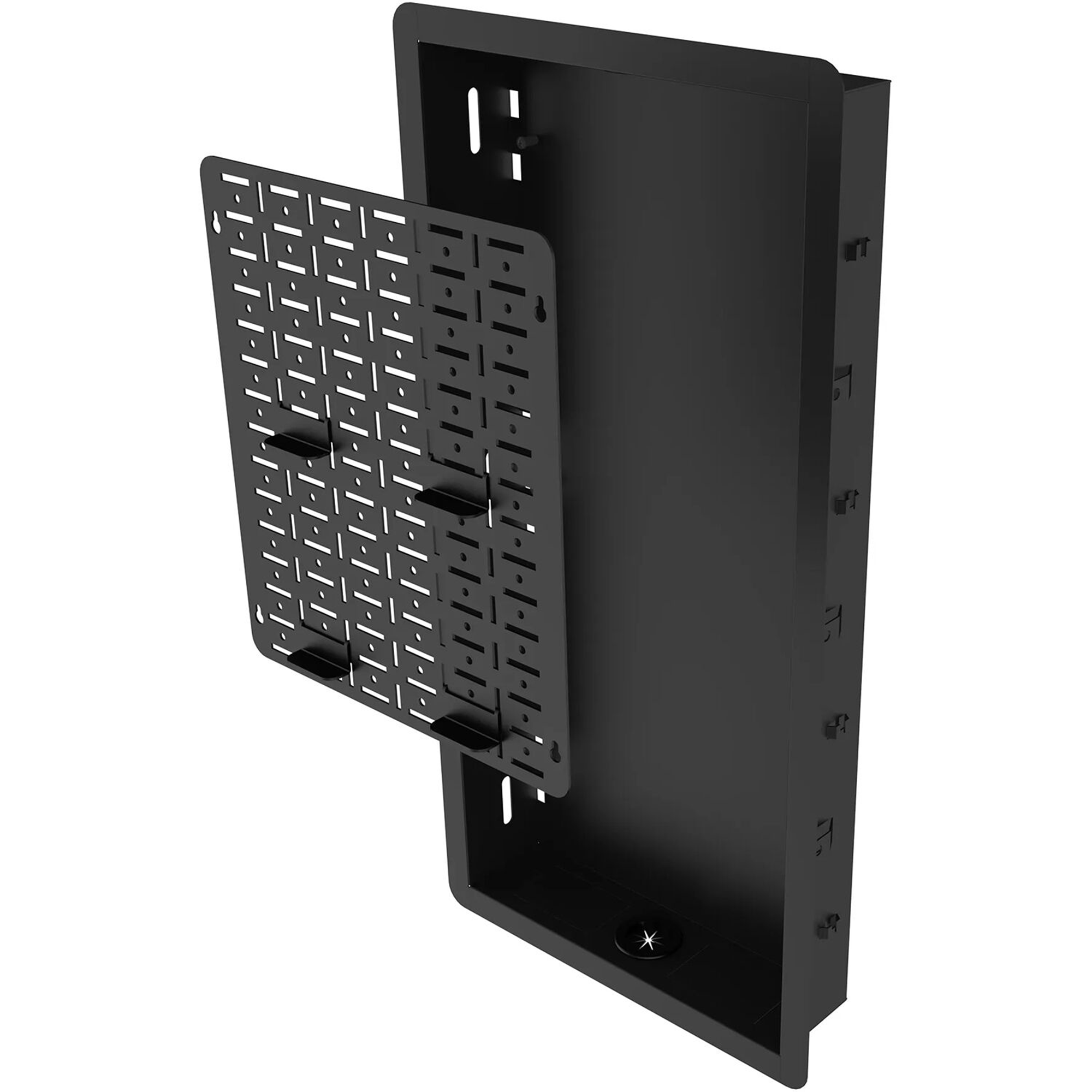

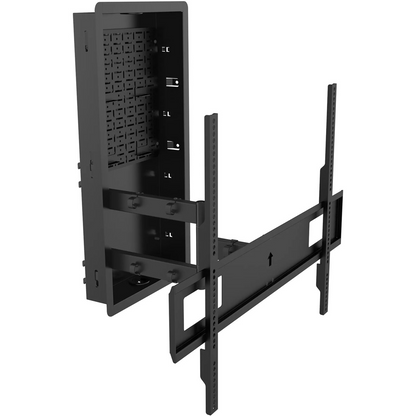

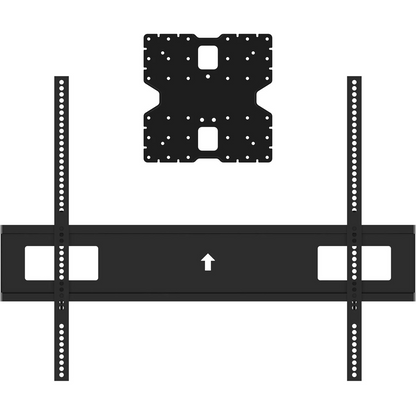

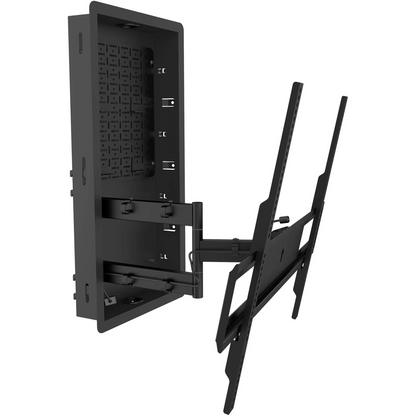

The Kanto Living R600 Recessed In-Wall Articulating Mount is built for large-screen installations, supporting 65″ to 90″ TVs weighing up to 135 lb. Its oversized in-wall box design keeps the mount and cables hidden for a flush, streamlined look, while also providing storage space for AV equipment like streaming players or set-top boxes. With ±90° swivel, −2° to +10° tilt, and an extension of 18.7″ from the wall, the R600 ensures perfect placement, effortless adjustments, and a clean, professional finish.

Key Features

  • Fits most 65″ to 90″ displays up to 135 lb.

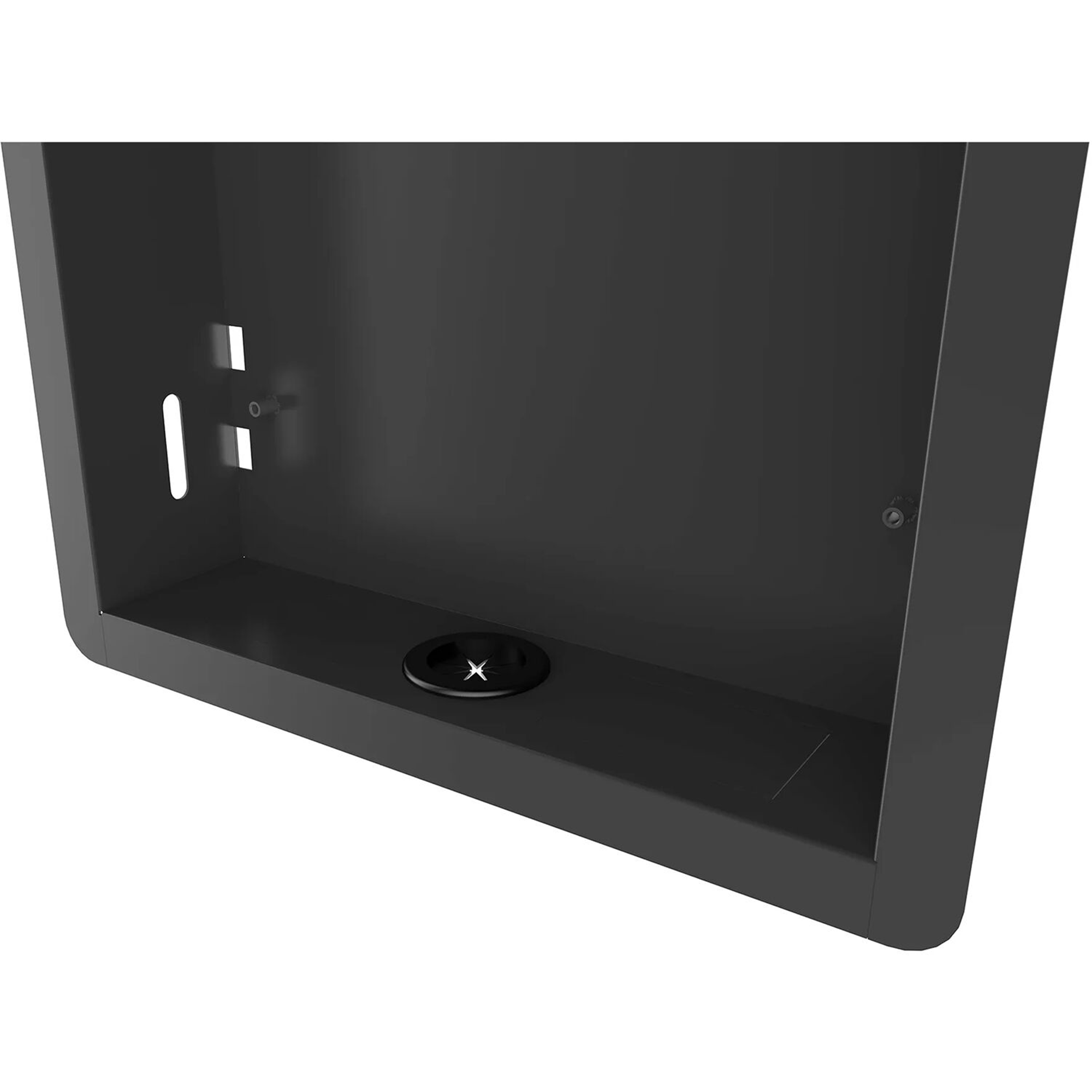

  • Oversized in-wall box accommodates AV components and breakout boxes.
  • Recessed installation keeps TV flush or nearly flush to the wall.
  • +10° to −2° tilt and ±90° swivel for optimal viewing.
  • Extends up to 18.7″ from the wall for maximum positioning flexibility.
  • Knockouts for installing power outlets inside the box.
  • Integrated cable management with clips and grommets for a clean setup.

What’s In The Box

  • Kanto Living R600 Recessed In-Wall Articulating Mount for 65″ to 90″ TVs
  • Drywall template
  • In-wall installation template
  • Hardware kit
  • Limited 10-Year Manufacturer Warranty

Specifications

Compatibility

Screen Size 65″–90″
Max Load 135 lb / 61.2 kg
VESA Patterns 100 × 100 to 800 × 600 mm
Stud Spacing 16″ centers

Adjustments

Tilt −2° to +10°
Swivel ±90°
Extension 0″ to 18.7″ (0 to 47.5 cm)
Orientation Landscape
Leveling Horizontal leveling adjustment

Construction & Dimensions

Material Powder-coated steel
Wall Plate Dimensions 32 × 16.3 × 3.7″ (81.3 × 41.3 × 9.3 cm)
Collapsed Dimensions 33.5 × 32 × 4.7″ (85 × 81.3 × 11.9 cm)
Weight 45.2 lb (20.5 kg)
Color Black
