Intel Core 7 150U
10-core CPU (2P + 8E) with P-core turbo to 5.4 GHz for responsive single-thread performance and efficient background processing.
MSI Cubi NUC 1M-009BUS Mini Desktop Barebone System
$709.00
CUBINUC1M009B
In stock, ready to ship
Pairs well with
MSI Cubi NUC 1M-009BUS Mini Desktop Barebone System
$709.00
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Get Answers to All Your Shipping Questions with our Expert Help Center
-
Customer Support
Get Reliable and Efficient Customer Support at Every Step of Your Purchase Process.
-
FAQ’s
Unlock Answers to All Your Questions with our Comprehensive FAQ Section.
-
Contact Us
Get in Touch Effortlessly Through Chat, Email, or Phone - We're Here to Help!
See Innovation in Action
Watch as advanced features, intuitive design, and exceptional performance come together in real time.
Experience Innovation, Performance & Style in Every Detail.
Product Details

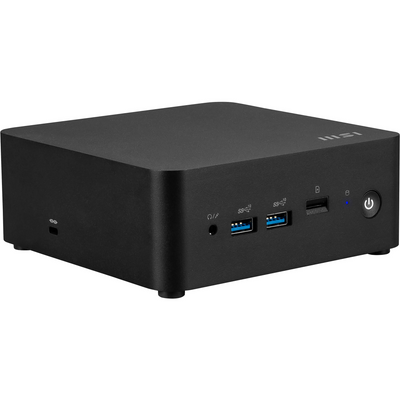

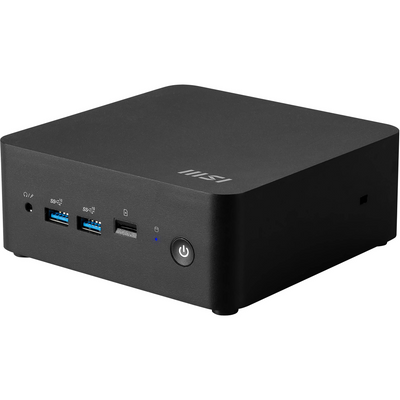

MSI Cubi NUC 1M-009BUS Mini Desktop Barebone System
Space-efficient barebone engineered for flexible business deployments: Intel Core 7 150U (10-core), dual Thunderbolt 4, dual HDMI, dual 2.5G LAN and support for up to 64GB DDR5 across two SO-DIMM slots in a VESA-capable micro chassis.
Balanced single-thread peak performance and multi-thread efficiency in a compact 135 × 132.6 × 50 mm footprint — ideal for multi-monitor workstations, kiosks and dense desktop rollouts.
Executive Summary
Core Capabilities
Technical Specs
Micro-Form Factor with Expandable Storage and Modern I/O
The MSI Cubi NUC 1M-009BUS delivers a compact, configurable platform for business-class desktops. Powered by the Intel Core 7 150U (10-core) — with two high-frequency Performance cores capable of up to 5.4 GHz and eight Efficiency cores for background throughput — the system balances responsiveness with multi-thread efficiency. Dual Thunderbolt 4, twin HDMI outputs and dual 2.5G Ethernet provide a rich connectivity fabric, while support for up to 64GB DDR5 (2× SO-DIMM), an M.2 NVMe slot and a 2.5" bay enable flexible storage and memory configurations for diverse deployment profiles.
High-Frequency Performance
2 P-cores tuned for peak single-thread performance (up to 5.4 GHz) while 8 E-cores maintain background throughput.
Versatile I/O

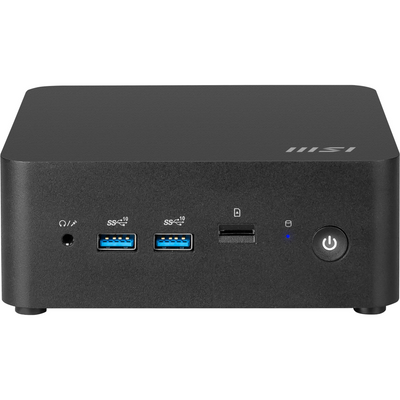

Dual TB4, four USB-A 3.x ports, dual HDMI and front microSD make media, storage and peripheral workflows seamless.
Flexible Storage & Memory
M.2 NVMe plus 2.5" bay and two DDR5 SO-DIMM slots support balanced capacity and performance upgrades.
10-Core
Intel Core 7 150U
1.8 → 5.4 GHz (P-cores)
64 GB
Max Memory
2× DDR5-5200 SO-DIMM
2× TB4
Thunderbolt 4
40 Gb/s, single-cable docking
2× LAN
2.5G Ethernet
Dual RJ45 for resilient wired connectivity
Core Capabilities — Connectivity, Display & Deployment
Thermal and CPU Profile
Intel Core 7 150U employs a heterogeneous 2P/8E core configuration delivering high turbo frequencies for interactive workloads and efficient background processing. Thermal tuning supports sustained bursts in the compact chassis for reliable desktop performance.
Thunderbolt 4 & Display Flexibility
Dual Thunderbolt 4 ports provide 40 Gb/s bandwidth, USB4 interoperability and DP Alt Mode for high-resolution displays. Combined with two HDMI outputs, the platform supports up to four displays for multitasking and digital signage scenarios.
Network & Wireless
Dual 2.5 GbE delivers low-latency wired performance for office and edge deployments. Wi-Fi 6E (802.11ax) extends wireless capacity into the 6 GHz band for less congested throughput and lower contention on high-density networks.
Storage Topology
Primary M.2 NVMe slot (2280) and a 2.5" bay provide a balanced storage topology to combine ultrafast NVMe performance with higher-capacity SATA drives for mixed workloads.
Deployment & Mounting

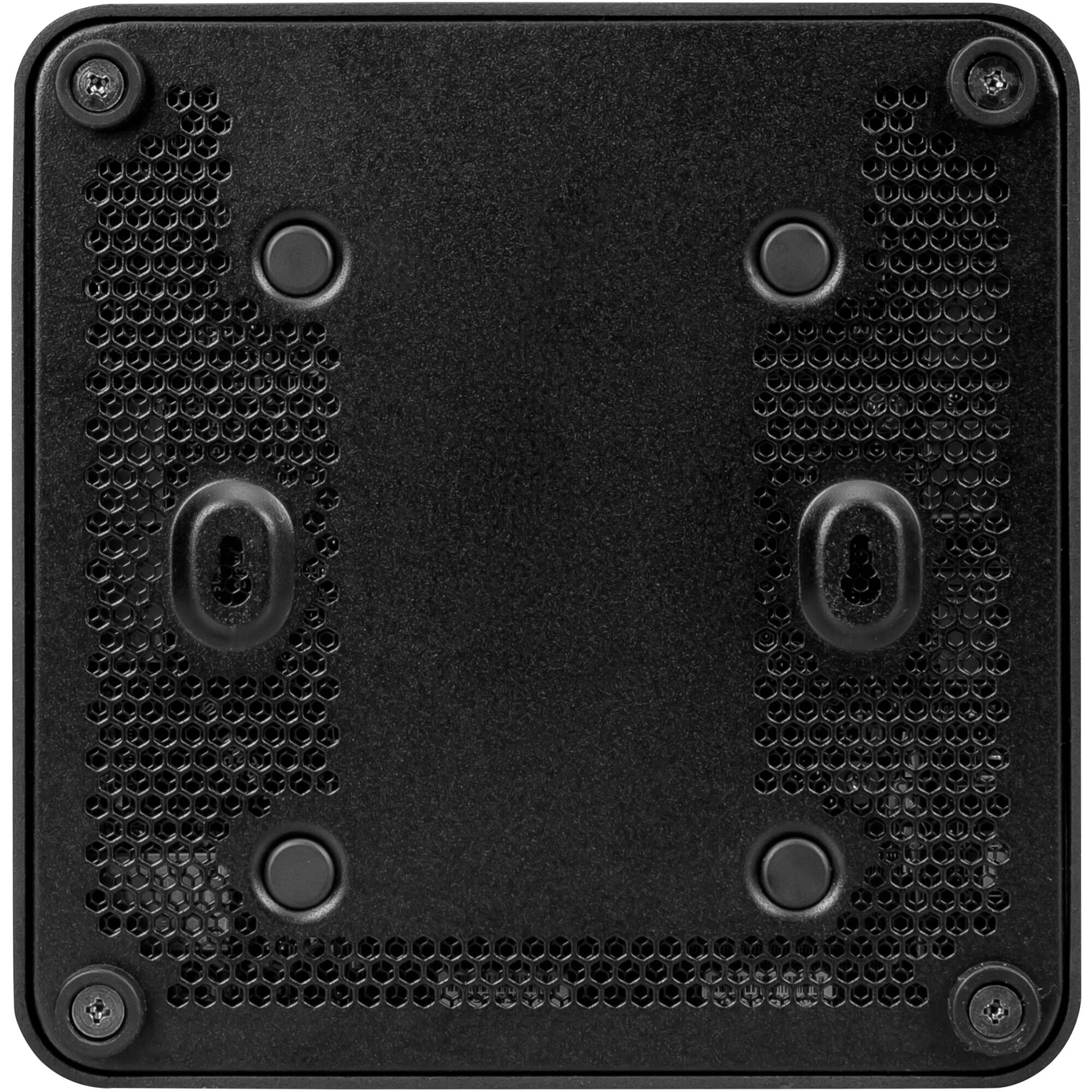

Compact footprint with support for VESA 100 × 100 mm mounting (bracket sold separately) enables behind-monitor and under-desk placement to maximize desk real estate and simplify rollouts.
Key Features
Memory & Storage
Two DDR5-5200 SO-DIMM slots (up to 64GB), M.2 2280 NVMe slot and 2.5" bay for flexible capacity and performance combinations.
Extensive I/O

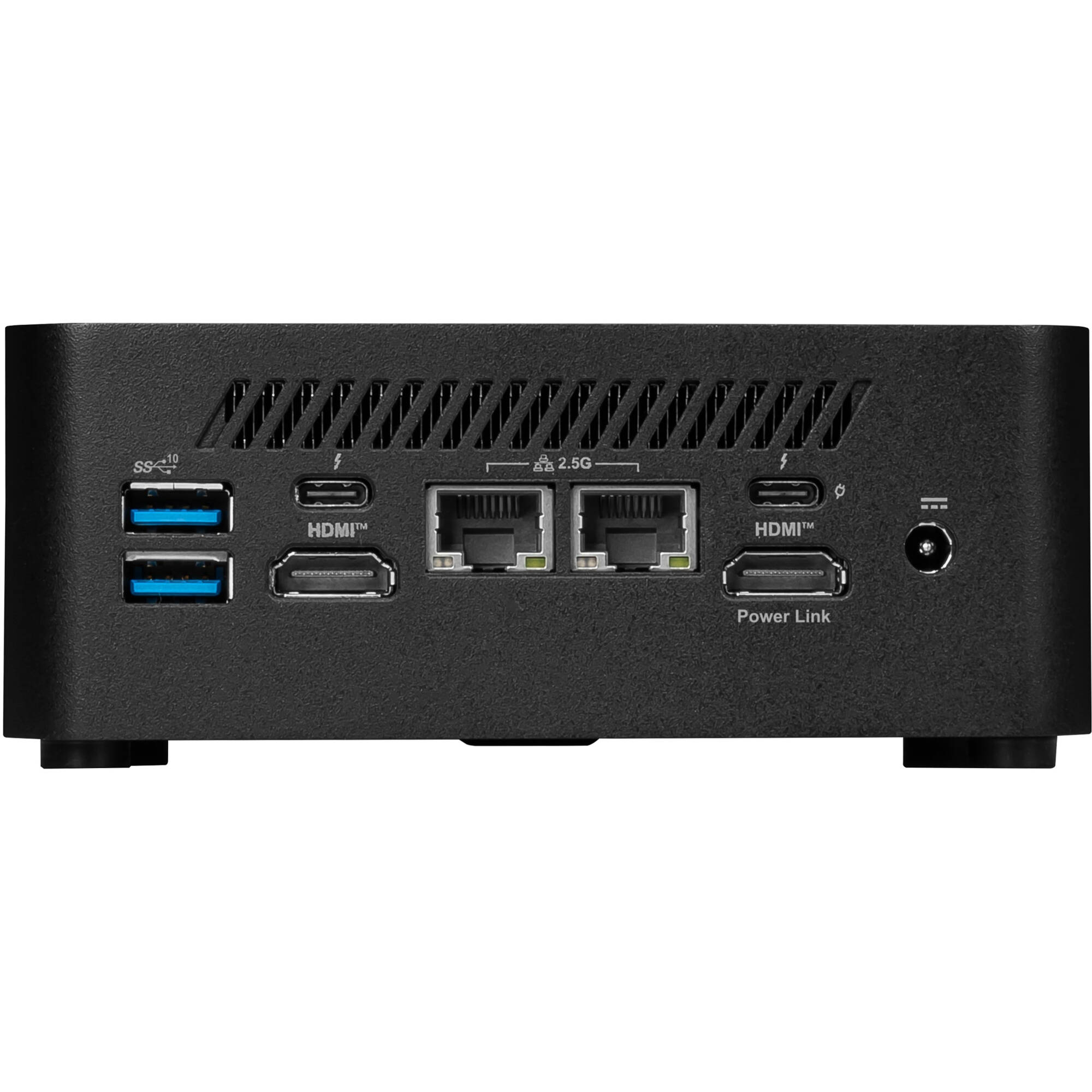

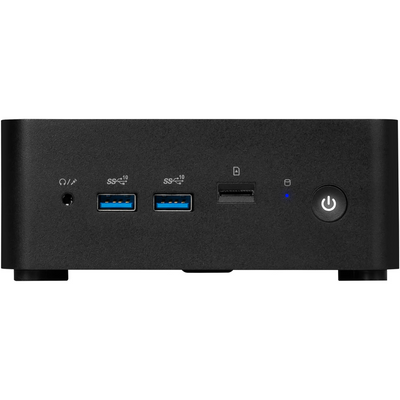

2× Thunderbolt 4, 4× USB-A 3.x, front microSD and dual HDMI deliver versatile connectivity for peripherals and displays.
Networking
Dual 2.5 GbE for robust wired links and Wi-Fi 6E for high-bandwidth wireless in dense environments.
Multi-Display
Dual HDMI + 2× TB4 (DP Alt Mode) support up to four displays for productivity and signage.
VESA & Deployment
Small form factor with VESA mount compatibility for space-optimized installations.
Technical Specifications
Processor & Performance
CPUIntel Core 7 150U (10-core)
Cores2 Performance + 8 Efficiency
ClockP-cores: 1.8 → 5.4 GHz
L3 Cache12 MB
Dedicated AI CoresNo
Memory & Storage
Memory TypeDDR5-5200 SO-DIMM
Memory Capacity2 slots — up to 64 GB (user-supplied)
M.2 Slot1× M.2 2280 PCIe NVMe
2.5" Bay1× 2.5" SATA (available)
Graphics & Display
Integrated GPUIntel Integrated Graphics
Display I/O2× HDMI; TB4 (DP Alt Mode) via 2× Thunderbolt 4 — up to 4 displays
Audio3.5 mm combo jack
I/O & Networking
Thunderbolt2× Thunderbolt 4 (40 Gb/s)
USB4× USB-A 3.1/3.2 Gen 2; additional USB-A 2.0 ports as specified
Card ReaderFront microSD slot
Ethernet2× RJ45 2.5 GbE
WirelessWi-Fi 6E (802.11ax); Bluetooth 5.3
Power, Mechanical & Compliance
Power Supply120 W (barrel/proprietary)
VESA MountSupports 100 × 100 mm (bracket sold separately)
Dimensions135.64 × 132.59 × 50.04 mm (5.34 × 5.22 × 1.97")
Weight1.38 lb / 0.63 kg
Package Contents
MSI Cubi NUC 1M-009BUS — Mini Desktop Barebone System
Barebone system requires user-installed memory, storage and OS. Includes 120 W power adapter.
120W Power Adapter
Barrel/proprietary connector
Documentation
Quick start guide & regulatory information
Warranty
Limited 3-Year Manufacturer Warranty
Deployable Micro-Desktop — Configurable, Connected, and Capable
The MSI Cubi NUC 1M-009BUS is a compact, configurable platform that combines high-frequency CPU performance, modern I/O and flexible storage options for business deployments. Its dual TB4 and HDMI outputs, combined with dual 2.5G LAN and Wi-Fi 6E, make it an ideal choice for multi-display workstations, kiosks and dense rollouts requiring low footprint and high connectivity.
OS Ready. Barebone configuration ships without OS or user memory/storage installed. UPC: 824142367506
Limited 3-Year Warranty VESA Ready Dual 2.5G Ethernet
Included in the Box
