Product Details

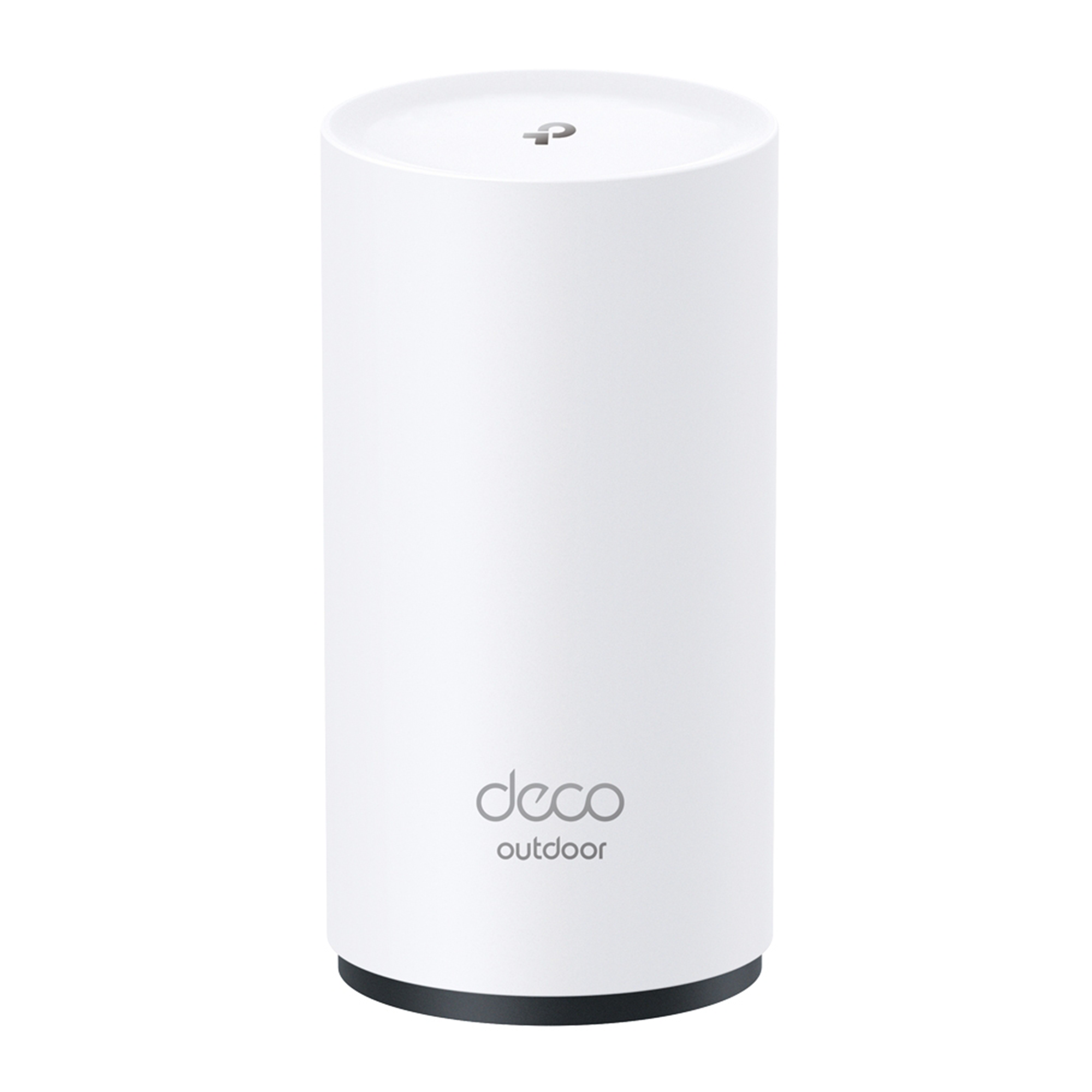

Take your Wi-Fi beyond the walls with the TP-Link Deco X20-Outdoor AX1800 Dual-Band Mesh Wi-Fi Module. Engineered for patios, poolsides, and outdoor dining spaces, this rugged module combines Wi-Fi 6 performance with an IP65-rated weather-resistant enclosure. Delivering up to 1774 Mb/s throughput and 2200 sq. ft. coverage, Deco X20-Outdoor extends your mesh seamlessly for 4K streaming, gaming, and smooth browsing in open-air environments. With versatile mounting options, PoE+ support, and TP-Link’s HomeShield security, it’s the perfect solution for extending high-speed, reliable coverage indoors and outdoors.
Key Features:
- Wi-Fi 6 AX1800: Dual-band throughput up to 1774 Mb/s (1200 Mb/s @ 5 GHz + 574 Mb/s @ 2.4 GHz).
- IP65 Weather-Resistant: Dustproof and water-resistant housing built for outdoor use.

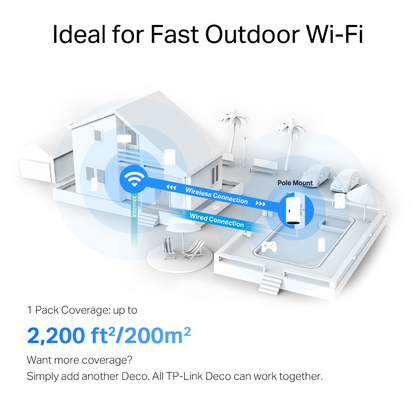

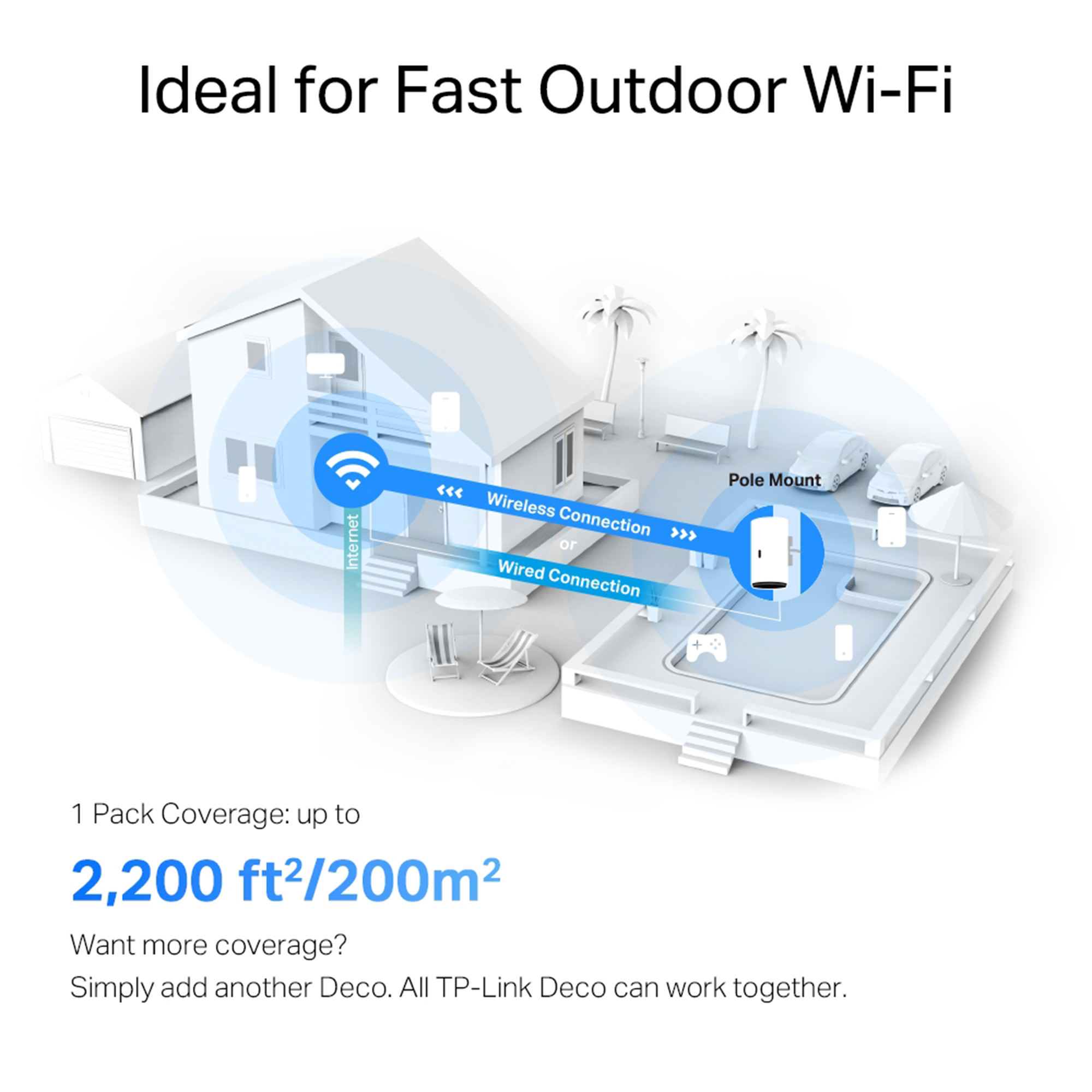

- Extended Coverage: Up to 2200 sq. ft. per unit for patios, gardens, and poolside areas.
- 2 × Gigabit PoE+ Ports: Auto-sensing WAN/LAN for flexible wired and wireless backhaul.

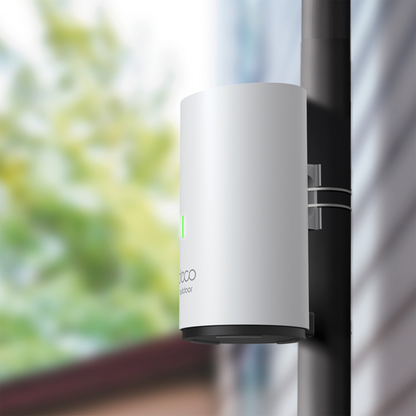

- Multiple Mounting Options: Wall, pole, or tabletop installation for maximum versatility.
- TP-Link HomeShield: Network protection, parental controls, and real-time IoT defense.

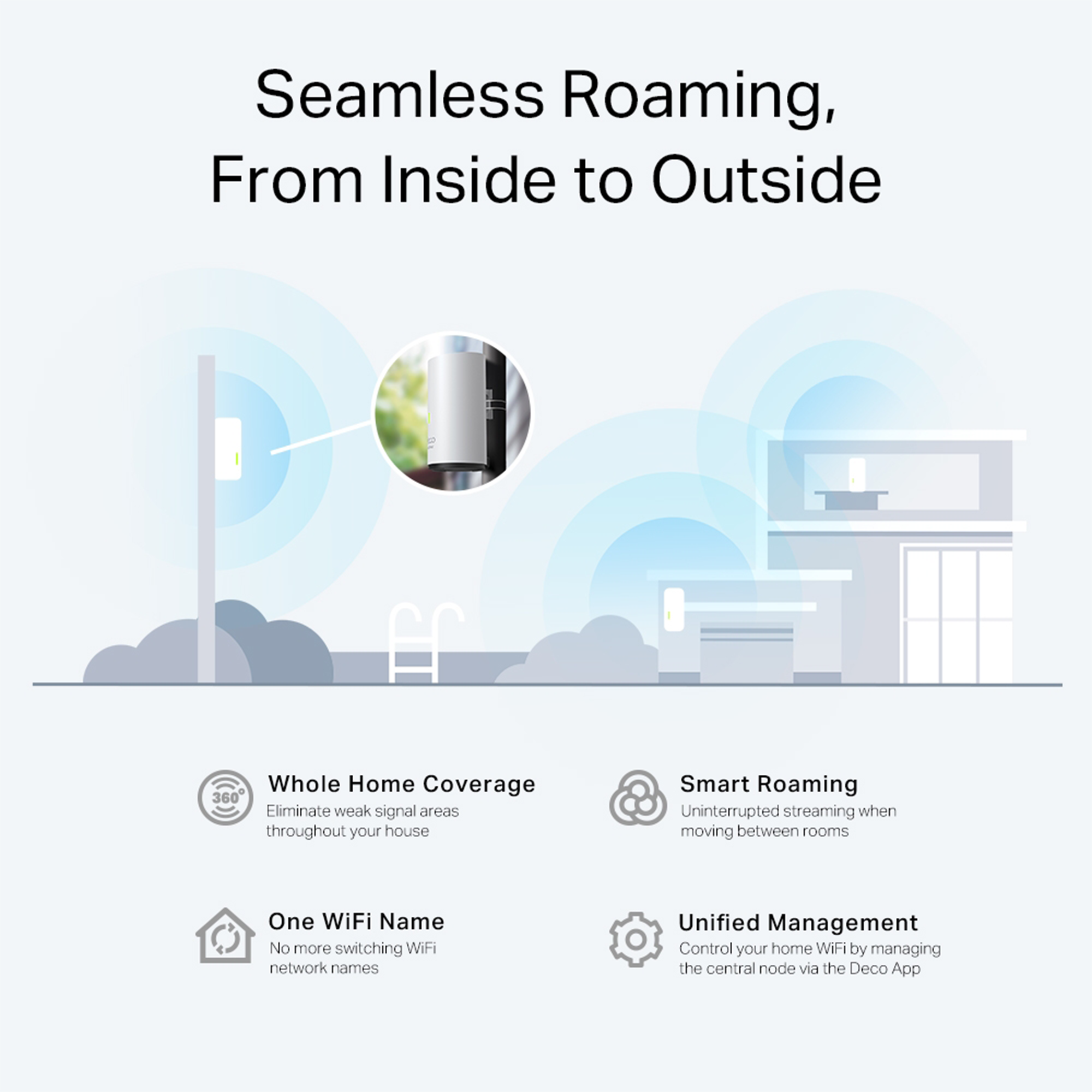

- AI-Driven Mesh: Learns your environment to optimize roaming and reduce dead zones.
- Deco Ecosystem: Fully compatible with all Deco models to expand your existing mesh.
Included In The Box:
- TP-Link Deco X20-Outdoor AX1800 Wireless Dual-Band Gigabit Mesh Wi-Fi Module
- Power Cable
- RJ45 Ethernet Cable
- Wall & Pole Mounting Kit
- Installation Guide
- Limited 2-Year Manufacturer Warranty
Technical Specifications:
| Wireless Standard | Wi-Fi 6 (802.11ax) |
|---|---|
| Frequency Bands | Dual-Band (2.4 GHz: 574 Mb/s, 5 GHz: 1200 Mb/s) |
| Coverage | Up to 2200 sq. ft. |
| Antennas | 2 × Internal Omnidirectional |
| MU-MIMO / OFDMA | Yes |
| Ethernet Ports | 2 × Gigabit WAN/LAN (PoE+ supported) |

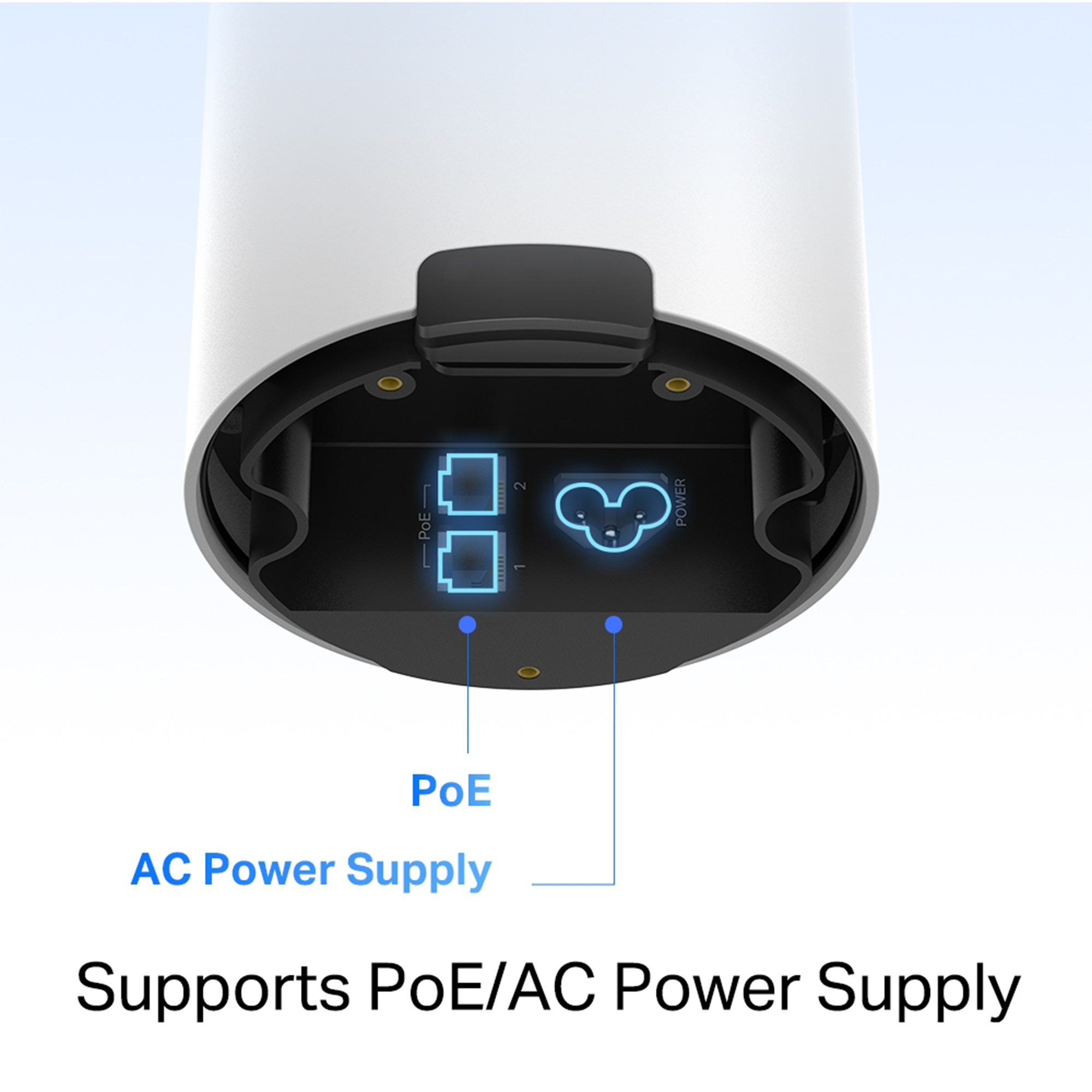

| Power Options | IEEE 802.3at PoE+ or AC 100–240V ~ 50/60Hz, 0.5A |
| Operating Modes | Router, Access Point |
| Security | WPA/WPA2/WPA3, SPI Firewall, HomeShield (IoT protection, parental controls, malicious site blocking, DDoS prevention) |
| Guest Networks | 1 × 2.4 GHz, 1 × 5 GHz |
| Management | Deco App (Android & iOS) |
| Protocols | IPv4, IPv6, NAT Forwarding, IGMP Proxy/Snooping, VLAN Tagging, DDNS |
| QoS | HomeShield QoS (by device) |
| Environmental Rating | IP65 Dust & Water Resistant |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10%–90% RH |
| Storage Humidity | 5%–90% RH |
| Dimensions | 4.3 × 4.8 × 8.5 in (110 × 121.3 × 215.5 mm) |
| Certifications | CE, FCC, RoHS |
| Warranty | Limited 2-Year Manufacturer Warranty |
Featured Callouts:
- Outdoor-Ready Wi-Fi: Built for extreme weather with IP65 durability.
- Seamless Integration: Works with all Deco units for unified mesh.
- PoE+ Convenience: Data and power in one cable for cleaner installs.
- Parental Peace of Mind: Advanced HomeShield parental controls and reports.
