Product Details

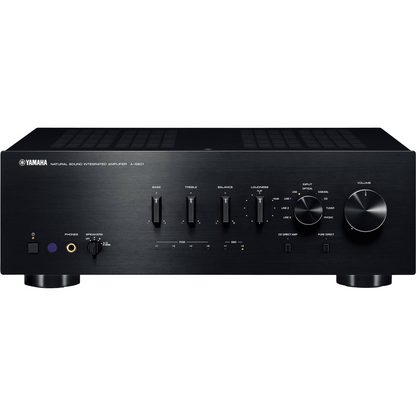

The Yamaha A-S801 Integrated Amplifier in Black combines advanced digital-to-analog conversion with high-fidelity analog amplification to deliver an exceptional audio experience. Powered by ToP-ART (Total Purity Audio Reproduction Technology) circuitry and featuring Pure Direct and CD Direct modes, it minimizes distortion for crystal-clear sound. Equipped with a 32-bit ESS Sabre Premier DAC supporting native DSD and high-resolution PCM audio, the A-S801 offers versatile digital and analog connectivity, including USB, optical, and coaxial inputs. Dual speaker outputs and a dedicated subwoofer terminal provide flexible system expansion. Its robust chassis with Anti-Resonance Technology and sleek black brushed aluminum front panel make it a refined centerpiece for any audiophile setup.
Key Features:
- 120W per Channel RMS Power at 6 Ohms
- 32-Bit ESS Sabre Premier Audio DAC with Native DSD (2.8 & 5.6 MHz) and PCM (384 kHz / 32-bit) Support
- USB, Optical, and Coaxial Digital Inputs
- Dual Stereo Speaker Outputs: A, B, or A+B Selection
- Pure Direct and CD Direct Modes for Highest Sound Purity
- Continuously Variable Loudness Control
- Gold-Plated Speaker and Input Terminals
- Reinforced Chassis with Anti-Resonance Technology for Vibration Reduction
- Phono MM Input for Turntable Connection
- Subwoofer Output for Enhanced Bass Response
- Energy Efficient Auto Power Standby
Features:
Engineered with Yamaha's renowned ToP-ART design, the A-S801 achieves superior audio purity by organizing left and right channels in a symmetrical layout to reduce noise and distortion. Its chassis features a double bottom plate with a 1mm iron layer, an ART base, and a solid center bar to minimize vibrations. The amplifier uses premium components like a custom power transformer, block capacitors, and direct signal path relays to ensure outstanding audio performance. The advanced USB DAC supports native DSD and high-resolution PCM files, employing a low-jitter Yamaha-developed USB driver for pristine playback quality. The Pure Direct and CD Direct modes allow the signal to bypass non-essential circuitry, preserving the original sound. The analog loudness control adjusts frequency balance to maintain tonal richness at any listening volume. Gold-plated terminals ensure optimal signal integrity, while dual speaker outputs provide multi-room or multi-speaker flexibility. The included remote and elegant black brushed aluminum design offer convenience and style.
Included In The Box:
- Yamaha A-S801 Integrated Amplifier (Black)

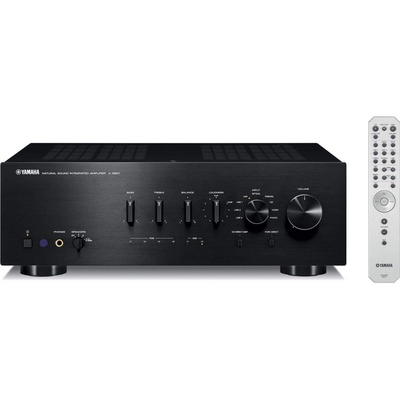

- Remote Control
- 2 x AA Batteries
- AC Power Cord
- Limited 2-Year Manufacturer Warranty
Technical Specifications:
| Specification | Details |
|---|---|
| Channels | 2.0 |
| Power Output per Channel | 120 W at 6 Ohms / 20 Hz to 20 kHz / 0.038% THD (RMS) 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.019% THD (RMS) |
| Dynamic Power per Channel | 140 W at 8 Ohms 170 W at 6 Ohms 220 W at 4 Ohms 290 W at 2 Ohms |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (Pure Direct Mode) 10 Hz to 100 kHz ±1 dB |
| Residual Output Noise | 40 µV (IHF-A) |
| Tone Control | Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB |
| Damping Factor | ≥ 240 (8 Ohms, 1 kHz) |
| Audio Processing | PCM via USB/Optical TOSLINK/Digital Coaxial DSD via USB |
| Supported Sample Rates | Up to 384 kHz (PCM) Up to 5.6 MHz (DSD) |
| DAC | 384 kHz / 32-Bit ESS Sabre Premier ES9010K2M |

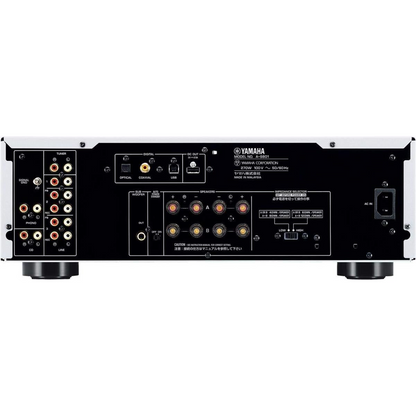

| Rear A/V Inputs | 5x Stereo RCA 1x Stereo RCA (Phono MM) with Ground Screw 1x Optical TOSLINK 1x Digital Coaxial |
| Rear A/V Outputs | 2x Stereo RCA 1x RCA Subwoofer |
| Front I/O | 1x 1/4" (6.35 mm) Headphone Output |
| Other Rear I/O | 1x USB-A (Power) |
| Speaker Outputs | 4x Binding Post Pair (Gold-Plated) |
| Input Impedance | Phono (MM): 47 kΩ Line: 47 kΩ |
| Input Sensitivity | Phono (MM): 3 mV Line: 200 mV |
| Max Input Level | Phono (MM): ≥ 45 mV (1 kHz / 0.03% THD) Line: ≥ 2.2 V (1 kHz / 0.03% THD) |
| Phono RIAA EQ Deviation | ±0.5 dB |
| Rated Output / Impedance | Headphone: 470 mV / 470 Ω Line: 200 mV / 1 kΩ Subwoofer: 3.5 V / 1.2 kΩ |
| Signal to Noise Ratio | Phono (MM): ≥ 82 dB (Input Shorted) Line: ≥ 99 dB (Input Shorted / Direct Mode) |
| Total Harmonic Distortion (THD) | Phono (MM) to Line Out: ≤ 0.03% (20 Hz to 20 kHz / 2.5 V Input) Line to Speaker Out: ≤ 0.019% (20 Hz to 20 kHz / 45 W Output / 8 Ω) |
| Channel Separation | ≥ 65 dB (1 kHz) ≥ 50 dB (10 kHz) |
| Wireless Connectivity | None |
| Power Consumption | Active: 270 W Standby: 0.5 W |
| Dimensions (W x H x D) | 17.1 x 6.0 x 15.2" / 43.5 x 15.2 x 38.7 cm |
| Weight | 26.7 lb / 12.1 kg |
| Warranty | Limited 2-Year Manufacturer Warranty |
